Product Overview

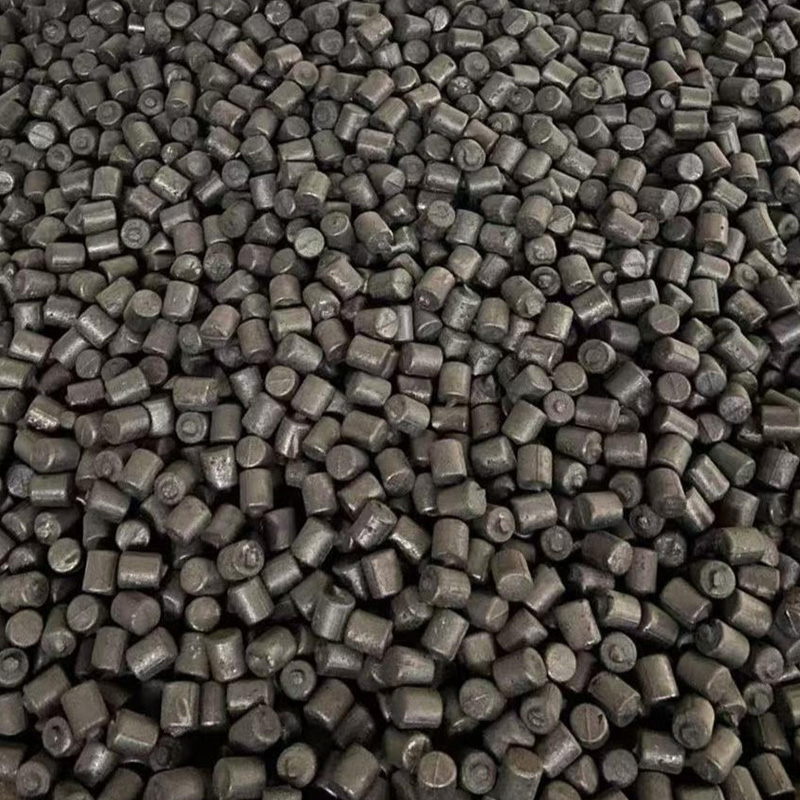

10–50mm High-Efficiency Grinding Cylpebs are precision-engineered cylindrical grinding media specifically designed for ball mills, delivering superior comminution performance across mining, cement, chemical, and power generation industries. Manufactured via advanced metal mold casting followed by strict oil quenching heat treatment, these cylpebs feature a uniform, fine-grained microstructure that enhances both wear resistance and energy transfer efficiency, outperforming traditional grinding media in harsh industrial environments.
Unlike traditional spherical grinding balls, the unique cylindrical shape of cylpebs significantly increases the contact area with processed materials, boosting grinding efficiency while reducing energy consumption by minimizing wasted kinetic energy. Suitable for both wet and dry grinding processes, they maintain stable gradation during long-term operation, minimizing unplanned downtime for media replenishment. With strict dimensional control and premium high-chrome alloy composition, our cylpebs provide a cost-effective, high-performance alternative to conventional grinding media, helping industrial operators optimize operational costs and productivity.

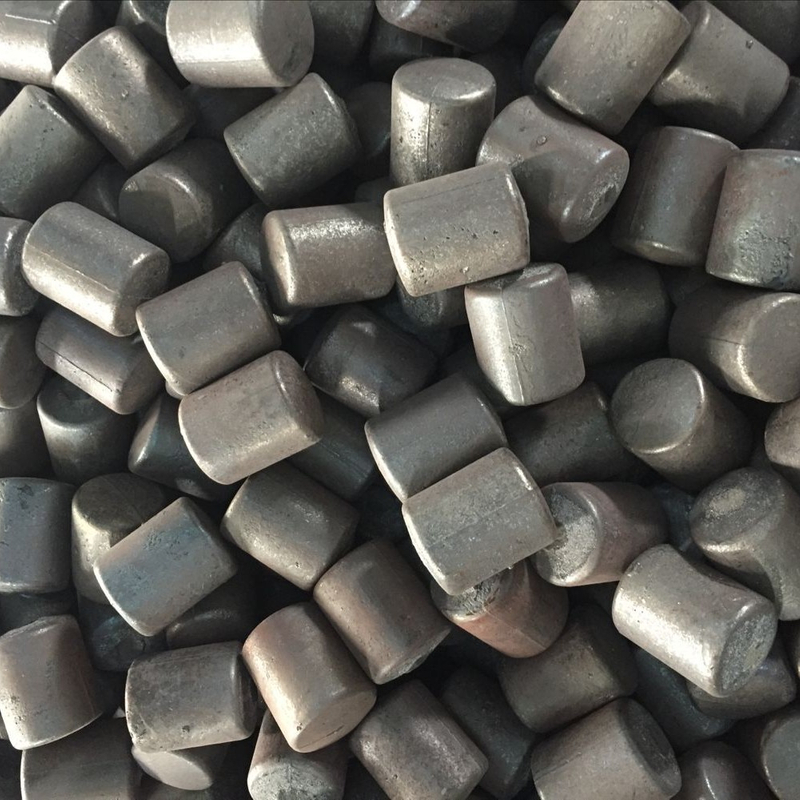

![Grinding Cylpebs1]( "Grinding Cylpebs1")
Product Features
Material & Craftsmanship Advantages
High-Chrome Alloy Composition
Our cylpebs are manufactured from premium high-chrome cast iron with an optimized carbide distribution, carefully formulated to enhance wear resistance and structural stability. This specialized composition achieves a surface hardness of HRC 58–63, making them more than twice as wear-resistant as conventional low-chrome media. The uniform carbide structure ensures consistent wear performance throughout the entire service life, avoiding irregular degradation that disrupts grinding efficiency.
Precision Heat Treatment
The combination of metal mold rapid cooling and precise oil quenching creates a fine-grained martensitic matrix, optimizing both hardness and toughness. This rigorous heat treatment process ensures an impact toughness of ≥4.0 J/cm² and an extremely low crushing rate of ≤0.3%, preventing premature breakage even in high-impact grinding environments, thus reducing media loss and maintenance frequency.
Performance Breakthroughs
Efficient Energy Transfer
The cylindrical geometry of cylpebs significantly improves contact efficiency between grinding media and material particles. Compared to spherical media, the impact kinetic energy conversion rate increases from 65% to 82%, meaning more of the mill’s energy is used for effective comminution rather than being lost as heat or noise, directly reducing energy consumption and operational costs.
Stable Gradation Maintenance
Strict dimensional control with a diameter tolerance of ±0.5 mm ensures that cylpebs maintain an optimal particle size distribution over extended operation periods. This uniformity extends ball replenishment cycles by 30%, reducing both media consumption and mill downtime, while ensuring consistent grinding quality and product fineness.
Low Environmental Impact
The smooth surface design of our cylpebs reduces grinding dust emission by 15% and lowers mill noise by approximately 8 dB compared to conventional media. This not only contributes to a cleaner, safer working environment but also helps operations meet increasingly stringent environmental regulations, reducing compliance costs.
Technical Parameters
Dimensional Specifications
Size Range: 10mm-50mm (customizable in 5mm increments)
Diameter Tolerance: ±0.5mm
Length-Diameter Ratio: 1.0-1.2 (optimized for ball mill rotation)
Material & Mechanical Properties
Parameter | High-Chrome Alloy Grade | Low-Chrome Alloy Grade |
Surface Hardness | HRC 58-63 | HRC 45-50 |
Impact Toughness | ≥4.0J/cm² | ≥2.5J/cm² |
Volume Wear Rate | ≤15g/ton | ≤35g/ton |
Bulk Density | 4.5-4.8g/cm³ | 4.2-4.5g/cm³ |
Packaging Standards
Steel Drum: Net weight 850-900kg/drum, gross weight 867-917kg/drum
Bulk Bag: Net weight 1000kg/bag, with moisture-proof inner lining
Applications
Mining Industry
Iron Ore Processing
In large ball mills such as Φ8.5×4 m units, high-chrome cylpebs reduce the cost per ton of ore ground by approximately $4.50. They also increase concentrate fineness by 8%, improving downstream beneficiation efficiency and mineral recovery rates.
Gold Ore Comminution
Cylpebs maintain a stable grind size (P80 = 75 μm) essential for flotation processes. This consistency improves gold recovery rates by up to 3%, directly enhancing plant profitability and operational efficiency.
Cement Production
Clinker Grinding
Compared to traditional steel balls, cylpebs lower single-chamber wear to just 30 g/ton and boost mill output by 15%. The reduced wear rate translates directly into lower operating costs and less frequent media replacement, supporting 24/7 continuous operation.
Raw Meal Preparation
Cylpebs adapt well to high-temperature grinding environments, offering a service life of up to 12 months in cement raw material preparation circuits. Their stable performance ensures consistent kiln feed quality, optimizing cement production efficiency.
Other Sectors
Chemical Industry: Grinding limestone, gypsum, and other materials for fertilizer and chemical production, ensuring uniform particle size and product quality. Thermal Power Plants: Processing coal ash into uniform, fine particles suitable for building materials such as aerated concrete blocks and cement additives, maximizing resource utilization.
Conclusion
10–50 mm High-Efficiency Grinding Cylpebs represent a significant advancement in grinding media technology. With their high-chrome alloy composition, precision heat treatment, and optimized cylindrical geometry, they deliver superior wear resistance, higher energy transfer efficiency, and more stable gradation than traditional spherical balls. Whether applied in iron ore processing, gold ore comminution, cement clinker grinding, or industrial mineral milling, these cylpebs provide a reliable, cost-effective solution that reduces energy consumption, lowers media costs, and minimizes environmental impact. For customized sizes, alloy grades, or technical support based on your specific mill parameters and material characteristics, our engineering team is ready to provide application-driven recommendations to optimize your grinding process.
