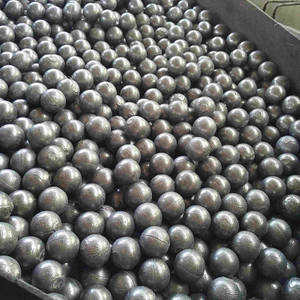

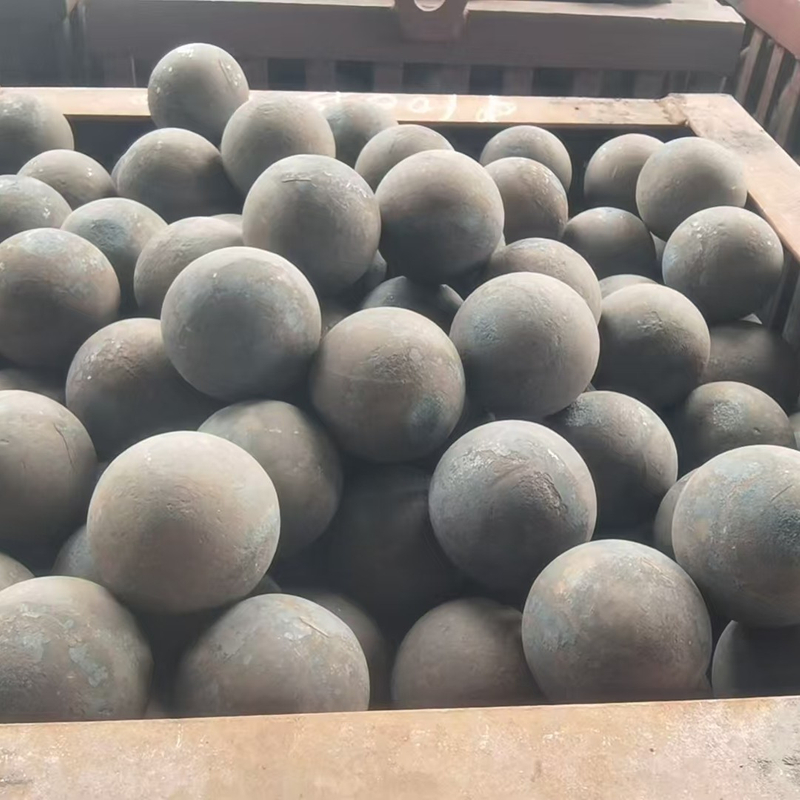

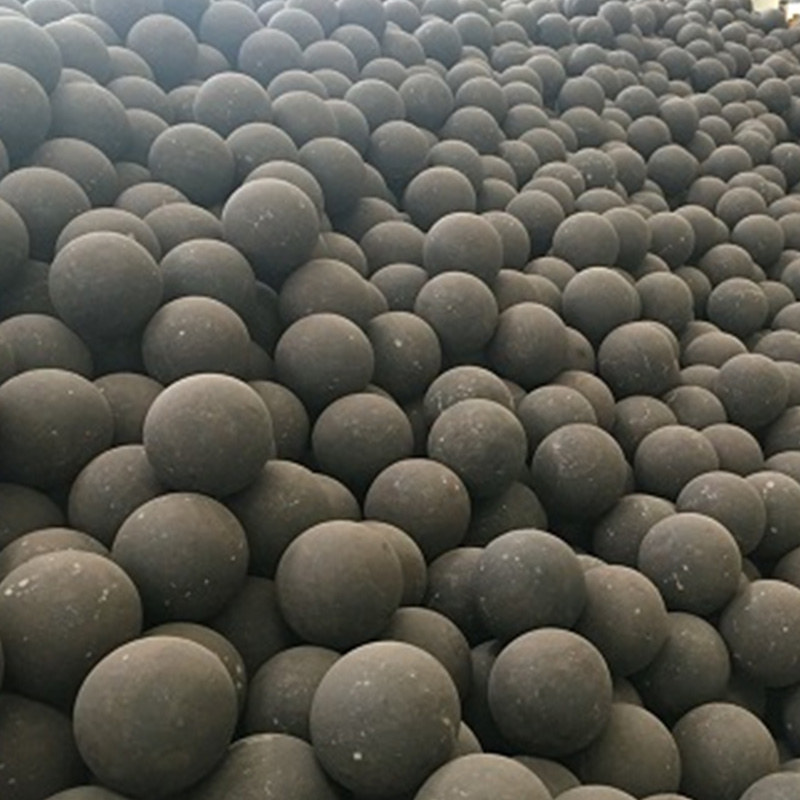

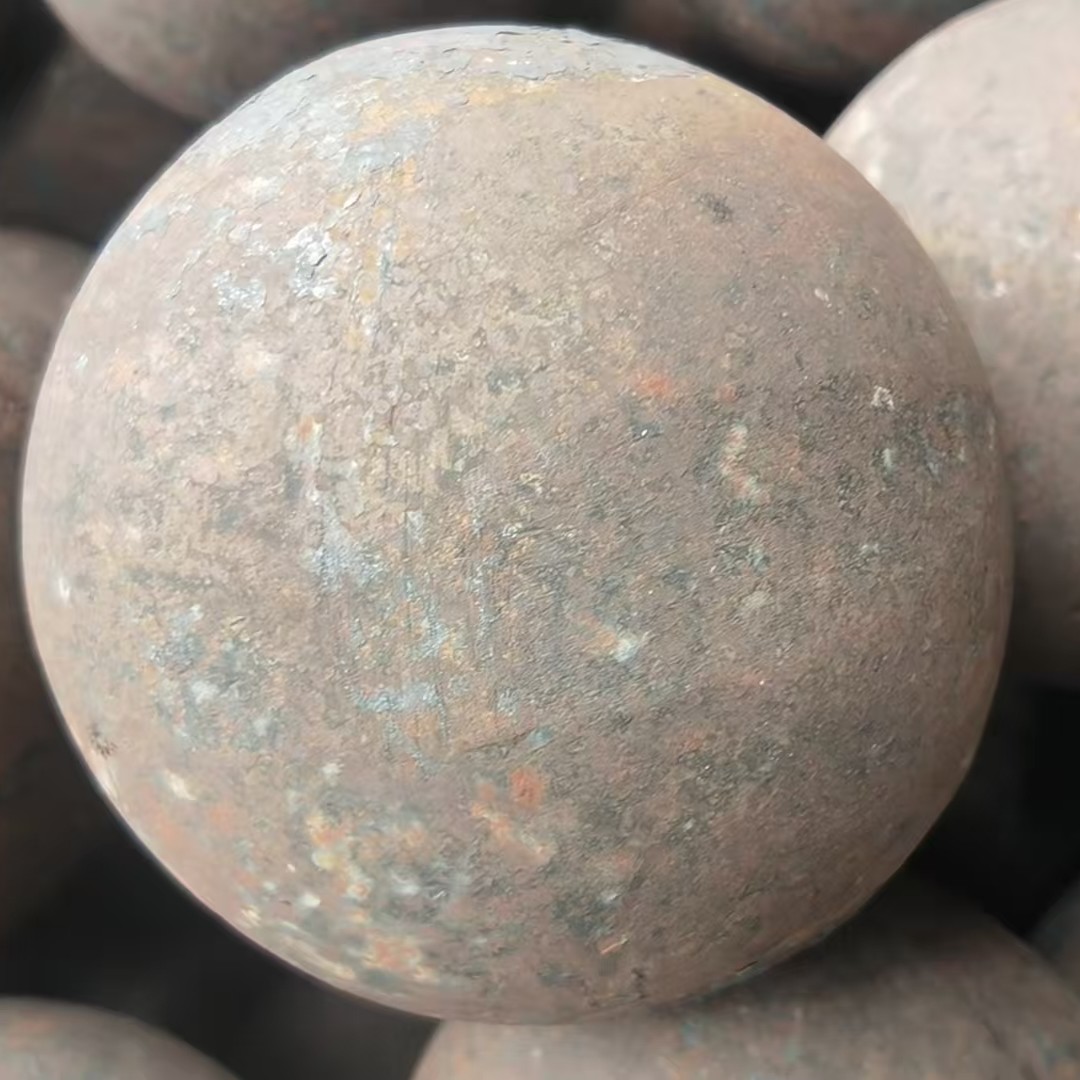

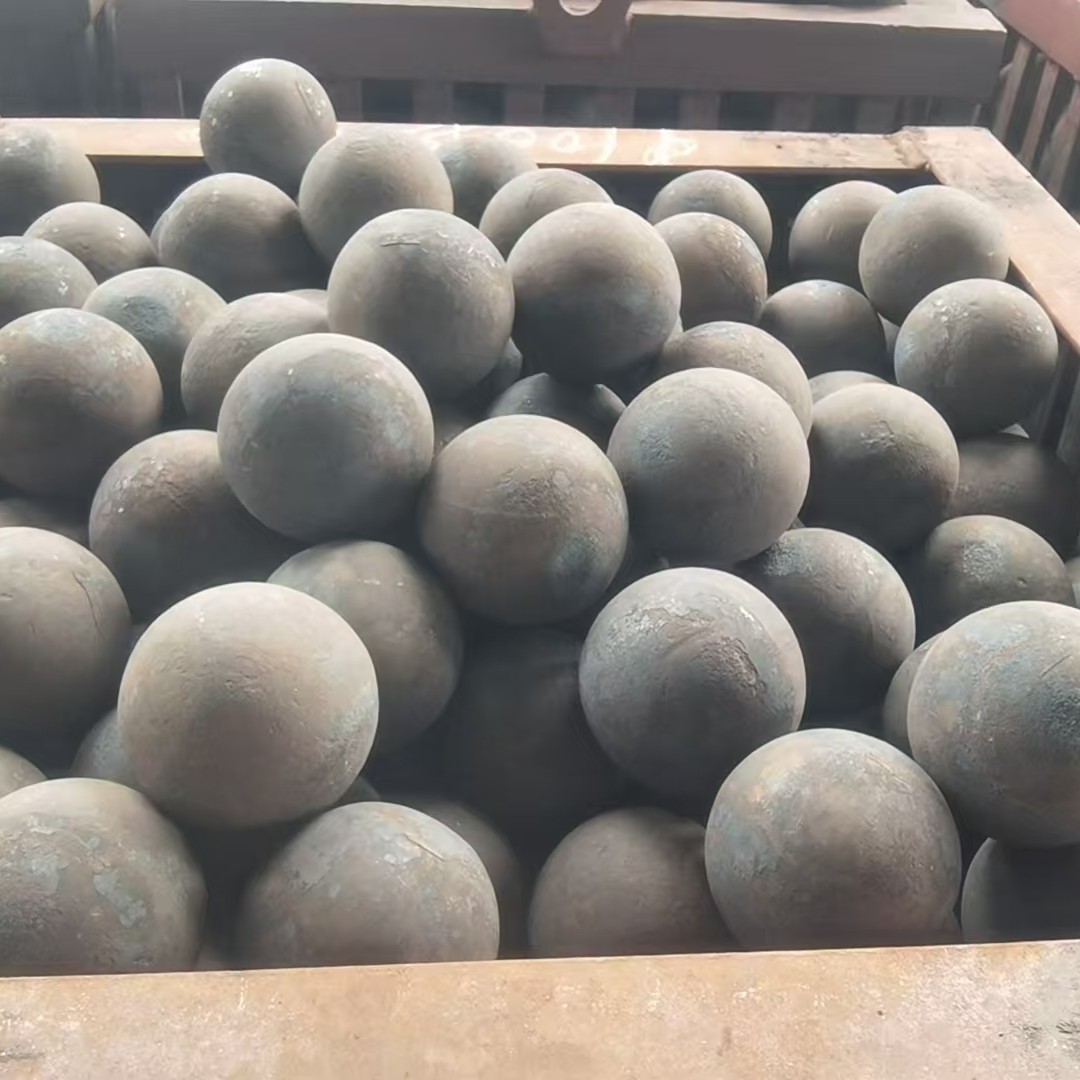

Forged steel grinding balls are high-end premium grinding media, manufactured via strict hot open-die forging, followed by computerized quenching and tempering heat treatment. Specially developed for ball mills, semi-autogenous (SAG) and rod mills, they are widely applied across mineral mining, cement manufacturing and metallurgical processing industries. Compared with ordinary cast grinding balls that dominate the low-end market, forged steel balls possess overwhelming physical and mechanical advantages: 20% higher bulk and true density, and 30% lower fragmentation breakage rate. The superior mechanical properties effectively cut comprehensive grinding media operating cost by $1.2–$1.8 per ton of processed raw material, making them the preferred consumable for large-scale 24/7 continuous milling production lines.
Dense Defect-Free Forged Microstructure: The high-pressure hot forging process compacts internal metal texture and completely eliminates inherent casting defects, including shrinkage cavities, air pores, non-metallic inclusions and uneven grain distribution. The finished balls form a uniform dense martensitic metallurgical matrix, delivering far stronger anti-fatigue and wear-resistant performance than cast balls. This homogeneous internal structure avoids partial abnormal wear and early failure, perfectly adapting to high-energy heavy-load milling environments inside large SAG mills and primary ball mills.
Precision Gradient Hardness Control: Optimized segmented quenching and low-temperature tempering processes realize precise whole-piece hardness regulation. Qualified forged steel balls reach 50–63 HRC surface hardness, with an ultra-small internal hardness gradient of ≤3 HRC from surface to core. This balanced hardness and toughness configuration avoids two common failure risks: high hardness brittleness fracture and low hardness rapid abrasive wear. Industrial graded alloy standards guide scientific selection: B3 high-alloy balls (≥58 HRC) are tailored for high-abrasion hard ores including magnetite, hematite and granite; cost-effective B2 grade (55–60 HRC) fits medium-hard gold ore, copper ore and limestone fine grinding; low-hardness high-toughness formula (50–55 HRC) is exclusively used for large SAG mills processing competent coarse ore to prevent catastrophic bulk breakage.
Micron-Level Size Consistency: Automated precision forging and finishing machining control the diameter tolerance strictly within ±0.2 mm. Uniform ball size forms a stable and ordered media motion track inside the mill, achieving homogeneous ore grinding. Field data verifies that regular forged balls reduce uneven eccentric wear on mill liners and lifter bars by 15% compared with irregular cast balls. Meanwhile, diameter grading follows fixed milling logic: 100–150 mm large-size balls for primary coarse grinding of bulk run-of-mine ore; 20–80 mm small-size balls for secondary fine grinding; the optimal matching diameter is determined by raw feed particle size and target downstream product fineness.
Beyond intrinsic material performance indicators, forged grinding balls bring measurable bottom-line benefits for industrial plants. With a standard true density of 7.8 g/cm³, the high-density steel medium improves grinding kinetic energy, accelerates mineral monomer dissociation and raises mill hourly throughput visibly. Its industrial breakage rate is stably controlled below 1%, eliminating mill jamming, cavity blockage and liner collision damage caused by broken ball fragments, which greatly cuts unplanned downtime and mechanical maintenance expenditure.
Onsite working conditions are critical external factors affecting actual service life and unit consumption. For wet grinding circuits widely used in gold and copper flotation plants, acidic mineral slurry will accelerate electrochemical corrosion and surface spalling; manufacturers can add customized chromium and manganese alloy components to upgrade anti-corrosion performance. For dry grinding cement clinker production lines, dense non-porous microstructure and uniform overall hardness become the core performance indicators. Moreover, mill rotational speed, media filling ratio and pulp density directly affect ball consumption. Reasonably optimizing these operating parameters can extend media service life without sacrificing production capacity. The actual industrial consumption of forged steel balls ranges from 0.3 kg/t to 1.5 kg/t ore, fluctuating according to ore hardness and onsite operating environments.
Gold Mineral Processing: Forged balls are widely adopted in fine grinding circuits of gold ore concentrators, grinding raw ore down to particle sizes below 75 μm to meet cyanidation leaching standards. Standardized fine granularity maximizes precious metal leaching and recovery rate. A large Western Australian gold mine replaced traditional cast steel balls with B2 grade forged balls; the upgrade reduced grinding media consumption by 25%, raised gold cyanidation recovery by 2%, and recovered an extra 3,000 ounces of gold on an annual basis.
Cement Clinker Production: In cement plants, forged steel balls grind mixed clinker and gypsum steadily to reach 320–450 m²/kg specific surface area, the core index determining final cement compressive strength. Their outstanding durability adapts to 24/7 non-stop high-volume production. A leading Chinese cement manufacturer reported 30% longer ball service life after switching to premium forged media, cutting annual grinding ball procurement costs by more than 2 million RMB.
Forged steel grinding balls are high-reliability, cost-optimized grinding media for heavy-duty industrial milling. Their dense forged texture, precise hardness grading and high dimensional stability make them far superior to cast alternatives in lifespan, anti-breakage performance and comprehensive economic benefit. For mining, cement and metallurgical enterprises focusing on cost reduction and efficiency improvement, qualified forged grinding balls are a high-return long-term strategic investment.
