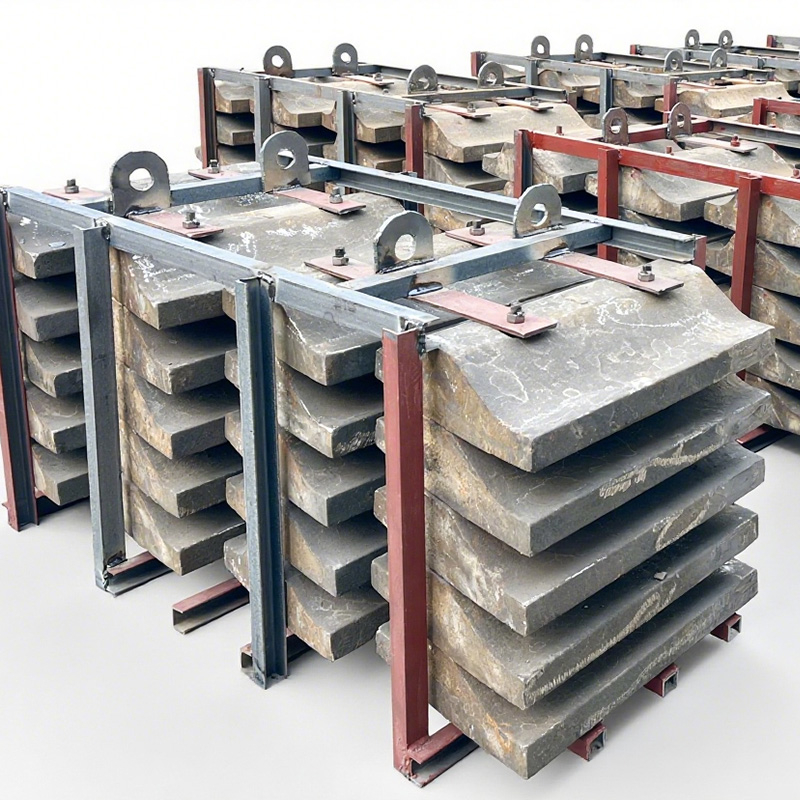

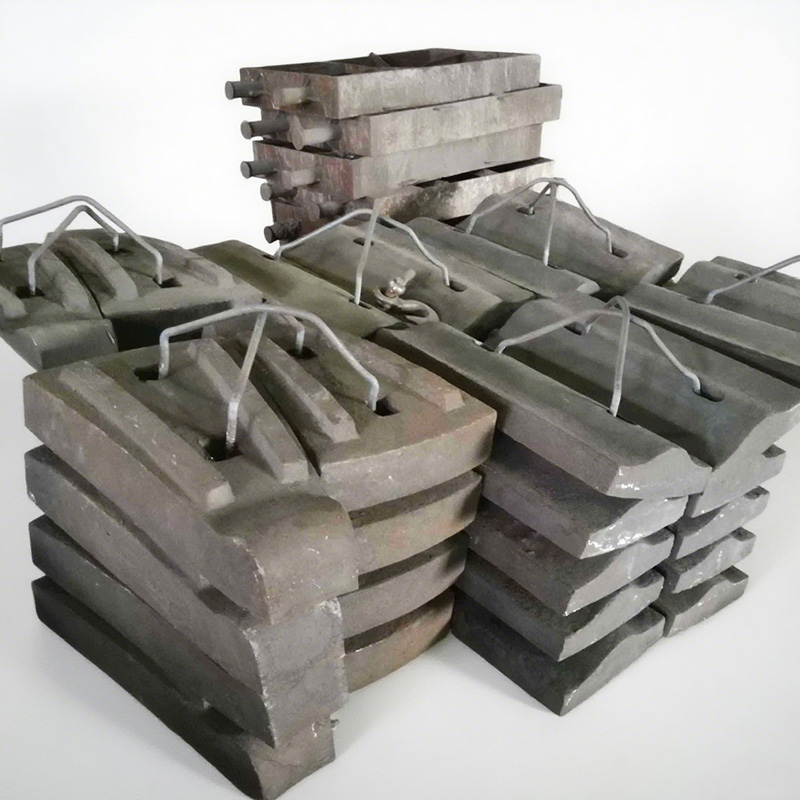

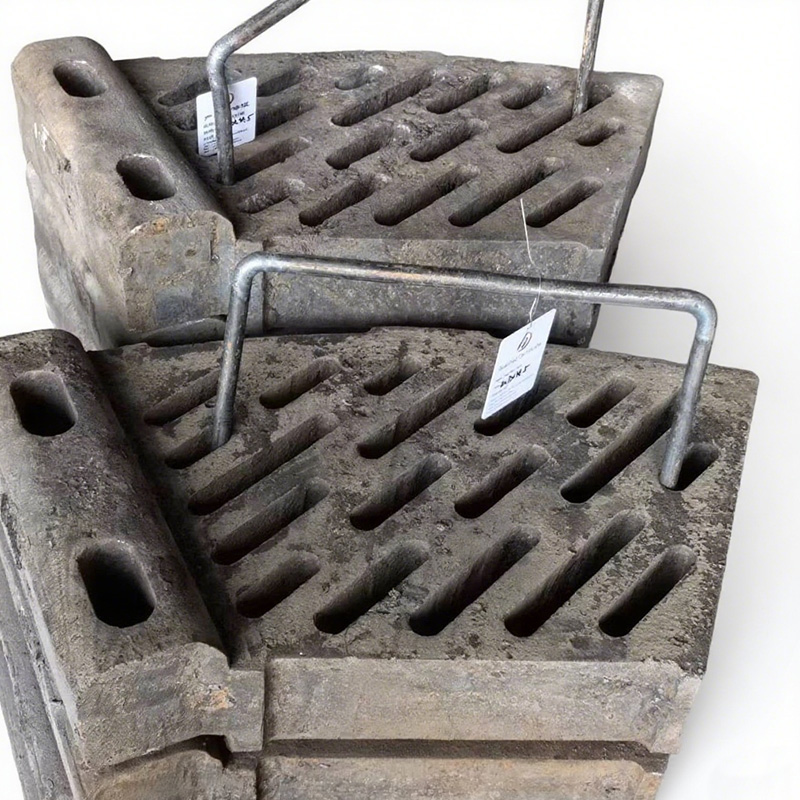

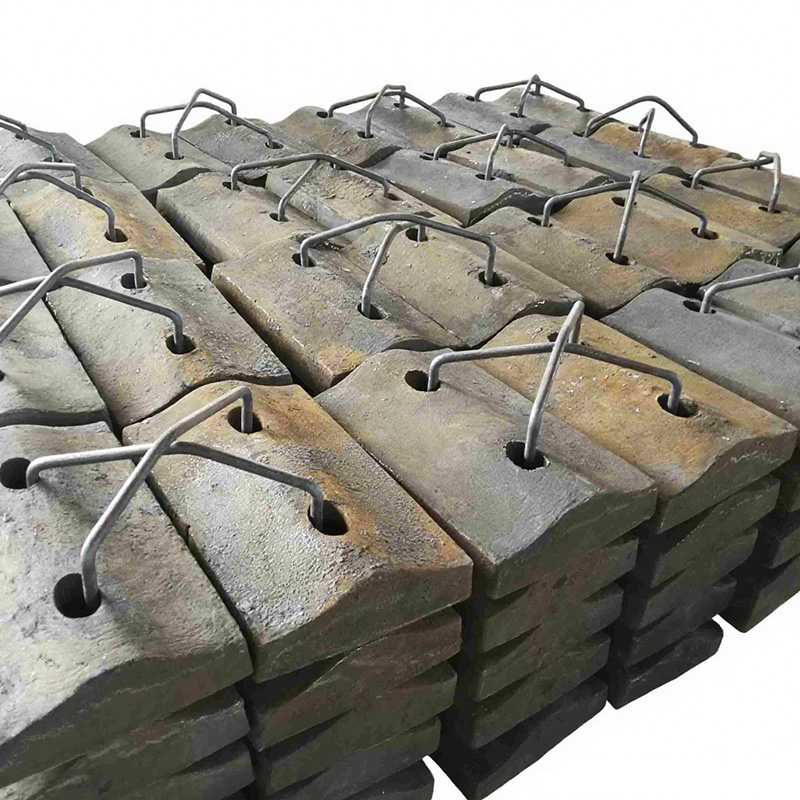

Manganese alloy liners are irreplaceable core wear-resistant components specially designed for grinding equipment, widely equipped on ball mills, rod mills, semi-autogenous (SAG) and autogenous (AG) grinding mills. As the primary protective barrier for mill cylinder shells, these liners bear cyclic heavy impact, strong frictional abrasion and continuous compressive load during long-term material comminution. They are widely deployed across global core industrial sectors including mineral mining, cement manufacturing, metallurgical processing and construction aggregate production.
Our optimized manganese alloy liners integrate structural innovation and material modification to form two major competitive advantages:
First, efficient segmented interlocking structure. Discarding traditional one-piece integrated liner design, our products adopt modular segmented splicing and interlocking positioning structure, fixed with high-strength anti-loosening bolts. This lightweight assembled design realizes flexible on-site installation and rapid replacement. For a standard large-scale industrial ball mill, the whole set of liner replacement time is shortened from 8 hours (for integrated liners) to only 3 hours, minimizing production downtime loss. Meanwhile, high-precision lost foam casting and finish machining control dimensional tolerance strictly, realizing seamless fitting with mill shells; this effectively eliminates equipment abnormal vibration, shell abrasion and mineral slurry leakage during high-speed mill operation.
Second, excellent wet corrosion and impact resistance. We add 1–2% trace nickel elements into the alloy formula to optimize grain structure. This upgrade greatly enhances electrochemical corrosion resistance, enabling stable operation in complex wet grinding scenarios with acidic or alkaline mineral slurry. The high-toughness austenite matrix maintains structural integrity under extreme cyclic impact load, preventing brittle fracture and liner shedding, the most common failure modes of alloy grinding liners.
Reasonable material and structural matching is the premise to maximize liner service life; users shall select specifications based on mill parameters and on-site working conditions. The mainstream industrial grades include ZGMn13, modified Mn13Cr2 and Mn18Cr2 manganese-chromium alloys.
Liner thickness ranges from 40 mm to 120 mm for full customization, which must be matched with mill cylinder diameter, rated rotational speed, steel ball filling rate and ore hardness. For large SAG mills undertaking heavy-impact coarse grinding, Mn18Cr2 with higher chromium content is the priority option: it balances ultra-high impact toughness and outstanding work-hardening performance to resist collision from large-diameter grinding balls and bulk ore. For medium and small ball mills processing medium-hard limestone and gangue, economical ZGMn13 fully meets production demands. In addition, the surface profile (corrugated flat type or integrated lifter bar type) directly changes the motion trajectory of grinding media; users shall customize surface structure according to target grinding fineness and grinding circuit flow.
On-site operating parameters act as critical external variables that determine the actual service life of liners. Higher ore hardness (iron ore, copper ore, quartz-rich hard rock), larger maximum feed particle size and heavier grinding steel balls amplify instantaneous impact load and accelerate surface abrasion. Apart from mechanical wear, acidic or alkaline pulp pH value and highly corrosive impurities will aggravate corrosive wear, while excessively high pulp density intensifies abrasive friction and further shortens service cycles. Restricted by diverse field conditions, the actual service life of manganese alloy mill liners generally ranges from 6 to 12 months, with obvious disparities across different production lines.
A large domestic iron ore concentrator upgraded its standard Mn13 liners for SAG mills to our optimized Mn18Cr2 liners. After renovation, liner service life was extended from 6 months to 8 months, the annual number of shutdowns for liner replacement was reduced by six times, and direct annual savings on spare parts procurement and on-site labor maintenance exceeded 800,000 RMB. Meanwhile, capacity losses caused by frequent downtime were avoided, and the operational stability of the whole grinding circuit was greatly improved.
Enterprises shall not judge manganese alloy mill liners merely by unit price during procurement; supplier qualifications and product quality inspection documents must be strictly verified. Buyers need to require batch-wise test reports including spectrometric composition analysis (verifying content of Mn, Cr, C and other core alloy elements), metallographic structure inspection (guaranteeing uniform austenite structure), and finished hardness testing (minimum surface hardness ≥210 BHN). A formal technical agreement shall be signed to clarify material grade, hardness range, standard dimensional tolerance of ±2 mm, and compensation clauses for non-conforming products.

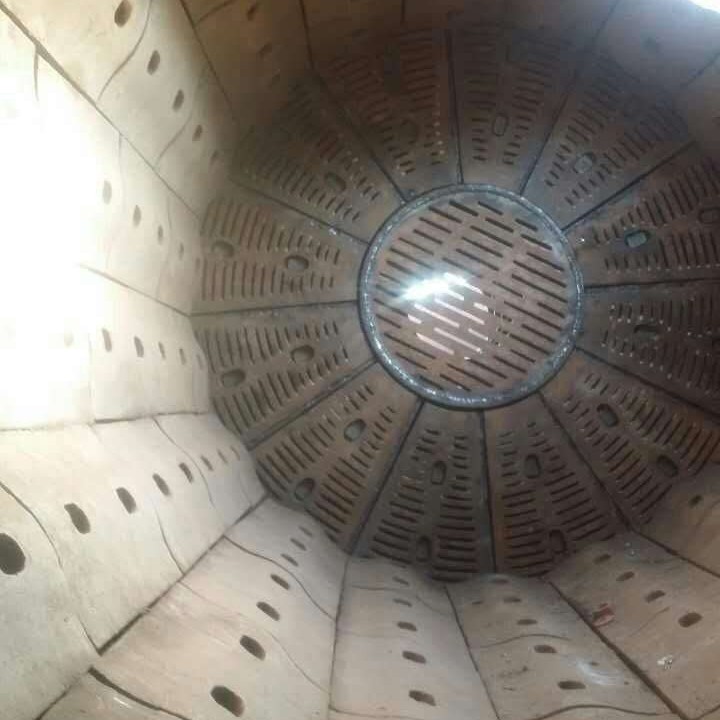

Priority should be given to qualified manufacturers with capabilities in 3D laser scanning reverse engineering, on-site survey and non-standard customization, as well as a proven track record of long-term supply to large-scale mines. Professional manufacturers ensure precise fitting between liners and mill shells to prevent eccentric wear, extend the service life of matched mill components as a whole, and lower the comprehensive tonnage grinding cost of the whole production line.
Combining outstanding work-hardening performance, high toughness, superior abrasion resistance and cost-effective structural design, manganese alloy liners are essential core components for modern grinding production lines. Premium manganese alloy liners significantly extend replacement cycles of wear parts, improve equipment operational stability and reduce total lifecycle maintenance costs. For mining, cement and aggregate enterprises pursuing high productivity and low maintenance expenditure, high-quality customized manganese alloy liners serve as a reliable long-term investment to boost line throughput, cut operational expenses and lift overall project profitability.
