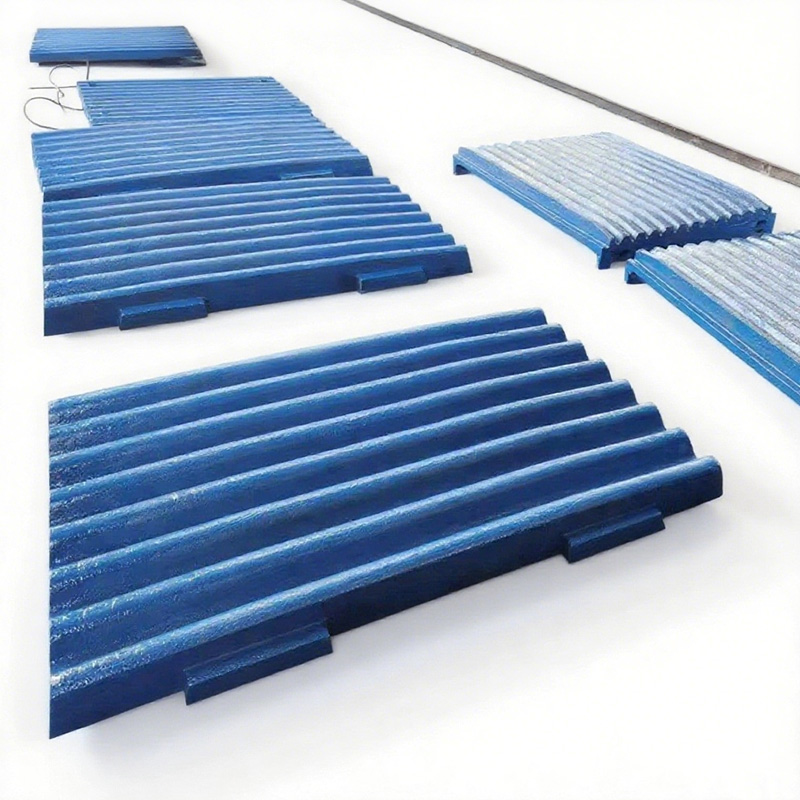

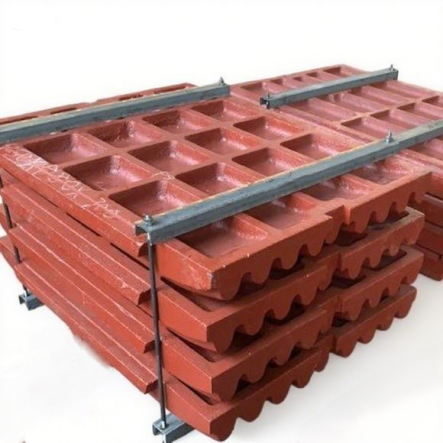

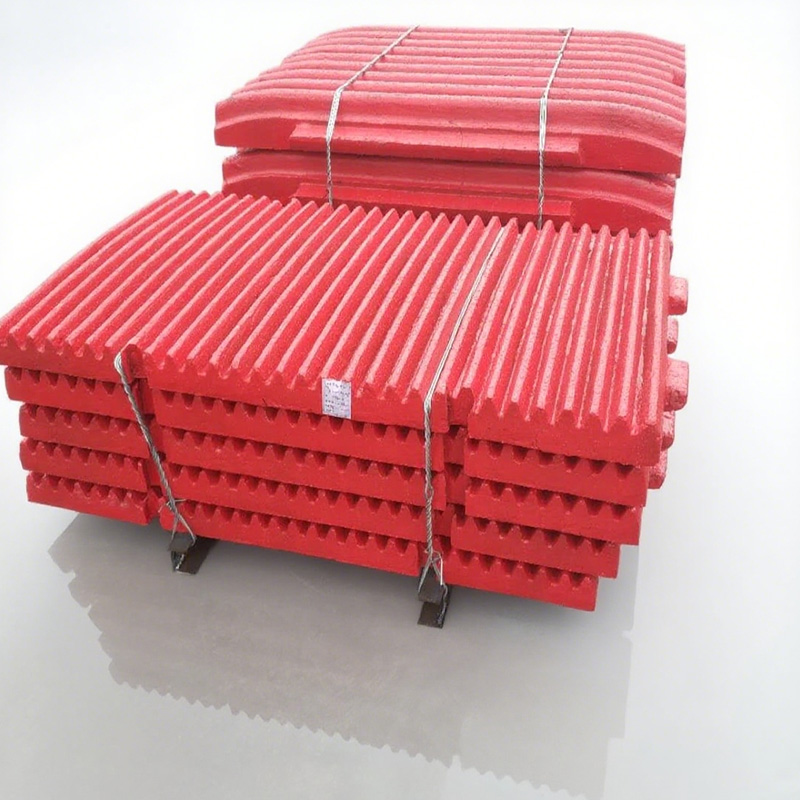

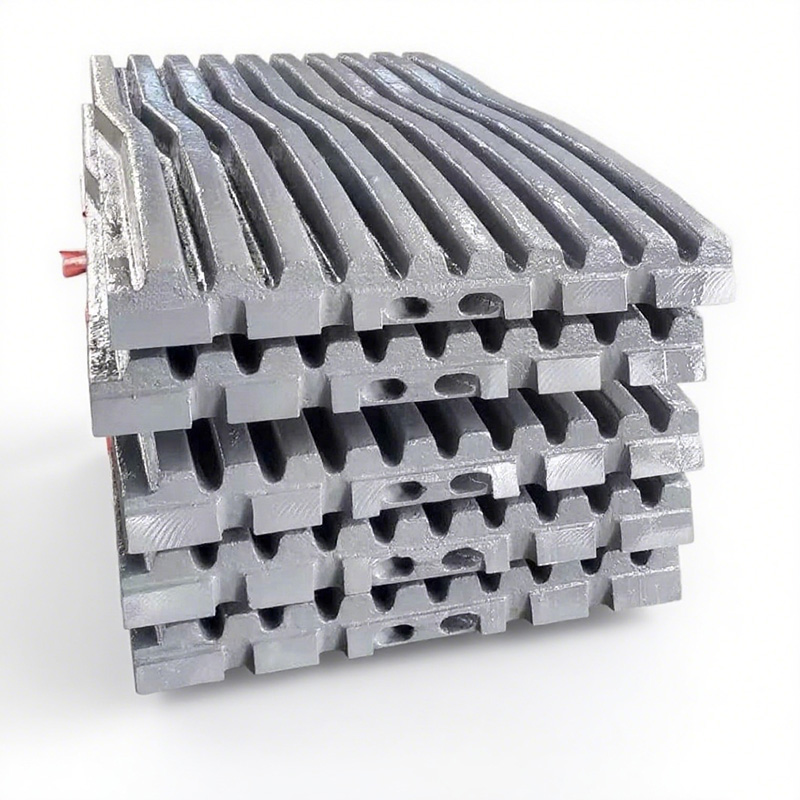

Fixed and movable jaw plates are the core wear-resistant components of jaw crushers—the most widely utilized primary crushing equipment across mining, quarrying, construction and aggregate processing industries. These interlocking plates work in synergy to generate the intense compressive force required to break down large, hard raw materials including granite, basalt, limestone and concrete into smaller, processable aggregates. As the direct contact points with feedstock, high-quality fixed and movable plates are indispensable for sustaining crushing efficiency, ensuring consistent output quality and extending the overall operational longevity of jaw crushers.
The fixed plate is rigidly mounted to the crusher’s main frame, serving as a stable crushing surface engineered to withstand constant high compressive forces without deformation or displacement. The movable plate is attached to the crusher’s eccentric shaft and toggle plate assembly, moving back and forth in a controlled arc motion against the fixed plate. This reciprocating action gradually narrows the gap between the two plates—from the feed opening to the discharge opening—applying relentless compressive force until materials are reduced to the desired discharge size. Forged from high-manganese alloy steel and treated with precision quenching and tempering, these plates boast exceptional abrasion resistance and impact toughness, delivering up to three times the service life of ordinary carbon steel plates. This superior durability directly cuts crusher downtime by up to 45% in mining and aggregate operations, where uninterrupted crushing is critical to maintaining high productivity.
Work-Hardening Material System
Both fixed and movable plates are crafted from premium wear-resistant materials to endure the extreme abrasion, impact and compression of heavy-duty crushing operations. Core material grades include high manganese steel (Mn13, Mn18Cr2), martensitic alloy steel and high-chrome cast iron, each selected for specific working conditions: high manganese steel is ideal for moderate to high-impact crushing of soft to medium-hard rocks, leveraging its outstanding work-hardening properties; alloy steel and high-chrome iron are the preferred choices for crushing hard, highly abrasive materials like granite and basalt, delivering superior wear resistance and extended service life.
Item | Specification |
Material Grade | MN13CR2 |
Hardness (After Use) | 480-550 BHN |
Tensile Strength | ≥850 MPa |
Impact Value | ≥120 J/cm² |
Thickness Range | 50-300mm |
Mining Primary Crushing: Efficiently handles run-of-mine ore (iron, copper, gold) with particle sizes up to 1.2 m, reducing feedstock to 100–300 mm for subsequent secondary processing.
Quarry Aggregate Production: Crushes granite, limestone and basalt into construction-grade aggregates (20–50 mm) for concrete mixing, road base construction and other building material production.
Recycling Industry: Shreds concrete debris and asphalt waste in demolition recycling plants, ensuring uniform particle size for reliable reuse in new construction projects.
In practical operations, fixed and movable plates are the workhorses of primary crushing processes, with their performance directly determining a crusher’s production capacity. Well-designed, high-wear-resistant plates maintain consistent discharge size, boost output volumes and reduce the need for reprocessing, while low-quality plates lead to frequent replacements, unplanned downtime and compromised product quality.
Proper maintenance is critical for maximizing jaw crusher performance and plate service life. Regular inspections for wear, cracking or loosening ensure timely replacement and prevent secondary damage to the crusher’s frame or moving parts. Selecting plate materials and designs that match the specific feed material—considering factors such as particle size, hardness and production volume—directly extends service life and lowers the total cost of ownership.
As the core wear components of jaw crushers, fixed and movable plates define the machine’s crushing capability and operational reliability. By integrating premium wear-resistant materials, precision engineering and optimized tooth design, high-quality jaw plates deliver efficient, consistent and durable performance for heavy-duty crushing operations. For mining, quarrying and construction enterprises, investing in superior fixed and movable jaw plates is a proven strategy to boost productivity, minimize maintenance costs and maintain a competitive edge in the global aggregate processing market.
Uneven feeding (e.g., oversized chunks >80% of chamber width) and lack of lubrication between the movable jaw and toggle plate can reduce lifespan by 60%. Solution: Install a vibrating feeder for uniform material distribution and lubricate contact points every 8 hours of operation.
