1. Working Principle and Structural Composition
The ball mill is a horizontally mounted rotating cylinder supported by main bearings at both ends. The inner surface of the cylinder is protected by wear‑resistant liners, and the interior may be divided into two or more chambers by partition plates, allowing multi‑stage grinding in a single machine. When the mill is set in motion, grinding media — typically steel balls or ceramic balls — are carried upward along the inner wall under the combined action of centrifugal force, friction, and gravity. Once the media reach a certain height, they detach from the liner and descend freely in parabolic trajectories, crushing the raw material through a combination of impact and attrition. Fresh feed is continuously introduced at the feed end, and the combined push from the material level difference, the cascading grinding media, and the induced airflow drives the material toward the discharge end, where the final product exits through the discharge trunnion.

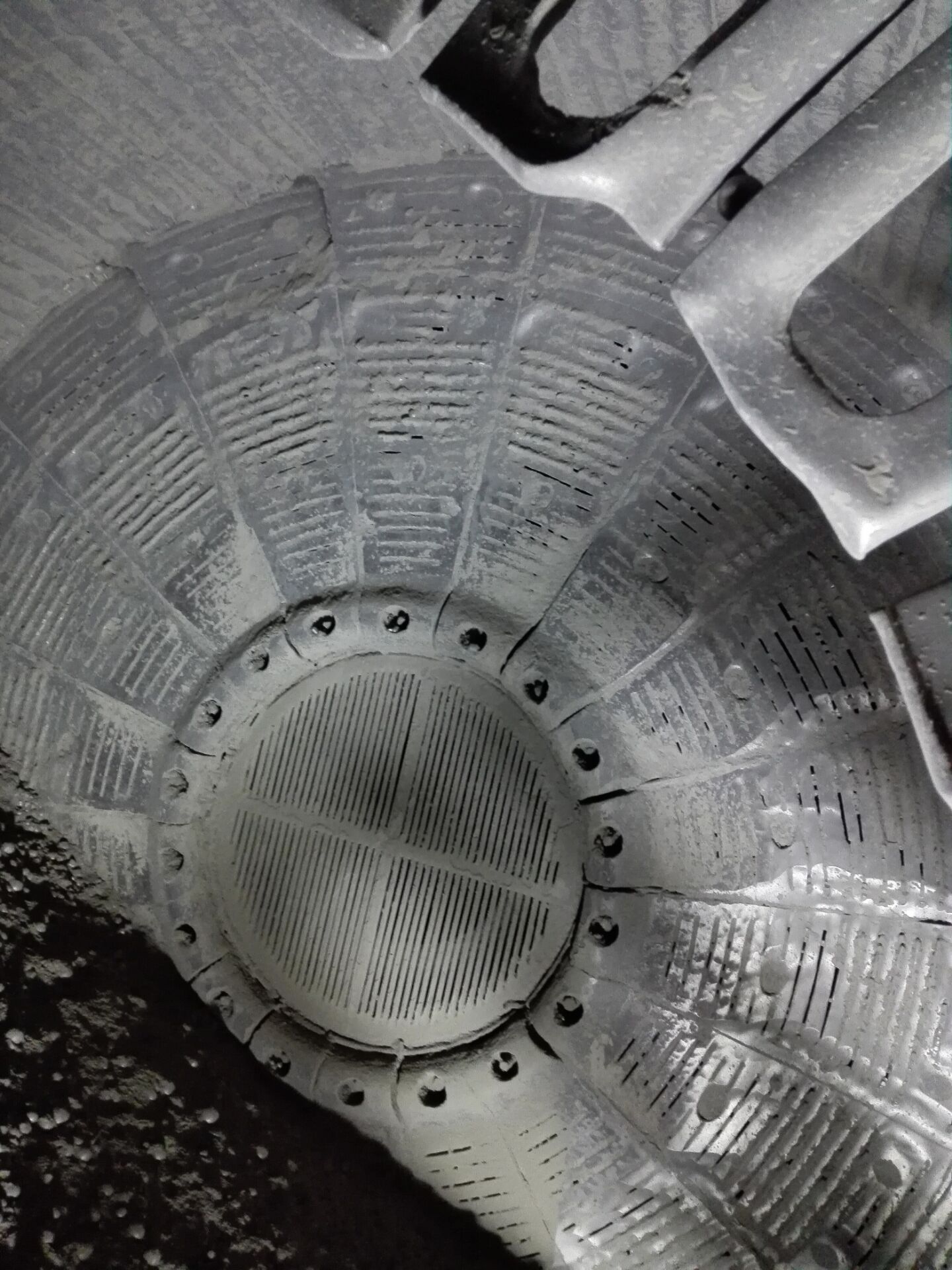

Structurally, the ball mill comprises several essential functional units. The cylindrical drum, often fabricated by welding rolled steel plates, is the main working body that bears both static loads and severe dynamic impacts during operation. Inside, carefully designed liners protect the shell from wear and also influence media motion; materials range from high‑manganese steel and chrome‑molybdenum alloy to rubber composites, with profiles such as wave, step, or ribbed shapes. The transmission system includes a main motor, a speed reducer, and a large ring gear mounted around the cylinder, which together maintain the rotational speed at a carefully chosen fraction of the critical speed — normally between 60 % and 80 %. Partition plates divide the drum into coarse and fine grinding chambers, optimizing the distribution of grinding media and preventing short‑circuiting of unground material. The grinding media themselves are carefully sized and loaded: large balls handle coarse particles, while smaller balls or forged steel slugs provide the fine grinding work. Auxiliary components include the feed chute and screw feeder, the discharge grate and trunnion, and the end covers that seal the cylinder and provide structural rigidity.
2. Movement Rule and Efficiency Optimization of Grinding Media
The behavior of the grinding charge inside the mill can be classified into three characteristic regimes. At very low rotational speeds, the media tumble in a cascading motion, rolling and sliding over one another; grinding is achieved mainly by abrasion, making this regime suitable for brittle and easily ground materials. As the speed increases toward the critical value, the charge enters the cataracting regime: the balls are lifted higher and then thrown in parabolic paths, striking the material at the toe of the charge with substantial impact energy. This is the most efficient regime for hard ores. If the mill is driven at super‑critical speeds, however, a significant portion of the charge centrifuges against the shell and rotates with the mill, with virtually no relative movement between balls and material. This circular motion must be rigorously avoided.
Within the mill cross‑section, the charge can be divided into four zones. The kidney‑shaped active zone, where media exhibit both circular lifting and parabolic falling, is the region where most breakage occurs. Adjacent to the kidney is the cataract impact zone at the toe. The blank zone, located near the centre of rotation, contributes little to grinding and represents wasted volume and energy. Excessive stratification of media — with large balls migrating to the outer layers and small balls gathering at the inner core — expands this blank zone and reduces overall efficiency. Axially, large balls tend to segregate near the feed end, while smaller ones move toward the discharge. This can be partially compensated by installing classifying liners and by optimizing the media size distribution.
Grinding media movement is influenced by a combination of factors: mill rotational speed, media size and shape, filling ratio, liner profile, and material characteristics. Continuous collisions and friction between balls, liners, and material cause progressive wear of both media and liners. A filling ratio that is too high dampens the cataracting motion, reduces grinding efficiency, increases energy consumption, and accelerates liner wear; too low a ratio, on the other hand, leads to idle impact of balls on the shell.
For efficiency optimization, the guiding principle is “large balls for impact, small balls for grinding.” In practice, the maximum ball diameter is usually chosen as 1/18 to 1/24 of the cylinder inside diameter, and a well‑graded charge containing several ball sizes yields a higher packing density and better performance than a mono‑size charge. The optimal filling ratio — the fraction of the mill volume occupied by the media charge (including voids) — is typically controlled between 30 % and 50 %, with 40 % being a common starting point for many circuits.
3. Energy Consumption Model and Influencing Factors of the Grinding Process
Ball mills are notoriously energy‑intensive, often accounting for 50 % to 90 % of the total electricity consumption in a mineral processing plant. Energy optimization is therefore central to cost control. Two widely adopted energy consumption models are used for benchmarking and design.
The Bond model estimates the theoretical power required for size reduction based on the material’s Bond Work Index (Wi). The specific energy (W) needed to reduce a material from an 80 % passing size F₈₀ to a product 80 % passing size P₈₀ is given by:
W=10 Wi(1P80−1F80)W=10Wi(P801−F801)
This model is most applicable to coarse and medium grinding and serves as the standard for industrial mill sizing. A complementary metric, Specific Energy Consumption (SEC), is defined as the total energy consumed per unit of ground product (e.g., kWh per tonne). A lower SEC indicates higher efficiency. When calculating SEC, non‑grinding power losses, such as those in the motor and gearbox, should be excluded to reflect only the net grinding energy.
Many factors influence the energy efficiency of a ball mill. Exceeding the critical speed or overfilling the mill increases both the no‑load power draw and frictional losses. The density of the grinding media also plays a role: steel balls have a higher bulk density than ceramic balls and deliver stronger impact force, but the higher wear cost and potential iron contamination must be considered. Ore properties are equally important — hard, competent rocks require higher impact energy input, while soft, viscous materials may necessitate reduced media loading to prevent mill choking.
Several energy‑saving technologies are now available. Installing wave‑shaped or stepped liners increases the effective lifting height of the media, enhancing the cataracting motion and improving breakage rates. Replacing conventional steel liners with rubber or composite liners can reduce mill weight, cut noise by 10–15 dB, and lower idle energy consumption. Intelligent control systems based on Artificial Neural Networks and model‑predictive control can learn the relationships between power draw, feed rate, particle size, and mill filling, and dynamically adjust parameters to maintain the mill at its most efficient operating point.
4. Operation Points and Maintenance Methods
4.1 Optimization of Operational Parameters
Rotational speed is one of the most critical levers for mill performance. As a rule of thumb, the mill should be operated at 60 % to 65 % of the critical speed. For hard ores, raising the speed slightly within this range can increase the impact energy, while for brittle materials a lower speed may prevent excessive fines generation. The media charge volume should occupy 70 % to 80 % of the total volume inside the cylinder (this refers to the volume of the charge as poured, including its void space). A multi‑grade charge with an emphasis on medium‑sized balls can increase packing density and provide a balance of impact and attrition surfaces. Worn media must be replenished regularly to maintain the designed size distribution and total mass.
The material‑to‑ball ratio is another key variable, usually controlled between 1 : 1 and 1.4 : 1 by weight, and adjusted according to the ore type and product target. Feed moisture content must be strictly controlled; excessive moisture can cause material to coat the grinding media, drastically reducing efficiency and throughput. Modern circuits increasingly rely on automatic control systems and variable‑frequency drives to monitor and adjust operating parameters in real time, maintaining the mill within the optimal envelope.
4.2 Daily Maintenance and Fault Treatment
A disciplined maintenance regime is essential for safe and reliable operation. Before starting the mill, a thorough inspection should be carried out: check the condition of the main motor, bearings, gear meshing, and all fasteners; remove any foreign objects and accumulated water from the mill shell. Lubrication requires particular attention — main bearing oil should be replaced every ten days under normal duty, while general gear lubricants are typically changed every six months. Bearing oil temperature should be kept below 60 °C. During operation, operators must continuously monitor the mill’s current draw, vibration, and sound, and watch for any abnormal changes. Liners should be replaced when wear reaches approximately 70 % of their original thickness to avoid damage to the shell.
Common faults encountered in ball mills include abnormal bearing vibration or overheating, damaged gear teeth or pinion, motor overload or insulation failure, and lubrication system defects. When a fault occurs, damaged components must be replaced promptly, the lubrication circuit cleaned, and feeding parameters adjusted to eliminate the root cause. Preventive measures — regular comprehensive inspections, non‑destructive testing of critical welds and shafts, and systematic training of operators — are the most effective defense against unplanned downtime.
Conclusion
This paper has provided a comprehensive overview of ball mill fundamentals, covering structure, working principle, grinding media motion, energy consumption characteristics, and operational and maintenance practices. The motion regime of the grinding media is the single most important factor determining grinding efficiency; rotational speed, filling ratio, and the material‑to‑ball ratio are the primary adjustable parameters available to the operator. Proper matching of these parameters, together with a well‑designed media grading scheme, can significantly increase throughput and reduce unit energy consumption. As one of the most energy‑intensive pieces of equipment in the mineral processing plant, the ball mill demands a systematic approach that combines theoretical energy models with modern energy‑saving technologies to control operating costs. Finally, standardized daily maintenance routines, periodic inspections, and timely fault rectification are essential to extend equipment life and ensure stable, long‑term operation. Scientific operation and maintenance management form the foundation for a ball mill to deliver high efficiency and economic performance throughout its service life.
