Premature wear part failure and the resulting unplanned downtime rank among the highest operational costs in aggregate and mining operations today. When components degrade faster than expected, production grinds to a halt. You lose valuable time, and maintenance expenses quickly spiral out of control. This reality drives an ongoing, intense debate across the industry: should you choose manganese steel or alloy steel?
Many operators search for a definitive answer. They want a single, superior material. However, framing one material as universally "better" is a dangerous oversimplification. The right choice strictly depends on the precise ratio of impact force to abrasive friction inside your specific crushing chamber. In this article, you will learn how to decode the metallurgical behaviors of Crusher Wear Parts. We will explore how to match materials to your specific equipment and feed properties. Ultimately, you will discover how to implement strategies that drastically maximize wear life and keep your plant running.
Manganese steel relies on continuous, high-impact force to "work-harden" (increasing surface hardness while retaining a ductile core); without high impact, it wears out rapidly.
Alloy steels and high-chrome cast irons offer high initial hardness, making them superior for highly abrasive, low-impact environments where manganese fails to harden.
Material selection must be paired with structural design (e.g., tooth profiles) and equipment type to maximize wear life.
Optimizing ROI often requires a mixed-material strategy across primary, secondary, and tertiary crushing stages.
Operators frequently fall into the trap of treating symptoms rather than diagnosing root causes. Replacing worn parts on a tight schedule without analyzing why they failed drains maintenance budgets rapidly. A mismatch between material metallurgy and feed properties causes most accelerated wear. You must evaluate the exact forces happening inside the crushing chamber.
Manganese steel, often referred to as Hadfield steel, possesses a unique metallurgical behavior called work-hardening. Under severe compressive stress, the crystal structure of the metal physically changes. It transitions from an initial hardness of roughly 200 HB (20 HRC) up to an impressive 500 HB (50 HRC). This intense impact creates a hardened protective layer up to 10mm deep on the surface. Beneath this hardened exterior, the core remains highly ductile. It absorbs heavy shock without shattering.
However, this incredible property introduces a major operational risk known as the "soft rock" pitfall. We see many facilities mistakenly use manganese steel to crush soft, highly abrasive materials like soft coal, sand, or gravel. These materials act like sandpaper. They lack the massive structural density needed to deliver high-impact blows. Because there is insufficient impact to trigger the work-hardening mechanism, the manganese remains in its initial 20 HRC state. It acts as a remarkably soft metal. The abrasive feed rapidly chews through it, leading to premature failure and shocking replacement costs.
Not all manganese steel is identical. Foundries adjust the chemical composition to match different crushing demands. The core rule of metallurgy applies here: a higher manganese percentage yields higher maximum hardness, but it also increases the brittleness of the casting.
11–14% Mn: This grade offers the fastest work-hardening rate and the highest ductility. It absorbs shock exceptionally well. We recommend this profile for lower-abrasion, softer rock environments where impact forces exist but are not extreme.
18% Mn: Industry professionals consider this the gold standard. It provides a perfect balance between abrasion resistance and hardening speed. You will find it ideal for most general-purpose primary crushing applications.
22–24% Mn: This high-end grade provides immense wear resistance. However, it is quite brittle compared to lower grades. You should strictly reserve it for extreme abrasion combined with brittle feed materials.
If you suspect your manganese parts are wearing too fast, you can perform a simple verification test in the field. New manganese steel is completely non-magnetic. When heavy impact forces compress the surface, the structural change causes the metal to develop a slight magnetism. You can press a strong magnet against the striking face of a used part. If the magnet sticks slightly, work-hardening is actively occurring. If it simply falls off, your feed lacks the impact necessary to harden the metal.
Operators must also understand the severe thermal vulnerability of this material. Heat exposure acts as a silent killer. When temperatures exceed 500°F (260°C), manganese loses its vital ductility. The metal undergoes a phase change, becoming structurally compromised. Welding directly on manganese or operating in high-heat environments often leads to catastrophic brittle failure during production.
When your crushing environment lacks the massive impact required to harden manganese, you must pivot to different solution categories. Alloy steels and cast irons enter the crushing chamber already hardened. They do not need impact to resist abrasion.
Martensitic steel serves as an excellent middle ground. Foundries heat-treat this material to reach an initial hardness between 44 and 57 HRC. Crucially, it maintains an impact strength of 100–300 J/cm². This bridges the performance gap perfectly. We find it ideal when impact forces are too low to trigger manganese hardening, yet the risk of tramp metal entering the chamber requires more toughness than pure iron provides.
High-chrome iron represents the extreme end of the abrasion resistance spectrum. Through the introduction of high chromium levels, the material develops complex carbide phases. These phases reach staggering hardness levels of 60–64 HRC, or HV1200+ on the Vickers scale. High-chrome effortlessly shreds highly abrasive materials.
This immense hardness introduces a critical trade-off risk. High-chrome iron features extremely low impact strength, typically hovering around just 10 J/cm². It behaves somewhat like glass. If subjected to heavy primary impact from massive boulders, or if uncrushable tramp metal enters the chamber, high-chrome components will shatter violently.
Material Type | Initial Hardness | Working Hardness | Impact Strength (J/cm²) | Best Application |
|---|---|---|---|---|
Standard Manganese (18%) | ~200 HB (20 HRC) | ~500 HB (50 HRC) | Very High | High impact, large feed |
Martensitic Steel | 44 - 57 HRC | 44 - 57 HRC | 100 - 300 J/cm² | Medium impact, high abrasion |
High-Chrome Iron | 60 - 64 HRC | 60 - 64 HRC | ~10 J/cm² | Low impact, extreme abrasion |
Selecting the right alloy means nothing if you place it in the wrong machine. Different crushers exert entirely different physical forces on the rock.

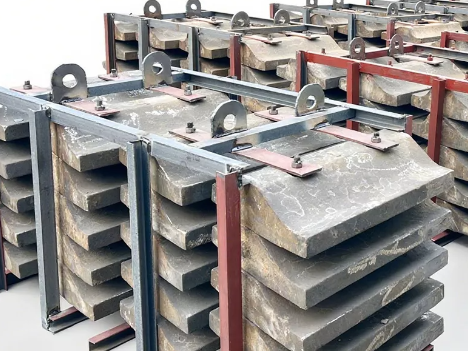

For primary crushing stations, Jaw Crusher Wear Parts endure massive compressive forces. Giant boulders enter the top of the chamber, requiring immense crushing power to fracture. Therefore, jaw plates heavily favor 13–18% manganese steel. The high impact guarantees rapid work-hardening while the ductile core prevents snapping. However, material is only half the equation. You must evaluate the structural tooth design. Corrugated profiles work best for general hard rock. Flat Quarry-style profiles handle heavy-duty clean rock but struggle in muddy conditions. Sharp "Toblerone" profiles produce distinct pressure points, making them perfect for fine secondary crushing or asphalt recycling.
Secondary and tertiary stations often utilize Cone Crusher Wear Parts. Mantles and bowl liners generally utilize manganese steel because the constant gyratory compression provides excellent hardening conditions. However, advanced micro-alloyed steel is changing the landscape. Foundries now add specific amounts of chromium and molybdenum to refine the grain structure. We highly recommend these micro-alloyed variants for highly abrasive secondary passes where standard manganese wears slightly too fast.
Horizontal and vertical shaft machines operate on a completely different principle. Impact Crusher Wear Parts spin at furious speeds, striking rock mid-air. Blow bars heavily favor high-chrome or martensitic steel. The high-speed, shattering nature of impact crushers demands immense abrasion resistance. Because the rock fractures upon impact rather than being slowly squeezed, there is rarely enough prolonged compression to harden manganese. High-chrome blow bars dominate here, provided you strictly control tramp metal.
Procurement teams often focus entirely on the initial purchase price of a component. You must move from looking at technical specs to analyzing overall business outcomes. The cheapest liner often yields the highest actual cost-per-ton. Frequent replacements require extensive changeout labor. Even worse, the lost production time during maintenance shutdowns costs facilities tens of thousands of dollars per day.
To maximize ROI, we recommend implementing a "split-defense" strategy across your plant. Utilize highly ductile manganese steel in your primary crushing stages. This guarantees you experience no catastrophic breakages from oversized boulders. Then, deploy high-chrome or advanced alloy steels in your secondary and tertiary stages. This approach maximizes uptime during the abrasive fine-crushing phases where impact forces drop significantly.
If you face extreme wear environments, you should explore next-generation material upgrades. These technologies offer incredible scalability for high-demand operations.
Bi-metallic composites: Foundries cast a ductile manganese core and bond it with a high-chrome surface. You get the impact absorption of manganese combined with the ultimate abrasion resistance of chrome.
TIC (Titanium Carbide) Inserts: Manufacturers cast extremely hard ceramic or TIC rods directly into high-wear zones of jaw plates or blow bars. These inserts extend component life exponentially without compromising the structural integrity of the base metal.
Labeling one material as universally "better" ignores the laws of metallurgy; your choice depends entirely on your specific impact-to-abrasion ratio.
Manganese steel thrives under massive compression but fails rapidly in soft, abrasive applications.
High-chrome and martensitic alloys dominate high-abrasion zones but require strict protection against uncrushable tramp metal.
Tooth profiles and machine types dictate success just as much as the chemical composition of the casting.
We strongly recommend that operators conduct a thorough wear audit before defaulting to a repeat OEM order. Analyze your discarded parts carefully. Look for abnormal wear patterns, deep cracking, or a total lack of work-hardening. These physical clues tell you exactly what is happening inside the chamber.
Take action today by reviewing your maintenance logs. Partner with a specialized foundry or supplier willing to adjust metallurgy based on your unique feed material analysis and site-specific conditions. Customized wear parts will ultimately drive your production up and push your maintenance costs down.
A: You can perform a surface magnet test. Fresh manganese is entirely non-magnetic. Impact-hardened surfaces develop a slight magnetic pull. Additionally, visually inspect the edges of the part. Proper work-hardening usually causes slight "mushrooming" or peening where the metal has compressed and expanded outward.
A: Generally, no. Primary jaw crushers handle massive, unpredictable boulders that generate extreme shock loads. Standard alloy steels lack sufficient impact resistance and face a severe risk of cracking. Primary jaws almost always require the high ductility and shock absorption of manganese steel.
A: Timeframes vary wildly from a few weeks to several years based on rock abrasiveness and operating hours. You should trigger replacement based on performance metrics, not a calendar date. Look for decreased throughput, inconsistent output gradation, slipping grip, or visible fatigue cracking to determine the right time.
A: Yes. Many modern jaw plate designs are reversible. The lower zone of the chamber usually experiences the most severe abrasive friction. Once this lower section wears down, operators can flip the plate upside down, placing the thicker, unworn top section at the bottom, nearly doubling the component's usable life.
