Running crusher components until they completely fail is a common operational mistake. It is also an incredibly expensive one. By the time structural damage appears on your equipment, repair expenses easily dwarf the price of proactive maintenance. Identifying wear early protects your heavy machinery from catastrophic breakdowns. It also maintains high throughput, ensures product quality, and keeps your cost-per-ton efficiency fully optimized.
We designed this guide to provide plant managers and maintenance teams with an evidence-based framework. You will learn how to spot early warning signs before they escalate. We will show you how to apply industry-standard wear thresholds. Ultimately, you will make smart, financially sound replacement decisions that protect your bottom line and keep your production schedules on track.
Efficiency Loss Trumps Part Life: Waiting for 100% wear often costs more in lost throughput and increased energy consumption than the price of a new part.
Listen and Measure: Unexplained vibrations, power spikes, and "ring bounce" are immediate mechanical indicators of failing profiles.
Material Quality is a Metric: A shift from cubical aggregate to flaky or elongated product directly signals compromised wear parts.
Standardized Thresholds: Most heavy-duty wear parts should be rotated or replaced when physical thickness loss reaches 30–50%, or when profile grooves exceed 15–20% degradation.
Operators often view maintenance strictly through a mechanical lens. They ask if the machine can still physically break rocks. However, you must frame this decision economically. Pushing parts past their useful lifespan introduces hidden operational penalties that quickly erode your profitability.
Worn parts alter the original crushing cavity dynamics. The machine must work significantly harder to process the same volume of material. It compensates for mechanical inefficiency by drawing more power. You will see this immediately in your utility bills. The equipment consumes more electricity or burns more diesel just to maintain a baseline production rate. This energy penalty compounds daily.
Worn components lose their distinct profile. They begin to grind material instead of fracturing it cleanly. This shift ruins your product yield. Attrition grinding produces an excess of unmarketable fines. It reduces the profitable, accurately sized aggregate you need to sell. You essentially spend extra money and energy to produce waste dust. A sharp profile guarantees proper rock fracture, while a flat profile destroys your material grade.
Ignoring wear creates a chain reaction of cascading damage. Imbalanced rotors cause destructive vibrations. Misaligned cavities place abnormal stress on high-value internal components. Main shafts, premium bearings, and structural frames absorb forces they were never designed to handle. A cheap liner replacement delayed by a month can easily result in a ruined main shaft.
You need a logical threshold for ordering parts. Replacement becomes financially justified the exact moment your daily operational losses exceed the amortized cost of new components. Calculate your increased energy spend. Add the value of your lost throughput. Once that combined daily penalty surpasses the daily cost of fresh Crusher Wear Parts, you must swap the components.
Different machines exhibit specific failure modes, but several universal symptoms apply to every crushing chamber. These operational and physical signs signal that you need an immediate diagnostic evaluation.
Throughput drops are often the first sign of trouble. You maintain consistent feed rates, but the output tonnage plummets. Oversized or off-spec material frequently escapes the crushing chamber. Your closed-side setting (CSS) might read correctly on the control panel, but the actual physical gap has widened due to metal loss. Sieve analysis will quickly reveal this irregular sizing.
Crushers naturally vibrate, but rhythmic, heavy shaking indicates a critical loss of dynamic balance. Geometric alignment fails when plates wear unevenly. This resulting heavy vibration loosens mounting bolts and fatigues structural welds. Operators will also notice abnormal operational noise. A distinct banging or slapping sound replaces the steady hum of efficient rock fracture.
Monitor your motor amperage closely. Operators often notice the equipment consistently drawing higher amps to maintain historical production levels. This power spike means the internal friction has increased. The motor strains against worn cavity profiles to force material through the discharge zone. Consistent amperage spikes demand immediate visual chamber inspections.
Lubrication systems provide excellent clues about internal machine health. Unexplained oil discoloration signals severe overheating. The presence of metallic shavings in the oil filters indicates internal friction. These shavings often result from extreme stress transferred to bearings and gears because the main crushing chamber components failed to absorb the impact energy properly.
You maximize component lifespan by applying precise, machine-specific evaluation criteria. Generic visual checks are rarely enough. Use these established thresholds to evaluate your distinct equipment types.
Jaw crushers rely on intense compression. The extreme forces involved require rigorous monitoring of stationary and moving plates.
Jaw Plates: Check the surface for "cupping" or uneven localized wear. Industry standards dictate flipping or replacing Jaw Crusher Wear Parts when the wear groove depth exceeds 15–20% of the original profile. Do not let the corrugations wear completely flat.
Cheek Plates: Inspect these side liners every 200–300 hours, especially in highly abrasive applications like quartzite or granite. Replace them immediately if you spot deep cracking. Severe metal loss here exposes the expensive mainframe to direct rock abrasion.
Toggle Plates: Look closely for fatigue cracking. The toggle plate acts as a mechanical fuse for the entire machine. It intentionally breaks during uncrushable events. A compromised toggle plate risks a catastrophic pitman failure if it fails to seat correctly or fractures prematurely.
Cone crushers demand symmetrical wear. Uneven feeding or neglected liners quickly ruin the internal brass bushings and main shaft.

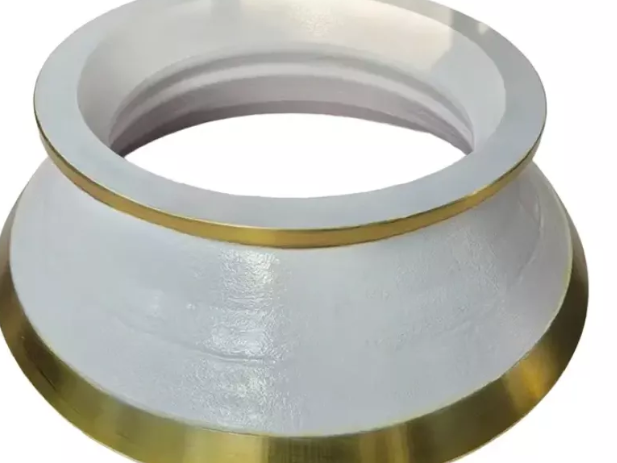

Mantle and Concave Liners: Monitor the chamber for localized wear pockets. A flattened working surface disrupts the crucial nip angle. When the nip angle fails, rocks slip upwards instead of pulling downward into the compression zone. Rely on premium Cone Crusher Wear Parts to maintain this aggressive profile longer.
"Ring Bounce": Watch the adjustment ring during operation. If the ring frequently bounces or lifts, your cavity profile is likely severely worn. It can also indicate highly segregated feed material. Ring bounce prevents proper crushing force distribution and violently damages the machine's upper frame threads.
Impact crushers shatter rock using high-velocity kinetic energy. The condition of the rotor and impact plates directly dictates your final aggregate shape.
Blow Bars: Visual inspection will quickly reveal rounded edges or missing alloy chunks. Rounded bars lose their kinetic impact efficiency. Instead of shattering rock into cubical shapes, they bat the material weakly. This leads to elongated or flaky aggregate. Maintain your Impact Crusher Wear Parts to guarantee premium product shape.
Breaker Plates: Look for deep grooving and impact craters along the aprons. When grooves become too deep, material traps against the plates, altering the rebound trajectory and reducing reduction ratios.
Rotor Balance Rule: You must replace blow bars in matched sets. If you rotate them, rotate them uniformly. A weight discrepancy of just a few pounds on a high-speed rotor creates massive imbalance. This imbalance will destroy your rotor shaft and main bearings in a matter of days.
You cannot manage wear through guesswork. Maintenance teams need a repeatable, data-driven diagnostic routine to maximize component ROI safely.
Visual Inspection: Lock out the machine during scheduled downtime. Inspect the chamber manually. Document groove depths, missing chunks, and uneven wear patterns.
Symptom Tracking: Use your SCADA system or control panels to track performance trends. Note steady increases in amp draw. Record daily throughput tons. Graphing these metrics reveals the exact day efficiency drops off.
Feed Analysis: Ensure wear isn't caused by operational errors. Check for segregated feeding. Material should hit the center of the chamber evenly. Verify that your closed-side settings match the liner profile design.
Maximize your return on investment by rotating reversible parts strategically. Do not wait for terminal failure. Flip reversible jaw plates when tooth wear reaches approximately 30%. This balances the wear pattern across the top and bottom of the plate. It prevents localized cupping and dramatically extends the overall lifespan of the casting.
Stop relying purely on estimated running hours. Rock abrasiveness changes constantly. Establish physical wear baselines using ultrasonic thickness gauges. Measure the plates when new. Measure them again every 100 hours. This data builds a reliable wear curve, allowing you to order replacement parts weeks before a critical failure occurs.
Component Type | Inspection Metric | Warning Threshold | Action Required |
|---|---|---|---|
Jaw Plates | Groove Depth | 15% - 20% loss | Rotate (Flip) / Schedule Replacement |
Cone Mantle | Overall Thickness | 30% - 50% loss | Order new set / Monitor Ring Bounce |
Blow Bars | Edge Radius | Leading edge rounded | Rotate to sharp edge / Replace in Sets |
Cheek Plates | Surface Cracking | Deep cracks exposing frame | Immediate Replacement |
Facility managers constantly weigh simple part replacements against larger capital expenditures. Knowing when to swap a liner versus when to rebuild the whole machine saves critical budget dollars.
You should restrict maintenance to part replacements when the core machine remains structurally sound. Ensure the mainframe is intact without cracks. Verify that all structural welds remain solid. If operational issues are isolated purely to the crushing chamber profiles—like high fines or poor rock shape—a fresh set of liners will resolve the issue entirely.
A simple part swap will not fix underlying mechanical rot. Consider a comprehensive rebuild when downtime becomes frequent and unpredictable. If your bearings and bronze bushings fail rapidly, your machine geometry is compromised. Look for micro-cracks along the structural frame or pitman. These symptoms dictate a full strip-down, machining, and rebuild process.
Capital equipment decisions often collide with supply chain realities. Ordering a new machine today might involve a 6 to 12-month OEM lead time. You cannot halt your quarry or recycling plant for a year. Replacing high-quality aftermarket wear components immediately serves as a necessary bridge. It maintains your production capacity and cash flow while you wait out long delivery times for new capital equipment.
Timely replacement of crusher wear parts acts as a direct investment in production stability. It is never just a routine maintenance expense. Ignoring the early symptoms of heavy vibration, poor aggregate shape, and unexplained power spikes always leads to catastrophic downstream costs. Failing to swap a worn liner can quickly cost you a main shaft or a rotor.
Audit your current wear profiles today. Measure your components against the 30–50% overall thickness rule. Check your jaw plates for the 15–20% groove degradation threshold. We encourage you to reach out to dedicated engineering teams. They will help you match your specific crushing chamber—whether Jaw, Cone, or Impact—with the exact metallurgical alloy and profile design suited for your specific feed material.
A: Lifespan varies wildly and should never be judged strictly by operating hours. It depends heavily on material abrasiveness, silica content, and feed consistency. Crushing hard, abrasive quartzite might destroy a manganese liner in a few weeks, while crushing soft limestone allows the same part to last for many months.
A: No. Replacing a single blow bar creates severe rotor imbalance, which will destroy main bearings rapidly. In jaws and cones, mixing new and worn plates creates uneven crushing forces. This stresses the machine frame and ruins product shape. Always replace components in matched sets.
A: Before blaming your liners, check your Closed-Side Setting (CSS) and feed distribution. Ensure material falls into the center of the chamber and the CSS is calibrated correctly. If the feed is centered and the CSS is tight, but throughput remains low and shape is poor, your wear parts are likely degraded.
