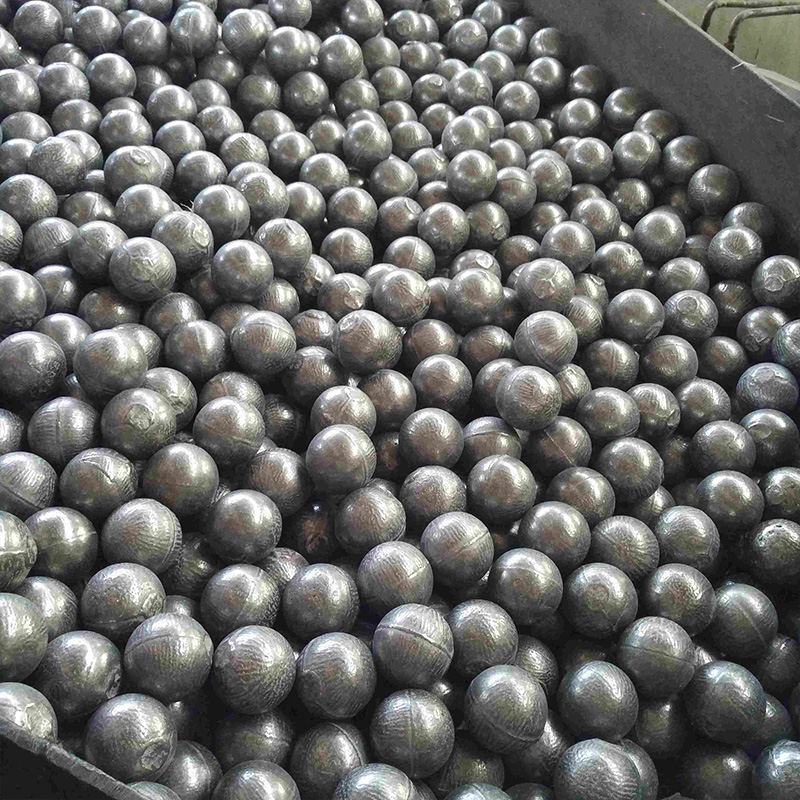

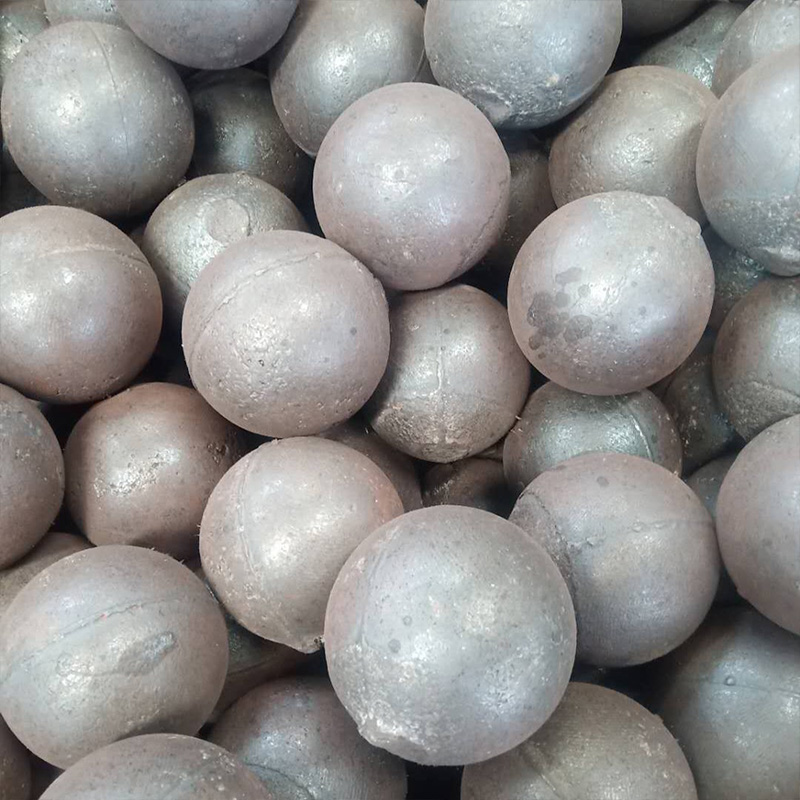

Comminution consumes a massive share of energy in mining and cement operations. Within these circuits, grinding efficiency dictates overall profitability and power draw. Operators constantly push to maximize throughput, yet the physical dimensions of the media inside the mill often bottleneck performance. Incorrect media sizing introduces severe operational risks. Mismatched sizes waste energy through inefficient steel-to-steel contact, accelerate liner wear, and cause poor mineral liberation. These errors inflate consumable costs and generate an unnecessarily high carbon footprint.
Balancing impact energy with surface area requires rigorous technical evaluation. Large balls deliver the crushing force needed for coarse particles, while small balls provide the surface area required for fine grinding. Achieving the optimal target grind means finding the exact equilibrium between these two forces. You must avoid over-grinding valuable minerals while preventing mill overloads. We will break down how size influences impact, attrition, and overall comminution efficiency.
Surface Area vs. Impact Energy: Large grinding balls provide the kinetic energy required to fracture coarse, hard ores, while small balls offer the surface area necessary for fine grinding and attrition.
The F80/P80 Rule: Optimal grinding ball size is dictated by the top size of the feed (F80) and the targeted product size (P80); a one-size-fits-all approach guarantees inefficiency.
Material Synergy: The choice between high chrome grinding balls and forged grinding balls must align with the selected ball size, mill type, and impact severity to prevent spalling or catastrophic breakage.
Equilibrium Charge: Continuous milling requires a graded charge strategy, accounting for the natural wear profile of the grinding balls over time to maintain steady-state throughput.
Grinding occurs through two primary physical mechanisms inside a rotating mill. The first is impact breakage. This involves the catastrophic shattering of particles via high-energy collisions. When the mill rotates, the steel charge is lifted against the shell liners. At a specific angle, gravity overcomes centrifugal force. The media breaks away and falls freely through the air, landing at the toe of the charge. This cataracting motion generates massive impact force. The second mechanism is attrition, also known as cleavage. This process relies on surface grinding via friction. Instead of falling through the air, the media rolls down the face of the charge in a cascading motion. Particles rub against each other and the steel surfaces. Impact breakage dominates primary milling stages where the feed is coarse. Attrition takes over during secondary and tertiary fine grinding where the feed is already reduced. Understanding this fundamental difference drives every sizing decision on site.
Larger mass generates exponentially higher kinetic energy upon impact. The mass of a sphere increases with the cube of its radius. A small increase in diameter yields a massive jump in crushing force. When a heavy steel sphere drops inside a SAG or primary ball mill, it transfers this massive force directly to the ore bed. This energy shatters coarse, competent rocks instantly. Operators rely on large media for primary grinding circuits because fresh feed requires heavy impact forces to break down.
Implementation risks exist when operators misjudge the required mass. Using balls that are too large for the feed size wastes energy. If the ore is already fine, the heavy media simply crushes the smaller particles and slams into other steel balls or the bare mill liners. This excessive steel-to-steel contact accelerates liner damage rapidly. It also causes severe media wear and increases the power draw of the mill motor without improving the product size. Proper sizing prevents this destructive cycle and keeps the energy focused on breaking rock.
Small media offers a distinct mathematical advantage for fine grinding. Decreasing the diameter exponentially increases the total surface area per ton of steel. More surface area means more contact points within the mill charge. These contact points maximize friction and attrition. Secondary and tertiary grinding circuits rely entirely on this mechanism. Regrind mills use small media to achieve fine P80 targets required for downstream flotation or leaching circuits.
Using balls that are too small for the feed results in a phenomenon known as pancaking. The light media bounces off coarse particles without breaking them. The balls lack the kinetic energy to initiate a fracture in the rock. This failure leads to a rapid buildup of critical size material in the mill. The mill eventually overloads, forcing operators to reduce feed rates or perform a crash stop to clear the drum. You must match the media mass to the largest particles in the feed to maintain steady throughput.
Slurry rheology heavily influences media performance and trajectory. Pulp density and viscosity interact directly with your chosen grinding ball size. Highly viscous slurries act as a thick cushion inside the mill. They absorb impact forces and reduce grinding efficiency. Small balls struggle significantly in thick slurries. They lose kinetic energy rapidly and can even float within the dense pulp. This floating effect halts attrition completely and causes the mill to draw less power, indicating a loss of grinding action.
Large balls possess the mass required to penetrate thick slurries. Their weight allows them to push through the viscous pulp and deliver necessary impact forces at the toe of the charge. Operators must monitor pulp density closely using density gauges on the cyclone overflow or mill discharge. Adjusting water addition helps maintain optimal rheology. Matching media size to the specific viscosity profile ensures consistent energy transfer regardless of variations in the ore feed.
The calculation of maximum media size always begins with the feed. The F80 metric represents the size at which 80 percent of the feed material passes through a screen. You must size the largest balls in the charge to break these coarsest particles. The P80 metric defines the target product size exiting the circuit. The smallest balls in the equilibrium charge must efficiently grind material down to this P80 target without over-grinding it into slimes.
Metallurgists use empirical formulas to establish baseline sizing. Bond's ball sizing equation remains the industry standard for this calculation. This formula factors in the F80, ore specific gravity, and internal mill diameter. It provides a theoretical maximum diameter for the media charge. Operators use this baseline to design the initial graded charge. Continuous monitoring and physical audits then refine this theoretical size into an operational reality.
Typical Feed Size (F80) | Recommended Maximum Ball Size | Primary Grinding Mechanism |
|---|---|---|
> 20 mm | 100 mm - 125 mm | High Impact Breakage |
10 mm - 20 mm | 80 mm - 90 mm | Moderate Impact / Attrition |
3 mm - 10 mm | 60 mm - 70 mm | High Attrition / Low Impact |
< 3 mm | 25 mm - 40 mm | Pure Attrition (Regrind) |
Ore hardness dictates the required impact energy. The Bond Work Index (BWi) measures this competence in kilowatt-hours per metric ton. A high BWi indicates hard, tough ore that resists fracture. Processing high-BWi material requires heavier media to deliver sufficient crushing force. Soft ores with a low BWi fracture easily under lighter impacts. You can use smaller media to maximize surface area when processing soft ores, increasing overall throughput.
Ore bodies are rarely uniform. Variations in hardness occur frequently as mining progresses through different geological zones. These variations require periodic reassessment of the media charge. Failing to adjust sizing for harder ore leads to sudden drops in throughput. The mill fills with unbroken rocks, and the discharge grates blind over. Regular BWi testing of the core samples helps operators anticipate these changes. Proactive adjustments to the top-up size maintain steady-state production.
Mill diameter and rotational speed control the media trajectory. Speed is measured as a percentage of critical speed. Critical speed is the exact point where centrifugal force pins the charge to the mill shell, preventing any tumbling action. Operating below critical speed creates the cataracting and cascading motions necessary for grinding. Most industrial ball mills operate between 70 and 78 percent of critical speed.
Media size must match the drop height generated by the mill diameter. Large diameter mills create massive drop heights. The media must possess enough energy at the toe of the charge to break the ore, but it must not strike the bare liners. Excessive speed throws heavy balls directly into the steel liners above the toe, causing catastrophic liner damage and media spalling. Operators balance speed, diameter, and media mass to optimize the impact zone.
Sample the feed belt regularly to determine the true operational F80.
Conduct laboratory drop-weight tests to establish current ore competence and BWi.
Measure the internal mill diameter inside the liners to calculate true drop height.
Calculate the critical speed percentage based on current variable frequency drive (VFD) settings.
Determine the specific gravity of the slurry at the discharge grate to assess rheology.
The density of the steel alloy impacts the overall mass of the ball. Specific gravity directly influences the kinetic energy delivered at any given size. Standard ball mill grinding media has a specific gravity around 7.8. Higher density alloys pack more mass into the exact same diameter. This increased mass delivers harder impacts without sacrificing the surface area required for attrition.
Operators must account for media density when calculating the total charge volume. Heavier media draws significantly more power from the mill motor. You must ensure the mill drive and gearbox can handle the increased load before switching to a denser alloy. Balancing media density with ore specific gravity optimizes energy transfer. Heavy ores, like massive sulfides, require dense media to prevent the charge from floating in the thick slurry.
Alloy composition defines performance inside the mill. High chrome grinding balls offer exceptional metallurgical properties for specific environments. They feature high volumetric hardness and excellent wear resistance. The chromium carbides formed in the microstructure withstand severe abrasion from silica-rich ores. However, this extreme hardness comes with lower impact toughness. High chrome alloys are inherently more brittle than standard carbon steel.
These properties dictate specific use cases. High chrome excels in smaller sizes used for secondary and tertiary grinding. Cement mills rely heavily on this material due to the highly abrasive, low-impact environment of dry grinding. The superior wear resistance reduces consumption rates significantly, keeping the spherical shape intact longer. Operators must avoid using high chrome in high-impact primary mills where the brittle media will shatter upon impact with the liners or large rocks.
Forging creates a completely different microstructure. Forged grinding balls deliver maximum impact toughness. The manufacturing process aligns the grain structure of the steel under extreme pressure. This alignment provides massive resistance to breakage and spalling. Forged media maintains a uniform microstructure from the surface to the core. This uniformity ensures consistent wear profiles over time, preventing the balls from breaking into irregular shapes.
Forged steel represents the best fit for large media sizes. Primary grinding circuits and SAG mills require this extreme toughness. Environments with high drop heights destroy brittle alloys instantly. Forged media absorbs these massive impacts without splitting. The high impact resistance ensures the media survives the brutal conditions of primary comminution, maintaining the necessary mass to break coarse feed.
Manufacturing execution matters just as much as alloy selection. Heat treatment dictates the final hardness and toughness of the steel. Proper quenching in water or oil, followed by precise tempering, locks in the desired metallurgical properties. Poorly heat-treated large balls develop internal voids and severe stress fractures. These defects remain hidden until the ball enters the mill, where it quickly splits in half.
Internal soundness guarantees performance. A ball that looks perfect on the outside may harbor fatal flaws internally. When a flawed ball splits, it creates sharp, irregular fragments known as scats. These fragments damage liners, blind discharge grates, and disrupt the grinding action. Working with a reputable grinding media manufacturer ensures strict quality control. Advanced ultrasonic testing verifies internal soundness before the media ever ships to the mine site.
Selecting the right material requires a strict performance analysis based on the specific circuit. You must evaluate the wear mechanisms dominating your mill. High chrome offers lower wear rates in purely abrasive conditions. Forged steel provides the toughness needed for high-impact primary milling, but it may wear faster in highly abrasive secondary circuits.
Feature | High Chrome Media | Forged Steel Media |
|---|---|---|
Primary Mechanism | Attrition / Fine Grinding | Impact / Coarse Grinding |
Impact Toughness | Low to Moderate | Extremely High |
Wear Resistance | Excellent (High Abrasion) | Good (High Impact) |
Best Application | Cement Mills, Secondary Circuits | SAG Mills, Primary Circuits |
Risk Factor | Spalling under heavy impact | Faster wear in high abrasion |
Operators must match the material to the specific size and application. Using forged steel for small secondary media often results in unnecessarily high wear rates due to abrasion. Using high chrome for massive primary media guarantees catastrophic breakage. Analyzing the specific wear mechanisms in your mill drives the correct material choice and prevents costly mistakes.
Optimal sizing maximizes energy transfer. The mill drive consumes massive amounts of electricity, often representing the largest single power draw on a mine site. You want every kilowatt directed into breaking ore, not generating heat or noise. Correctly sized media transfers kinetic energy efficiently. This efficiency significantly reduces the specific energy consumption, measured in kWh per ton of processed material. Lower energy consumption immediately boosts site profitability and reduces strain on the local power grid.
Throughput increases when sizing is correct. Eliminating critical size buildup prevents mill overloads. The slurry flows through the discharge grates without restriction. Operators can push higher feed rates without risking a crash stop. Consistent, optimized grinding media sizing keeps the mill running at peak capacity, maximizing the daily tonnage processed by the plant.
Steel consumption represents a major operating expense. Correctly sized media reduces unnecessary steel-to-steel collisions. When balls strike ore instead of each other, the overall consumption rate drops. You measure this efficiency in grams of steel consumed per ton of ore processed (g/t). A reduction of just 50 g/t yields massive savings over an annual production cycle.
Lower wear rates mean fewer replenishment additions. You spend less money purchasing steel. You also reduce the logistical burden of transporting heavy media to remote mine sites. Optimizing the size distribution directly lowers the daily operating cost of the comminution circuit and frees up working capital for other plant improvements.
The ultimate goal of comminution is downstream recovery. You must achieve the correct particle size distribution (PSD) for separation. Over-grinding creates ultra-fine slimes. These slimes coat valuable minerals, consume excess reagents, and ruin flotation kinetics. Under-grinding leaves valuable minerals locked inside waste rock. The flotation bubbles cannot attach to the unliberated mineral. Both scenarios destroy plant yield.
Precise media sizing hits the P80 target accurately. You liberate the minerals without generating excessive slimes. Improved PSD enhances flotation recovery and accelerates leaching kinetics in hydrometallurgical plants. The financial impact of a 1% increase in overall metal recovery far outweighs the initial cost of optimizing the mill charge.
Mining operations face intense pressure to reduce emissions. Optimized grinding efficiency connects directly to sustainability goals. Reducing the kWh per ton lowers Scope 2 greenhouse gas emissions. You draw less power from the grid to produce the exact same amount of metal.
Correct sizing supports corporate ESG targets. Efficient steel consumption also reduces the carbon footprint associated with manufacturing, forging, and transporting the media. Every optimization in the comminution circuit ripples through the entire sustainability profile of the operation, proving that efficient milling is also environmentally responsible milling.
A new mill is never charged with a single size of media. Operators install a graded charge. This mixture of sizes simulates a steady-state operation immediately upon startup. A graded charge handles the wide particle size distribution found in fresh feed. Large balls crush the coarse rocks, while smaller balls handle the finer particles. A typical initial charge might consist of 30% 90mm balls, 40% 75mm balls, and 30% 60mm balls by weight.
Continuous operation alters this initial mixture. The media wears down over time. To maintain the equilibrium charge, operators utilize top-up charging. You only add the largest required size during routine daily or weekly top-ups. As these large balls wear down, they naturally replenish the smaller size fractions within the mill. This strategy maintains steady-state throughput without requiring operators to constantly mix different sizes on site.
You cannot optimize what you do not measure. Monitoring the mill charge requires physical audits. Operators perform crash stops to inspect the media bed. They lock out the mill, enter the drum, and shovel out a section of the charge. They screen the media and weigh the fractions to measure actual wear rates and size distribution. These audits reveal the true equilibrium charge operating inside the mill.
Audits also identify deformed media, known as scats. Scats are broken, split, or flattened balls that no longer grind efficiently. A high percentage of scats indicates a severe problem with material selection, heat treatment, or initial sizing. Regular monitoring allows metallurgists to adjust the top-up strategy and eliminate inefficiencies before they impact production.
Handling heavy steel media presents severe safety risks on site. Operational safety protocols differ based on media size. Large, heavy primary media requires automated handling equipment. Dropping massive forged balls into a mill hopper demands strict exclusion zones. The kinetic energy of a dropped primary ball is lethal.
Establish strict exclusion zones around the mill feed chute during all top-up activities.
Utilize automated ball feeders to eliminate manual handling of heavy primary media.
Inspect bulk handling kibbles for structural integrity before lifting secondary media with overhead cranes.
Enforce comprehensive lock-out/tag-out procedures before personnel enter the mill for charge audits.
Smaller secondary media requires different handling strategies. While individual balls are lighter, they are often handled in bulk kibbles. Operators must ensure hoppers and feeders are rated for the dense steel loads. Routine top-ups must follow strict protocols to protect personnel working near the rotating equipment and feed conveyors.
Supplier quality dictates mill performance. Partnering with a reliable manufacturer ensures consistent volumetric hardness across every batch. Strict QA/QC protocols prevent premature breakage and spalling. You need a supplier that understands the metallurgical demands of your specific ore body and tailors the heat treatment process accordingly.
The best manufacturers provide extensive technical support. They assist with charge optimization and wear tracking. They help design continuous improvement trials to test new alloys or sizing strategies. A strong partnership transforms a simple consumable purchase into a strategic operational advantage, ensuring your mill operates at peak efficiency year-round.
Grinding ball size remains a dynamic variable that operators must constantly manage. You must balance the massive impact energy required for coarse particles with the expansive surface area needed for fine grinding. Feed size dictates your maximum ball size. Your target grind dictates the minimum. Ore hardness and impact severity drive your choice between forged and high chrome materials. Ignoring these technical realities guarantees wasted energy, high consumable costs, and lost mineral recovery.
Schedule a mill crash stop to physically audit the current charge and measure the actual wear profile.
Recalculate your theoretical maximum ball diameter using recent F80 and Bond Work Index data.
Adjust your top-up charging strategy to eliminate oversized media that causes excessive liner damage.
Implement a routine scat-sorting protocol to remove deformed steel from the circuit and improve grinding efficiency.
A: Metallurgists use Bond's ball sizing formula to determine the optimal diameter. This calculation factors in the top size of the feed (F80), the ore's Bond Work Index (BWi), the mill's internal diameter, and the specific gravity of both the ore and the steel media. This establishes the theoretical maximum size required.
A: Oversized media lacks sufficient total surface area for efficient fine grinding. The massive balls waste kinetic energy on steel-to-steel contact rather than breaking ore. This inefficiency wastes electricity, accelerates wear on mill liners, and increases overall steel consumption without improving the product size distribution.
A: Undersized media lacks the kinetic energy required to fracture coarse, competent particles. The balls simply bounce off the large rocks. This failure to break the feed leads to a rapid buildup of critical size material, reducing mill throughput and eventually causing severe mill overloads.
A: Highly viscous slurries act as a cushion, absorbing impact forces. Small balls may lose their kinetic energy entirely or float within thick slurries, halting attrition. Large balls possess the necessary mass to penetrate dense pulp and deliver the crushing force required to fracture the ore.
A: Smaller balls possess a higher surface-area-to-mass ratio, which generally leads to faster wear by weight due to increased friction. However, incorrect sizing of any kind accelerates wear. Oversized balls cause destructive steel-to-steel impacts, while undersized balls suffer from inefficient energy transfer.
A: Yes, mixing sizes is standard industry practice. A new mill is loaded with a graded charge—a specific mixture of sizes—to handle a wide particle size distribution in the feed. Operators then add only the largest required size during top-ups to maintain an equilibrium wear profile.
