Selecting the wrong grinding media for a specific milling environment accelerates wear rates. It increases energy consumption and drives up operational costs through unplanned downtime. Plant managers and metallurgists frequently attempt to use identical media specifications across different circuits. They ignore that wet and dry environments exert fundamentally different physical, thermal, and chemical stresses on the mill charge. To optimize throughput and minimize cost per ton, operators must evaluate how the choice between wet vs dry grinding media changes based on wear mechanisms, impact dynamics, mill types, and metallurgical properties. We see this constantly in the field. A cement plant will try to run the same alloy as a neighboring gold mine, leading to catastrophic media failure. You have to match the steel to the environment.
Primary Wear Mechanisms Differ: Wet grinding wear is dominated by a combination of corrosion and abrasion (corrosion-erosion), whereas dry grinding wear is driven by high-impact abrasion and thermal stress.
Alloy Selection is Environment-Dependent: High chrome grinding balls generally outperform in wet environments due to superior corrosion resistance, while forged grinding balls often provide the necessary toughness for high-impact dry milling.
Media Shape Impacts Efficiency: The choice between grinding balls and grinding rods must align with the slurry rheology (wet) or powder flow dynamics (dry) to prevent over-grinding and media tangling.
Sizing and Charge Volume Vary: Dry grinding typically requires larger media to overcome powder cushioning, whereas wet grinding can utilize smaller media for efficient fine attrition.
Manufacturer Capabilities Matter: Sourcing from a specialized grinding media manufacturer ensures precise heat treatment and metallurgical consistency tailored to the specific wet or dry application.
Defining baseline operating conditions establishes what optimal performance looks like. Operators measure success through media consumption rates and particle size distribution. You must match the physical environment inside the mill to the metallurgical properties of the charge. The inherent design of the mill dictates whether the process is wet or dry. Semi-Autogenous Grinding (SAG) mills, ball mills, tower mills, and cement mills all set different baselines for media trajectory and impact force. A SAG mill processing hard rock ore operates under entirely different kinetic parameters than a dry cement mill grinding clinker.
Water or chemical solvents drastically alter particle suspension in wet milling. Slurry rheology plays a major role in comminution efficiency. Liquid cushions the impact forces between media and ore. However, it increases continuous abrasive friction across the media surface. Slurry density and viscosity dictate how freely the charge moves. If the slurry becomes too thick, it pools and prevents the media from striking the ore effectively. If it is too thin, the media strikes the mill liners directly, causing severe steel-on-steel wear.
Oxidation and galvanic corrosion accelerate metal loss on the media surface. The corrosive element constantly attacks the hardened outer layer of the metal. This exposes softer underlying layers to rapid abrasion. Liquid also acts as a highly effective coolant. It keeps media temperatures stable. This thermal stability preserves the original heat-treatment hardness of the metal alloy. You rarely have to worry about annealing the steel in a wet mill because the water absorbs the kinetic heat generated by the tumbling charge.
Dry grinding lacks a cooling liquid. This absence leads to significant heat generation inside the mill. High temperatures can alter the microstructural integrity of the metal over time. Sustained thermal stress softens the alloy, accelerating wear rates. We frequently measure internal mill temperatures exceeding 150°C in dry cement circuits. At these temperatures, standard carbon steel begins to lose its temper, resulting in rapid deformation and spalling.
Fine dry powders frequently coat the media. This particle coating creates a cushioning effect. It reduces grinding efficiency significantly. Operators require higher kinetic energy to achieve comminution. The lack of fluid cushioning means metal-to-metal and metal-to-ore impacts are exceptionally severe. High impact severity demands superior volumetric toughness from the charge. When a heavy steel ball drops onto a dry, unyielding bed of ore, the kinetic energy transfers instantly. If the steel lacks toughness, it shatters.
Environmental stresses map directly to the required metallurgical properties of the charge. You cannot apply a universal specification to both environments. The physical demands dictate a strict divergence in alloy selection, sizing, and shape. Field experience shows that swapping media types without adjusting for the wet or dry nature of the circuit leads to immediate spikes in consumption.
Wet environments demand a passive oxide layer or specific alloy composition. The metal must resist the synergistic effect of corrosion and abrasion. Corrosion removes the hardened surface layer. Abrasion then rapidly wears away the softer underlying metal. Alloys lacking corrosion resistance will degrade exponentially faster in wet slurries. This is why standard forged steel often performs poorly in highly acidic wet mining circuits. The acid eats the steel faster than the rock wears it down.
Dry environments require deep uniform hardness and high volumetric toughness. The metal must resist spalling and severe abrasive wear. Liquid corrosion is not a threat here. Instead, the focus shifts entirely to surviving high-velocity impacts and continuous dry friction. The microstructure must prevent crack propagation under immense stress. You need a steel matrix that can absorb repeated blunt force trauma without developing micro-fractures that eventually split the ball in half.
Kinetic energy transfer differs vastly between dry mills and wet mills. Dry mills generate harsh, unmitigated impacts. Media must possess exceptional fracture resistance. Brittle alloys will shatter rapidly under these conditions. When a mill rotates, it lifts the charge and drops it. In a dry mill, that drop ends in a violent collision. The steel must absorb that shock.
Operators face a strict hardness versus toughness trade-off. The hardest possible ball is rarely the best choice for dry milling. Extreme hardness often correlates with high brittleness. If the dry milling environment causes the ball to shatter upon impact, consumption rates will spike. Toughness must balance hardness to ensure structural survival. We look for a specific bainitic or martensitic microstructure that provides a hard outer shell with a slightly more ductile core to absorb the shockwaves of impact.
Dry milling often requires slightly larger media diameters. Higher mass helps break through the powder coating effect. Heavier media delivers the necessary kinetic energy to crush dry, cushioned particles. Operators must adjust charge volumes to maintain optimal power draw. If you use media that is too small in a dry mill, the balls simply bounce off the compacted powder bed without actually breaking the ore.
Wet environments allow for smaller media sizes. Smaller diameters maximize surface area contact. This improves fine grinding efficiency through attrition. The liquid slurry facilitates particle transport, preventing the cushioning effect seen in dry mills. Proper sizing optimizes the energy transfer directly to the ore. By increasing the total number of contact points within the slurry, you increase the probability of particle fracture, driving up overall mill throughput.

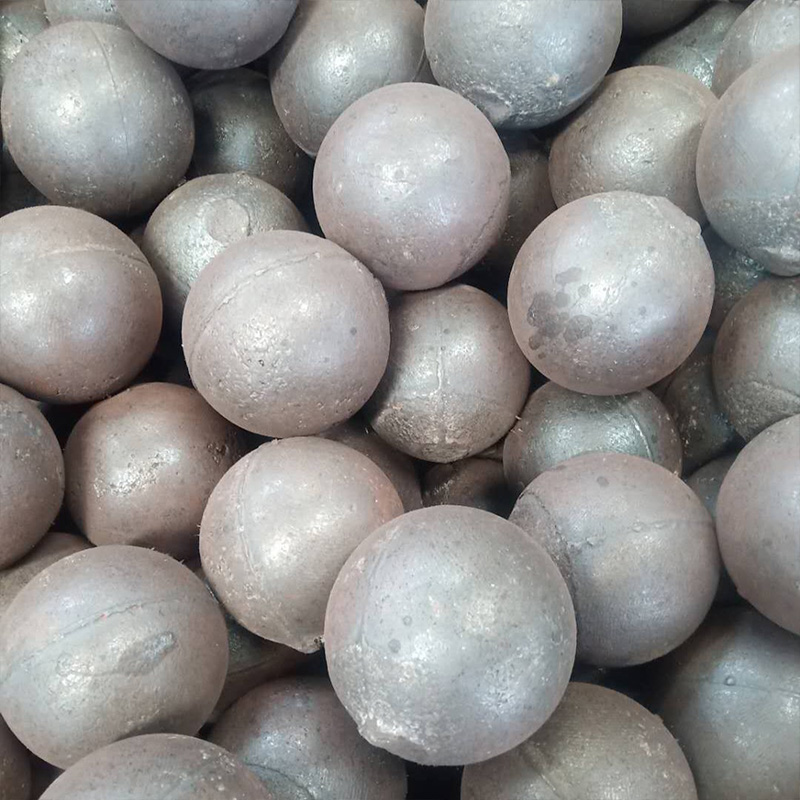

Comparing specific product categories against the physical demands of the milling circuit ensures optimal selection. Each media type offers distinct metallurgical advantages. You have to look at the chemical composition, the manufacturing process, and the intended application to make an informed decision.
Media Type | Primary Composition | Best Environment | Key Advantage | Primary Limitation |
|---|---|---|---|---|
High Chrome Balls | 10%-32% Chromium Alloy | Wet Grinding | Exceptional corrosion resistance | Can be brittle under high dry impact |
Forged Steel Balls | High-Carbon, Low-Alloy Steel | Dry Grinding / SAG | Maximum impact toughness | Higher corrosion wear in wet mills |
Grinding Rods | High-Carbon Steel | Coarse Wet/Dry Grinding | Prevents over-grinding (line contact) | Risk of tangling if sized incorrectly |
Ceramic Media | Alumina / Zirconia | Ultrafine Wet Grinding | Zero iron contamination | Low mass reduces coarse crushing power |
High chromium content creates a matrix of complex carbides. These carbides provide extreme wear resistance. The chromium levels typically range from 10% to 32%. This composition forms a highly stable microstructure. It resists both chemical attack and physical abrasion. The manufacturing process involves precise casting and controlled cooling to ensure the carbides distribute evenly throughout the steel matrix.
High chrome grinding balls are highly recommended for wet grinding. They offer exceptional corrosion resistance. They maintain surface hardness even in highly acidic slurries. They are also effective in dry cement milling where continuous abrasion is high. However, operators must ensure impact forces do not exceed the alloy's fracture threshold. Dropping a high chrome ball from too high a trajectory onto a bare steel liner will likely cause it to crack.

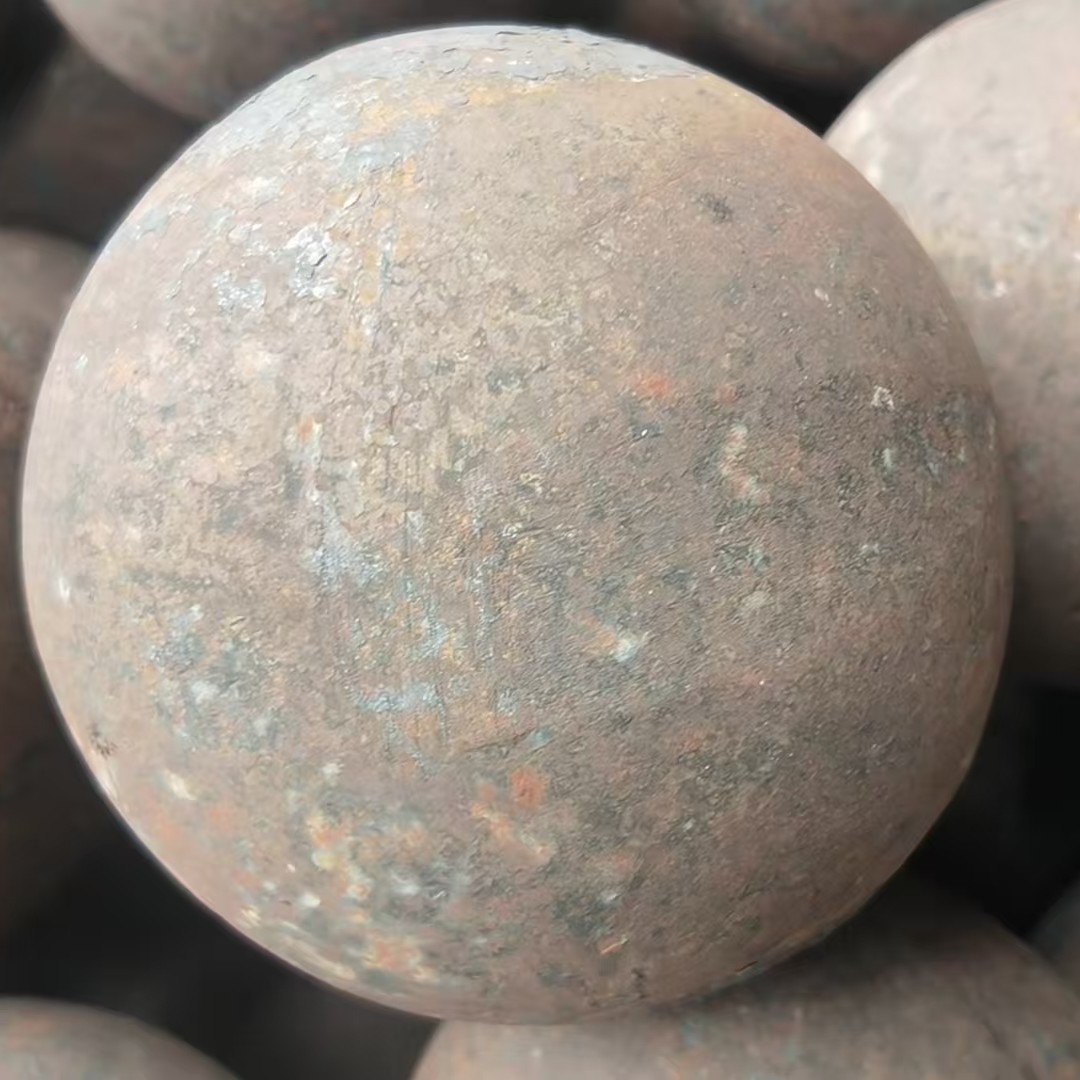

Manufacturers produce these from high-carbon, low-alloy steel. The forging process aligns the grain structure of the metal. This alignment maximizes impact toughness. Subsequent heat treatments optimize the balance between surface hardness and core ductility. We heat the steel billets, cut them to size, and forge them under massive pressure to eliminate internal voids and create a dense, uniform sphere.
Forged grinding balls are the standard for large-diameter SAG mills. They handle heavy dry grinding where massive impact forces exist. These forces would shatter more brittle cast media. You can use them in wet environments. However, operators must account for higher corrosion-driven wear rates compared to high chrome alternatives. In a wet copper or gold circuit, you will replace forged steel more frequently due to the corrosive nature of the slurry.
Grinding rods provide a tumbling line-contact rather than point-contact. This line-contact mechanism is ideal for coarse grinding. It effectively prevents over-grinding of the ore. Rod mills act as fine crushers or coarse grinders. They take the discharge from a primary crusher and reduce it to a size suitable for secondary ball milling.
Evaluating environmental suitability requires analyzing rod bending risks. Dense wet slurries provide some cushioning but can cause uneven wear. Dry, high-friction environments increase the risk of rod breakage. Proper carbon steel selection ensures the rods wear evenly without snapping under load. If a rod snaps inside the mill, it can tangle with the other rods, creating a massive twisted knot of steel that requires days of downtime to cut out with torches.
High-density alumina or zirconia media offer extreme hardness. They provide zero iron contamination to the milled product. The manufacturing process ensures strict dimensional stability. These materials resist almost all forms of chemical corrosion. They do not rust, they do not react with acids, and they maintain their shape exceptionally well over long periods.
This media is essential for ultrafine wet grinding. Stirred mills rely heavily on ceramic beads for efficient comminution. Specialized dry grinding circuits also use ceramics where product purity is the highest priority, such as in the production of white cement or specialized battery minerals. They are not suitable for high-impact coarse crushing due to lower specific gravity. A ceramic bead simply does not have the mass to crush a two-inch rock.
Moving beyond the initial purchase price is mandatory for plant profitability. You must evaluate long-term operational metrics. Efficiency dictates the true value of your media selection. Buying the cheapest steel on the market often results in the highest operating costs due to rapid wear and frequent mill recharges.
Measuring grams per ton (g/t) consumed provides a baseline for efficiency. You must project media consumption based on the wet or dry nature of the circuit. Wet mills exhibit higher continuous wear due to corrosion. Dry mills experience wear through severe abrasion and spalling. You calculate this by tracking the exact tonnage of steel added to the mill over a month and dividing it by the total tons of ore processed.
Volume replacement strategies impact plant logistics. Recharging a wet mill requires managing continuous, predictable wear. Recharging a dry mill requires vigilance against catastrophic media failure. Monitoring wear profiles prevents sudden drops in comminution efficiency. If your media wears down into flat, irregular shapes, it stops grinding and starts sliding, which wastes electrical power and reduces your throughput.
The specific gravity of the charge impacts the power draw of the mill motor. Denser media requires more energy to tumble but crushes ore more effectively. Charge density must align with the motor's operational limits. Overloading the mill wastes energy and accelerates liner wear. You have to strike a balance between having enough mass to break the rock and not exceeding the amperage limits of your drive motor.
Retained shape directly influences energy efficiency. Media that loses its spherical shape drastically reduces grinding efficiency. Pulping in wet mills or spalling in dry mills creates irregular shapes. These irregular pieces waste kinetic energy and decrease overall mill throughput. A perfectly round ball transfers energy efficiently at a single point of contact. A flat or chipped ball distributes that energy poorly, failing to fracture the ore.
Rigorous quality assurance is non-negotiable. You need ultrasonic testing to detect internal voids. Drop-test certifications verify impact toughness. Consistent metallurgical quality prevents unpredictable wear spikes. If a batch of steel has internal shrinkage cavities from poor casting, those balls will split in half within hours of entering the mill.
Operators should demand custom alloy recipes. A specialized grinding media manufacturer will adjust heat treatments based on specific wet or dry circuit data. Tailoring the microstructure of the grinding balls ensures maximum operational life. Generic off-the-shelf solutions rarely deliver optimal efficiency. You need a supplier who understands the difference between the impact forces in a 36-foot SAG mill and the corrosive environment of a regrind circuit.
Transitioning to a new media type introduces friction points. Addressing these realities ensures a smooth operational upgrade. You cannot simply dump a new alloy into a running mill without adjusting your operational parameters.
Iron or chrome shedding from the charge can interfere with downstream processes. Flotation or leaching processes in wet mining circuits are highly sensitive to chemical changes. Unwanted metal ions depress mineral recovery rates. For example, excessive iron oxidation in a slurry can consume the dissolved oxygen needed for gold cyanidation, driving up reagent costs.
Mitigation requires careful alloy selection. Selecting inert ceramic media eliminates iron contamination entirely. Alternatively, use specifically alloyed steel that minimizes chemical interference with your specific reagents. Regular slurry sampling tracks contamination levels. You should work closely with your metallurgists to ensure the steel you select does not negatively impact your recovery percentages.
Dry mill temperatures can exceed the tempering temperature of the metal. This creates severe annealing risks. The metal softens in-situ, losing its wear resistance rapidly. Softened media deforms and fails to crush the ore. We have seen dry cement mills where the internal temperature spiked so high that the steel balls literally deformed into flat discs.
Mitigation involves specifying high-temperature stable alloys. You must also monitor mill ventilation and cooling systems rigorously. Maintaining internal mill temperatures below the alloy's critical threshold preserves structural integrity. Water injection systems or high-capacity draft fans are standard requirements for keeping dry mills within safe operating temperatures.
Explosive dust poses a severe safety risk in dry grinding. Wet grinding produces heavy metal shedding in wet tailings. Both environments require strict compliance management. You have to handle the byproducts of the grinding process safely and legally.
Mitigation demands aligning wear profiles with local environmental regulations. Implement robust dust suppression in dry circuits. Monitor tailings discharge for heavy metal concentrations in wet circuits. Plant safety protocols must dictate media selection parameters. If a specific high-chrome alloy sheds too much heavy metal into your tailings pond, you may have to switch to a different composition to remain compliant with environmental permits.
The choice between wet and dry grinding environments dictates strict metallurgical requirements. It is never a matter of operator preference. Corrosion, thermal stress, and impact severity force specific material selections. You must prioritize corrosion resistance for wet environments. You must prioritize impact toughness for severe dry environments. Adjust these baselines for specific ore abrasiveness and mill types to maximize your operational efficiency.
Conduct a comprehensive media wear audit to establish your current baseline consumption rates in grams per ton.
Calculate your current operational cost per ton to identify financial inefficiencies in the milling circuit.
Consult with a certified manufacturer to run pilot tests on optimized, environment-specific alloys.
Implement strict temperature monitoring for dry mills to prevent alloy annealing and deformation.
Establish a routine sampling protocol in wet mills to track galvanic corrosion and downstream contamination.
A: The primary difference lies in the required metallurgical properties. Wet grinding media must resist a combination of corrosion and abrasion due to liquid slurries. Dry grinding media must withstand severe high-impact abrasion and elevated thermal stress without shattering.
A: High chrome balls contain complex carbides that provide exceptional corrosion resistance. This passive oxide layer prevents the rapid metal loss caused by the synergistic effects of chemical attack and physical abrasion present in wet slurries.
A: Yes, they can be used in wet environments. However, operators must account for significantly higher wear rates. Forged steel lacks the high chromium content necessary to resist continuous galvanic corrosion, making it less efficient than high chrome alternatives in liquids.
A: Dry mills generate intense friction without liquid cooling. If internal temperatures exceed the metal's tempering threshold, the alloy will anneal. This thermal degradation softens the metal, causing rapid wear, deformation, and a severe drop in grinding efficiency.
A: Yes. Dry milling generally requires larger, heavier media to break through the cushioning effect of fine dry powders. Wet milling utilizes smaller media because the liquid slurry prevents powder coating, allowing for highly efficient fine attrition.
A: Grinding rods are used for coarse grinding applications where over-grinding must be minimized. They provide a tumbling line-contact rather than point-contact, making them ideal for preparing feed for secondary ball mills in both wet and dry circuits.
