The efficiency of primary size reduction operations in heavy industries relies heavily on the durability and design of the internal components of the crushing machinery. Among these critical components, jaw crusher plates stand out as the primary contact surfaces that endure immense mechanical stress, abrasion, and impact forces. When processing hard, abrasive, or bulky materials, the integrity of the crushing chamber dictates the overall throughput, energy consumption, and maintenance intervals of the entire plant. Operators in the aggregate, mining, and recycling sectors continuously seek robust solutions to mitigate wear and maximize operational uptime. Selecting the appropriate manganese steel alloys and tooth profiles is fundamental to achieving optimal comminution. The continuous pounding of run-of-mine ore against the stationary and oscillating surfaces requires a metallurgical composition capable of absorbing shock while simultaneously resisting gouging and scratching. In this comprehensive guide, we will explore the intricate details of primary crushing mechanics, the metallurgical science behind work-hardening alloys, and the specific operational advantages of upgrading to advanced wear components designed for severe-duty applications.
In the demanding environments of mineral processing and aggregate production, the initial stage of material reduction sets the pace for all downstream operations. If the primary crusher underperforms due to worn or inefficient profiles, secondary and tertiary crushers, screens, and conveyors will suffer from irregular feed sizes and reduced overall capacity. This bottleneck effect highlights the critical importance of maintaining optimal chamber geometry. High-quality jaw crusher wear parts for quarry mining are engineered to preserve the desired nip angle and crushing kinematics for as long as possible. As the corrugated surfaces wear down, the material tends to slip rather than fracture, leading to increased energy draw and accelerated wear on the toggle assembly and bearings. Therefore, understanding the relationship between material characteristics, feed size, and the specific metallurgical properties of the crushing surfaces is essential for plant managers aiming to optimize their cost-per-ton metrics.
The fundamental principle of a jaw crusher involves a V-shaped chamber where one stationary surface and one moving surface converge to compress and fracture rock. The moving surface oscillates on an eccentric shaft, creating a crushing stroke that breaks the feed material as it travels downward through the chamber by gravity. The jaw crusher plates are the sacrificial liners bolted to these massive steel frames, designed specifically to take the brunt of the destructive forces. Without these protective liners, the structural integrity of the crusher frame would be compromised within hours of operation. The design and material composition of these liners must be carefully matched to the compressive strength, abrasiveness, and moisture content of the feed material.
In primary crushing applications, the forces exerted on the rock are immense. The liners must possess sufficient toughness to withstand large, uncrushable objects or particularly hard boulders without suffering catastrophic failure or cracking. Simultaneously, they must be hard enough to resist the continuous sliding abrasion as the fractured rock is forced downward toward the discharge opening. Achieving this balance between toughness and hardness is the primary challenge in metallurgical engineering for wear parts. A reliable fixed and movable jaw plates supplier understands that a one-size-fits-all approach is rarely effective in heavy industry, which is why advanced alloys and specialized profiles have been developed to address specific operational challenges.
Wear in a crushing chamber is a complex phenomenon driven by multiple interacting mechanisms. The primary mode of wear is high-stress gouging abrasion, which occurs when the sharp edges of hard rocks are forced into the metal surface under extreme pressure, carving out microscopic ribbons of steel. Secondary wear mechanisms include low-stress scratching abrasion as smaller particles slide against the liners, and impact fatigue caused by the repeated pounding of large boulders dropping into the chamber. Over time, these combined forces alter the profile of the liners, typically wearing down the teeth or corrugations until the surface becomes relatively flat. When this occurs, the crusher loses its ability to grip the rock effectively, resulting in a phenomenon known as "belching" or "boiling," where the rock is pushed upward rather than being crushed downward.
To combat these destructive forces, operators must carefully evaluate their choice of crusher wear parts for primary crushing. The transition from standard austenitic manganese steel to highly alloyed, specialized compositions represents a significant leap in wear technology. Standard manganese steel relies on the impact of the crushing action to work-harden the surface, but in applications where the rock is highly abrasive but not particularly hard, the surface may wear away faster than the work-hardening layer can develop. This necessitates the introduction of additional alloying elements to enhance the initial hardness and accelerate the work-hardening process, ensuring that a protective, wear-resistant layer is always present on the active crushing face.

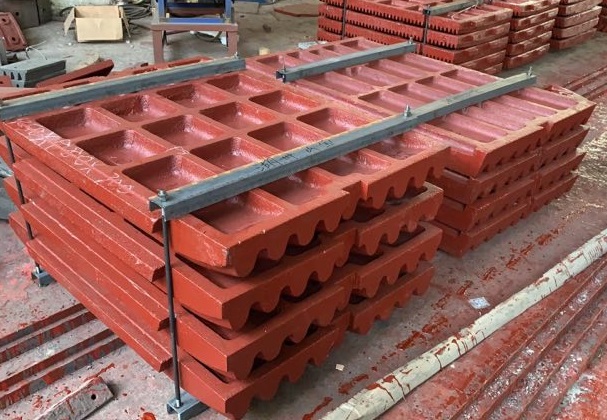

Addressing the rigorous demands of modern primary crushing, the HUIHE ZGMN13Cr2 Hardened Jaw Plates for Jaw Crushers represent a highly engineered solution designed to maximize efficiency and longevity in severe applications. These components are meticulously manufactured to provide superior resistance to both impact and abrasion, ensuring that operators can maintain consistent production rates while minimizing costly downtime for maintenance and liner replacements. By integrating advanced metallurgical formulations with optimized geometric profiles, these liners deliver measurable improvements in crushing performance across a variety of challenging environments, from hard rock mining to urban concrete recycling.
The foundation of the HUIHE ZGMN13Cr2 Hardened Jaw Plates for Jaw Crushers is its highly specialized material grade, MN13CR2. This alloy is formulated with up to 22% manganese and 1.5% chromium. The high manganese content provides the exceptional toughness required to absorb massive impact forces without fracturing, a critical characteristic when processing large run-of-mine materials. The addition of 1.5% chromium significantly alters the microstructure of the steel, increasing its initial yield strength and providing enhanced resistance to abrasive wear before the work-hardening process fully takes effect. This precise chemical balance ensures that the liners can withstand the initial shock of operation while rapidly developing a highly wear-resistant surface.
The most remarkable characteristic of this specific alloy formulation is its dynamic response to mechanical stress. The initial hardness of the material is rated at 220 BHN (Brinell Hardness Number), which allows for a degree of ductility during the initial break-in period. However, as the liners are subjected to the intense compressive and impact forces of the crushing action, the surface undergoes a rapid work-hardening transformation. After just 24 hours of use, the surface hardness increases dramatically from 220 BHN to an impressive 480-550 BHN. This work-hardened layer continuously renews itself as the surface slowly wears away, providing a persistent, ultra-hard shield against gouging and abrasion while the softer, ductile core continues to absorb shock and prevent catastrophic cracking.
Beyond hardness, the structural integrity of the HUIHE ZGMN13Cr2 Hardened Jaw Plates for Jaw Crushers is defined by exceptional mechanical properties that guarantee reliability under extreme loads. The material exhibits a tensile strength of ≥850 MPa, ensuring that the liners can withstand the massive stretching and pulling forces exerted during the crushing cycle without deforming or tearing. This high tensile strength is particularly important in maintaining the structural stability of the liners when processing exceptionally hard or unyielding materials that might otherwise cause lesser alloys to warp or fail.
Furthermore, the impact value of the material is rated at ≥120 J/cm². This high impact toughness is a direct result of the austenitic manganese microstructure, which allows the metal to absorb significant kinetic energy without initiating brittle fractures. When large boulders are dropped into the crushing chamber, or when tramp metal inadvertently enters the feed, this high impact resistance prevents the liners from shattering, thereby protecting the crusher frame and avoiding catastrophic equipment failure. Available in a thickness range of 50-300mm, these components can be selected to match the specific feed size and wear life requirements of any given operation, providing a robust barrier between the destructive crushing forces and the valuable machinery.
While metallurgical composition dictates the wear resistance of the material, the physical geometry of the crushing surface dictates the mechanical efficiency of the size reduction process. The HUIHE ZGMN13Cr2 Hardened Jaw Plates for Jaw Crushers feature a highly optimized profile designed to maximize grip, minimize slippage, and optimize the application of compressive force. The precise engineering of the tooth profile and the strict manufacturing tolerances ensure that the liners perform exactly as intended, delivering consistent product gradation and maximizing the throughput of the primary crushing stage.
A defining feature of these advanced liners is the implementation of asymmetrical triangular teeth with a 15° inclination angle. This specific geometric profile is engineered to drastically improve material gripping as the rock enters the chamber. Standard flat or symmetrical corrugated profiles often allow hard, rounded rocks to slip upward during the crushing stroke, wasting energy and accelerating wear. The 15° inclination angle of the asymmetrical teeth effectively bites into the rock, forcing it downward and applying concentrated point-loading forces that initiate fractures more efficiently. This improved gripping action translates directly to increased crushing efficiency, delivering a 20% improvement compared to traditional flat-profile plates.
The enhanced efficiency provided by the asymmetrical triangular teeth not only increases the tons-per-hour throughput of the crusher but also improves the shape and gradation of the crushed product. By fracturing the rock more cleanly and preventing excessive grinding and rubbing within the chamber, the resulting aggregate contains fewer undesirable fines and a higher proportion of usable, cubical material. This is particularly beneficial in quarrying operations where product shape is a critical quality parameter for concrete and asphalt aggregates.
To ensure optimal performance and prevent localized stress concentrations that can lead to premature failure, the HUIHE ZGMN13Cr2 Hardened Jaw Plates for Jaw Crushers are machined to strict tolerances of ≤0.3 mm. This exceptional precision guarantees a perfect fit against the crusher frame and wedge blocks. A precise fitment is crucial because any gaps or uneven contact areas between the liner and the frame can cause the liner to flex during operation, leading to fatigue cracking and potential damage to the underlying structural components of the crusher. The ≤0.3 mm tolerance ensures solid, uniform backing, allowing the immense crushing forces to be distributed evenly across the entire frame.
In addition to precision machining, these components integrate an innovative design featuring replaceable wear liners. In many crushing applications, wear is not uniform across the entire surface of the chamber. The lower section of the chamber, near the discharge opening, typically experiences significantly higher wear rates than the upper section. The integration of replaceable wear liners allows operators to replace only the worn liner segment rather than discarding the entire plate. This modular approach significantly reduces maintenance costs, minimizes waste, and allows for faster changeouts, thereby increasing the overall availability and profitability of the crushing plant.
The robust construction and advanced design of the HUIHE ZGMN13Cr2 Hardened Jaw Plates for Jaw Crushers make them highly versatile and suitable for a wide range of demanding applications across multiple heavy industries. From extracting valuable minerals deep underground to recycling urban infrastructure, these components provide the reliability and performance necessary to maintain profitable operations in the face of severe mechanical challenges.
In the mining sector, primary crushers are tasked with the initial reduction of massive fragments of blasted rock. The HUIHE ZGMN13Cr2 Hardened Jaw Plates for Jaw Crushers are explicitly designed for mining primary crushing applications, capable of reducing massive run-of-mine ore up to 1.2 m in size down to a manageable 100-300 mm product. The exceptional impact toughness (≥120 J/cm²) and high tensile strength (≥850 MPa) are critical in this environment, allowing the liners to withstand the continuous pounding of massive boulders without failing. The rapid work-hardening characteristic of the MN13CR2 alloy ensures that as the highly abrasive ore is processed, the surface hardness quickly reaches 480-550 BHN, providing a durable shield that extends the maintenance intervals in remote and demanding mining locations.
Aggregate quarries require primary crushers that can consistently produce a specific range of material sizes to feed secondary cone crushers or impactors. These liners are highly effective in quarry aggregate production for crushing hard, abrasive materials such as granite, limestone, and basalt into 20-50 mm aggregates. The asymmetrical triangular teeth with a 15° inclination angle are particularly advantageous in quarrying, as they improve material gripping and increase crushing efficiency by 20% compared to flat-profile plates. This ensures a steady, high-volume flow of well-shaped material to the downstream processing stages, maximizing the overall yield of the quarry and minimizing the production of low-value dust and fines.
The recycling of construction and demolition waste presents unique challenges for crushing equipment. The feed material often contains uncrushable tramp iron, such as rebar and structural steel, mixed with highly abrasive concrete and asphalt. The HUIHE ZGMN13Cr2 Hardened Jaw Plates for Jaw Crushers are proven in recycling industry applications for shredding concrete debris and asphalt waste. The high manganese content provides the necessary ductility to absorb the shock of encountering tramp metal without shattering, while the work-hardening surface resists the severe abrasion caused by the cementitious materials and embedded aggregates. The precision machining to tolerances of ≤0.3 mm ensures that the liners remain securely fastened even under the unpredictable and chaotic loading conditions typical of recycling operations.
Integrating high-performance wear parts into existing crushing circuits requires seamless compatibility with the original equipment manufacturer's specifications. Plant operators cannot afford to modify their machinery to accommodate aftermarket parts. Therefore, exact dimensional accuracy and verified compatibility are paramount when selecting replacement liners.
The HUIHE ZGMN13Cr2 Hardened Jaw Plates for Jaw Crushers are engineered to be fully compatible with several of the most widely used and respected primary crushers in the industry. They are verified for use with the Metso C Series, known for its aggressive crushing stroke and high capacity in both mining and quarrying. They are also compatible with the Sandvik JS Series, providing reliable performance in heavy-duty applications. Furthermore, they are designed to fit Terex Jaques crushers, ensuring that operators utilizing these robust machines can benefit from the advanced MN13CR2 metallurgy and the 20% efficiency increase provided by the asymmetrical triangular teeth profile.
While standard models cover a vast majority of the equipment in the field, older plants or highly specialized operations may utilize bespoke or legacy crushing equipment that requires non-standard wear parts. Recognizing this need, comprehensive custom jaw plate material selection support is available to ensure that every operator can access advanced wear technology. Custom-sized plates for non-standard models can be manufactured and delivered within 7-10 days. This rapid turnaround time for custom manufacturing is crucial for minimizing downtime in operations that rely on unique or heavily modified primary crushers, ensuring that they can quickly return to full production capacity with upgraded, high-performance liners.
Even the most technologically advanced wear parts require proper installation, diligent maintenance, and adherence to operational guidelines to achieve their maximum potential lifespan. The performance of the HUIHE ZGMN13Cr2 Hardened Jaw Plates for Jaw Crushers is heavily dependent on the surrounding mechanical ecosystem of the crusher and the operational practices of the plant personnel.
Proper installation is the first step in ensuring the longevity of the crushing chamber. It is mandatory to install a vibrating feeder to ensure uniform material distribution across the entire width of the crushing chamber. A vibrating feeder prevents the material from segregating or channeling down one side of the crusher, which would cause uneven, localized wear on the liners and potentially damage the eccentric shaft bearings due to unbalanced loading. Furthermore, the precision machining tolerance of ≤0.3 mm must be respected during installation, ensuring that all mating surfaces are clean and free of debris so that the liner seats perfectly against the frame, preventing any flexing or movement during operation.
Routine maintenance is essential for preserving the mechanical integrity of the crusher and maximizing the life of the wear parts. Operators must lubricate contact points between the movable jaw and toggle plate every 8 hours of operation. This frequent lubrication is critical for reducing friction and heat generation in the high-stress toggle assembly, which directly supports the crushing stroke. Additionally, maintenance personnel must perform regular inspections for wear, cracking, or loosening of the liner bolts. Early detection of a loose bolt or a localized wear spot allows for corrective action before it escalates into a catastrophic failure or causes irreversible damage to the crusher frame.
To protect the investment in high-performance wear parts, operators must strictly adhere to specific operational limitations. The crushing chamber is designed to handle specific feed sizes, and exceeding these parameters will drastically reduce the lifespan of the components. Specifically, feeding oversized chunks greater than 80% of the chamber width will cause severe bridging and extreme localized stress on the upper sections of the liners. Furthermore, failing to lubricate contact points as required will lead to rapid mechanical degradation. Violating these conditions—either by feeding oversized chunks greater than 80% of the chamber width or failing to lubricate contact points—can reduce the plate lifespan by 60%. Adhering to these operational boundaries is non-negotiable for achieving the expected durability and economic benefits of the MN13CR2 alloy and the advanced tooth profile.
The HUIHE ZGMN13Cr2 Hardened Jaw Plates for Jaw Crushers offer a highly engineered, durable solution for primary size reduction, combining a specialized MN13CR2 alloy that work-hardens to 480-550 BHN with an asymmetrical triangular tooth profile that increases crushing efficiency by 20%. Designed for severe applications in mining, quarrying, and recycling, these precision-machined components integrate replaceable wear liners to optimize maintenance costs and are fully compatible with major equipment brands like Metso, Sandvik, and Terex. By adhering to strict installation and maintenance protocols, operators in heavy industries can leverage these advanced wear parts to significantly improve material gripping, maximize throughput, and ensure reliable, continuous production in the most demanding crushing environments.
