Crusher Wear Parts: Enhancing Crushing Efficiency and Equipment Longevity

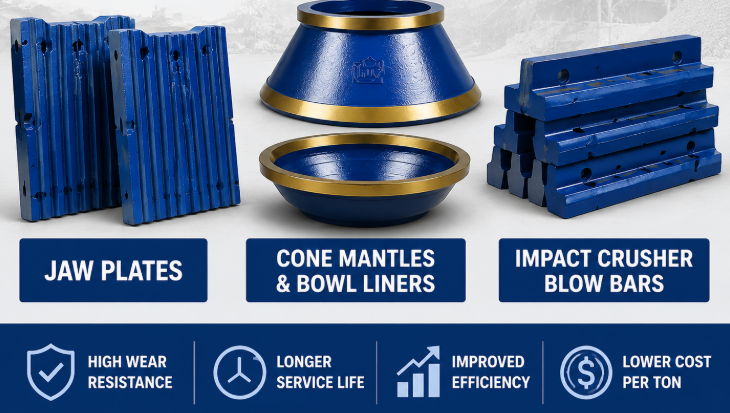

Optimizing aggregate production and mineral processing efficiency relies heavily on the metallurgical integrity and precise mechanical design of crusher wear parts, which directly dictate operational uptime, specific energy consumption, and total cost of ownership across heavy industrial deployment. As a senior industrial metallurgist and crushing applications expert, I have evaluated countless configurations in demanding quarries and recycling plants globally. In this comprehensive technical guide, we examine the metallurgical mechanisms, wear dynamics, and engineering specifications that define premium components such as cone crusher wear components and jaw plates, providing actionable engineering intelligence for optimal plant profitability.

Table of Contents At a Glance

Understanding Crusher Wear Parts and Their Critical Role

Crusher wear parts are sacrificial engineering components designed to absorb extreme compressive and abrasive forces during mineral size reduction, protecting the structural integrity of the crusher frame and internal drive assemblies.

In heavy aggregate processing, mining, and recycling operations, crushing machinery operates under punishing mechanical regimes. The primary function of crusher wear parts is to apply high-intensity compressive stress to raw feed materials, fracturing them along natural cleavage planes. Because these components endure direct, continuous impact against high-hardness quartzites, granites, and abrasive ores, they experience progressive material loss. Understanding the mechanical interaction between the raw feed and the wear surface is paramount for maintaining product gradation and throughput.

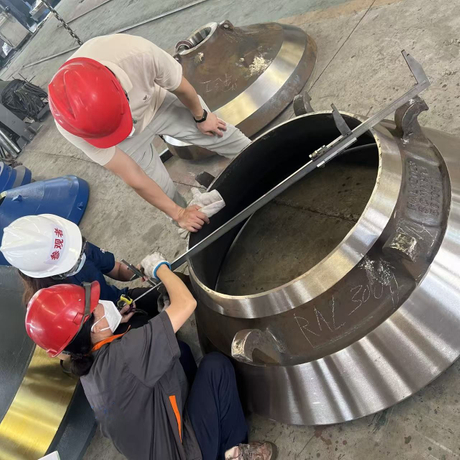

From an engineering perspective, actual plant operators prioritize wear parts that maintain consistent cavity geometry throughout their operational lifecycle. When mantle liners, bowl liners, or jaw dies wear unevenly, the closed-side setting drifts, resulting in out-of-spec product gradations and excessive recirculation loads. Modern European aggregate producers, in particular, demand high dimensional precision and tight casting tolerances to eliminate initial bedding-in anomalies and ensure predictable wear rates from day one.

To address these demands, our engineering philosophy focuses on balancing hardness and toughness. If an alloy is too brittle, catastrophic fracture occurs under tramp iron contamination; if it is too soft, abrasive wear accelerates exponentially. Premium durable crusher replacement components utilize advanced grain-refinement techniques during casting to ensure homogeneous wear characteristics, minimizing premature localized thinning and maximizing the utilization window of the component.

The Metallurgy of Performance: Manganese and Alloy Selection

The performance of premium wear components is governed by advanced metallurgy, specifically austenitic manganese steel alloys that leverage work-hardening under high-impact compressive loading to continually regenerate surface hardness.

The metallurgical foundation of traditional jaw and cone crusher wear components is Hadfield austenitic manganese steel, originally formulated in the late 19th century. Its unique property lies in its ability to transform from a relatively ductile austenitic matrix into an extremely hard surface layer when subjected to severe mechanical impact or pressure. This phase transformation occurs via strain-induced martensite nucleation and extensive dislocation entanglement, creating a hardened working face while retaining a tough, shock-resistant core.

However, standard 14 percent manganese steels are often inadequate for modern high-throughput, abrasive applications where impact energy is insufficient to fully work-harden the steel before abrasive gouging removes the surface. To counteract this, advanced alloy formulations incorporate precise additions of chromium, molybdenum, and elevated carbon-to-manganese ratios. Chromium increases initial yield strength and corrosion resistance, while molybdenum refines the grain structure, prevents carbide precipitation during slow cooling of heavy section castings, and improves high-temperature mechanical stability.

In our manufacturing and design protocols, we tailor alloy chemistry based on specific quarry geology. For instance, highly abrasive granite deposits with low impact shock require higher carbon and chromium variants, whereas secondary cone crushing applications with high tramp-iron risk require maximized toughness. By integrating specialized metallurgical crusher wear components into high-wear zones, plant operators can achieve up to a 30 percent increase in operating hours compared to standard generic aftermarket castings.

Maintenance Tip (Work-Hardening Pre-Treatment): When installing new austenitic manganese steel liners, avoid shock-loading the crusher with extremely small, non-impact feed material initially. Allow a controlled feed of moderate-to-large sized rock for the first 20 operating hours to facilitate uniform work-hardening across the entire wear contour, preventing premature surface flow and edge deformation.

Comparing Wear Dynamics Across Different Crusher Types

Wear dynamics vary fundamentally across crushing equipment categories due to differences in kinematic profiles, compression ratios, and relative material slippage between jaw, cone, and impact machines.

Analyzing wear mechanisms requires examining how material moves relative to the wear surface. In jaw crushers, the kinematic motion is predominantly a combination of downward eccentric compression and intense frictional sliding at the bottom of the chamber. As the swing jaw retracts and advances, abrasive fines act as a lapping paste, leading to pronounced profile cupping and accelerated wear near the discharge outlet. Consequently, jaw dies are frequently engineered with deep tooth profiles that invert or interchange between fixed and moving positions to optimize metal utilization.

Cone crushers operate under continuous interparticle comminution where the mantle gyrates within the stationary bowl liner. The wear profile in a cone crusher is largely dictated by the mantle height and the decreasing volume of the crushing cavity. Material velocity increases as it descends toward the parallel zone, creating high localized pressure and thermal buildup. If feed distribution is uneven, leading to starvation on one side of the cavity, uneven mechanical loading causes localized fatigue cracking and premature structural failure of the mantle backing material.

Impact crushers, conversely, rely on high-velocity kinetic energy transfer rather than slow compression. Blow bars mounted on a spinning rotor strike the feed material violently, flinging it against breaker plates. The primary wear driver here is high-strain impact erosion combined with thermal cycling. Utilizing ceramic-embedded composite blow bars in these environments significantly extends service life by embedding alumina or titanium carbide particles into a tough martensitic iron matrix, resisting localized gouging from extremely hard silica inclusions.

Maximising Component Lifespan Through Wear Pattern Analysis

Maximizing the operational lifespan of wear components demands systematic post-mortem wear pattern analysis, strict feed distribution control, and rigorous monitoring of backing material integrity.

Achieving optimal economic return on wear parts extends far beyond initial material selection; it requires continuous diagnostic evaluation of used components. By examining the physical topography of a discarded mantle or jaw die, a metallurgical engineer can immediately diagnose underlying operational inefficiencies. For instance, localized asymmetrical wear patterns typically indicate maladjusted eccentric throws, uneven material feeding, or improper crusher leveling during installation.

Another critical factor often overlooked in field maintenance is the backing compound layer situated between the wear liner and the manganese or steel support head. If low-quality or improperly mixed epoxy backing is utilized, void spaces form beneath the liner. Under extreme crushing loads, unsupported sections of the manganese liner will flex, resulting in localized high-stress fatigue cracking or catastrophic blowout of the component long before the metal has worn down to its minimum thickness threshold.

European and North American operators increasingly rely on digital wear-monitoring technologies, including 3D laser scanning during scheduled maintenance shutdowns, to map metal loss precisely. By tracking wear rates per thousand tons processed, plant managers can accurately predict replacement intervals, eliminate unplanned downtime, and optimize inventory holding costs. Integrating these advanced monitoring practices ensures that every component is utilized to its absolute safe mechanical limit.
