In recent years, mineral processing enterprises have faced mounting operational pressures: steel ball market prices keep surging, liner wear cycles shorten sharply, and iron impurities stripped from steel media severely degrade concentrate purity and flotation performance. Against this backdrop, one question triggers heated discussion across concentrators: can ceramic balls fully replace traditional steel balls as universal grinding media?
Media suppliers widely promote ceramic balls with attractive selling points: lower power draw, drastically reduced media consumption, upgraded concentrate grade and zero steel ball expenditure. Nonetheless, actual production outcomes diverge drastically on-site. A portion of mines successfully cut comprehensive per-ton ore processing costs after switching to ceramic media and maintained stable metallurgical indicators. Others, however, suffered a throughput decline exceeding 20%, failed to hit target grinding fineness, and had no choice but to revert to steel ball operation after costly trial runs.
Such inconsistent results stem not from inherent defects of ceramic balls, but from hasty replacement without systematic pre-evaluation. Most operators neglect three core preconditions before media conversion: what ore characteristics fit ceramic balls, which process flows match ceramic grinding systems, and what operating environments render ceramic media unworkable. It is critical to clarify that ceramic balls are not an upgraded alternative to steel balls. Instead, they represent a completely independent grinding system built on distinct media energy transfer mechanisms. Mismatched ore properties, circuit layouts and mill operating parameters will offset all savings from reduced steel consumption, leading to hidden losses including diminished hourly capacity, lower metal recovery and soaring power costs. Only by matching media characteristics to production conditions can concentrators unlock the true value of ceramic grinding balls.
Three persistent cost pain points push mineral processing plants to explore ceramic ball applications on a large scale.
First, skyrocketing steel ball consumption erodes production profits. For magnetite and non-ferrous metal concentrators, unit steel ball consumption normally ranges from 0.8 kg to 1.5 kg per tonne of ore. Hard magnetite and skarn copper mines with highly abrasive feed even record steel consumption above 2 kg/t. For a plant processing 3 million tonnes of ore annually, steel ball procurement alone costs several million RMB each year. Worse still, steel ball prices fluctuate violently with raw material markets, creating unstable supply chains and unpredictable expenditure. What was once classified as a minor auxiliary cost has evolved into a core variable determining overall plant profitability.
Second, iron contamination has become an increasingly restrictive bottleneck for high-value mineral products. The rapid expansion of new energy and non-metallic mineral sectors — including high-purity quartz, lithium spodumene, feldspar, graphite and fluorite — imposes ultra-strict limits on iron impurity content. High-end quartz materials require Fe₂O₃ content below 50 ppm; battery-grade graphite demands near-total elimination of iron contaminants; trace iron residues in feldspar directly reduce ceramic product whiteness. During grinding, continuous abrasion of steel balls releases iron particles and ferrous ions into slurry. These impurities not only downgrade concentrate market value, but also disrupt slurry electrochemical balance, alter mineral surface adsorption activity, interfere with flotation reagent selectivity, and impair concentrate filterability. Consequently, numerous non-metallic mineral manufacturers are actively pursuing iron-free grinding circuits with ceramic media.
Third, frequent liner replacement and unplanned downtime generate massive indirect losses. Steel balls deliver powerful impact force that grinds ore and abrades mill liners simultaneously, an issue amplified in SAG secondary ball mills, high-speed regrinding mills and small-diameter continuous grinding equipment. Beyond liner procurement expenses, periodic shutdowns for liner replacement disrupt continuous production and slash total annual throughput. Thanks to lower density and milder abrasive impact, ceramic balls significantly slow liner deterioration. In mature fine grinding circuits, liner service life can be extended by over 30%, cutting maintenance frequency and eliminating production interruptions.
The wildly varying performance of steel and ceramic balls originates from their divergent core grinding mechanisms, which define their respective applicable scenarios.

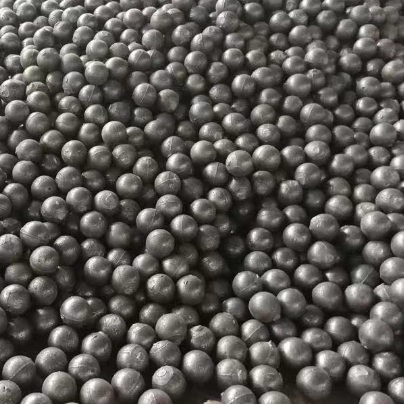

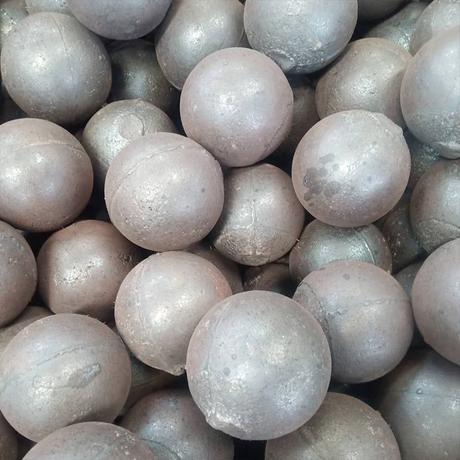

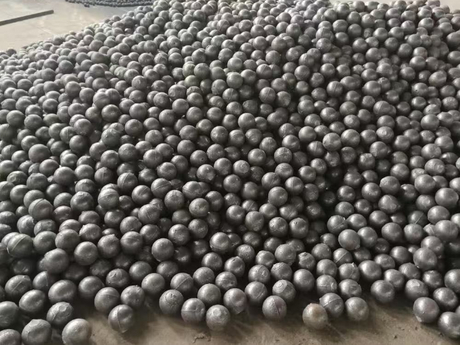

Steel balls rely primarily on high-energy impact breakage. With a density of 7.6–7.8 g/cm³, steel media generates tremendous kinetic energy when lifted and dropped inside the mill. This strong crushing capacity efficiently fractures coarse, hard ore particles and stabilizes hourly throughput, making steel balls irreplaceable for primary and coarse grinding stages. Magnetite, copper, gold, molybdenum and high-hardness lead-zinc circuits still depend heavily on steel ball systems in the short term, as ceramic media lack sufficient impact force to break competent coarse feed.
Ceramic balls prioritize gentle abrasive attrition rather than impact crushing. Their density only reaches 3.2–6.0 g/cm³, delivering weak impact force but dense contact surfaces that enhance selective fine grinding. Another irreplaceable advantage is their chemical inertness, which eliminates iron contamination entirely. In short, steel balls specialize in breaking large coarse particles, while ceramic balls excel at refining already-liberated fine minerals and controlling over-grinding and slime generation.
Three categories of production lines achieve optimal economic and metallurgical benefits after adopting ceramic media.
The first mature application field covers non-metallic and iron-sensitive minerals. Quartz, feldspar, graphite, kaolin, fluorite and spodumene deep-processing circuits have accumulated abundant successful industrial cases. High-purity quartz manufacturers have comprehensively upgraded full-circuit iron-free systems, combining ceramic balls, ceramic liners, polyurethane pipelines and non-metallic pump bodies. Even a mere 0.01% reduction in Fe₂O₃ content can lift products into a far higher price tier, creating profit surpluses that easily offset ceramic media’s high upfront cost.
Regrinding circuits represent another highly suitable environment. Modern mineral processing adopts staged grinding and staged separation to maximize recovery. Rougher concentrate regrinding targets fully liberated minerals, where violent impact force is unnecessary. Operators only need to suppress over-grinding, reduce harmful ultra-fine slimes and protect intact valuable mineral crystal structures — strengths inherent to ceramic balls. Industrial data from copper-sulfur, lead-zinc and graphite regrinding circuits verify that ceramic media cuts over-ground particle fractions, improves concentrate filtration, stabilizes flotation froth and raises metal recovery by 1–3 percentage points. Such improvements stem from uniform particle size distribution and enhanced mineral liberation, rather than merely finer grinding fineness.
Fine and ultrafine grinding systems also benefit greatly from ceramic balls. When production targets require 85% passing 200 mesh or d90 below 45 μm, steel balls’ impact advantage fades, while excessive collision creates massive slimes and wastes energy on invalid over-grinding. Ceramic balls’ attrition-based grinding delivers narrower particle size distribution with minimal slime generation, performing excellently in stirred mills, tower mills, IsaMills and dedicated fine grinding ball mills. New energy mineral processing lines are steadily increasing ceramic media adoption in fine grinding sections.
Many plant operators encounter irreversible losses by blindly switching to ceramic balls under unsuitable operating conditions.
Primary coarse grinding circuits with coarse feed are unsuitable. If mill feed size exceeds 10 mm and ore contains hard, competent pebbles, ceramic balls lack sufficient impact energy to break coarse particles. This leads to reduced throughput, elevated hydrocyclone circulating load and higher unit power consumption. Most failed ceramic ball trials occur when operators directly replace steel balls by equal weight without adjusting filling rate and mill parameters.
High-hardness abrasive ores require caution. High-silica magnetite, quartzite-hosted gold ore and skarn copper ore feature high compressive strength and strong abrasiveness. Ceramic balls easily crack, deform and suffer uneven wear under these conditions, disrupting ball gradation and destabilizing mill operation. Comprehensive evaluation combining Bond work index, abrasion index and ore brittleness is mandatory before media conversion.
Aged mills with fixed steel-ball process parameters face compatibility risks. Most old concentrators ignore a critical fact: ceramic media demand complete recalibration of filling ratio, mill rotational speed, ball size gradation, slurry density and classification setpoints. Retaining original steel ball operating parameters will inevitably trigger poor grinding efficiency and substandard product fineness.
Equal-weight replacement is unworkable. Ceramic balls have lower density, so identical weight loading changes the mill’s effective filling volume, void ratio and media motion trajectory. On-site technicians must recalculate target ball charge volume instead of simply matching steel ball weight.
Ball size gradation requires full redesign. Steel ball recipes prioritize large-diameter media for impact crushing, while ceramic ball systems rely on multi-size small-ball gradations to boost abrasive contact points. Copying steel ball gradation directly severely weakens grinding performance.
Slurry density control becomes far more sensitive. Ceramic balls’ weak impact force creates a thick ore slurry cushion at excessively high density, blocking effective grinding, coarsening discharge and increasing power consumption. Operators must tighten real-time density monitoring after conversion.
The classification system must be optimized synchronously. Adjusting grinding media without modifying hydrocyclone feed pressure, spigot size and overflow concentration is a common mistake. Ceramic fine grinding generates more ultrafine particles that demand higher classification efficiency to avoid circulating slime buildup.
Long-term continuous industrial testing is indispensable. Short-term observation of several hours cannot reflect actual economic performance. Operators need to monitor throughput, power consumption, media wear rate, liner lifespan, flotation reagent dosage and concentrate quality for at least 30 consecutive days. Many trials display promising results in the initial three days before hidden wear and efficiency issues emerge over prolonged operation.
The answer is conditional — ceramic balls deliver economic advantages only under matching ore and circuit conditions.
Enterprises must calculate full-cycle comprehensive processing costs instead of merely comparing steel ball expenditure. Key indicators include per-ton power consumption, hourly throughput, metal recovery, liner replacement frequency, downtime losses, reagent consumption and concentrate market pricing. Some mines cut steel consumption by 50% after switching to ceramic balls yet suffered a 15% throughput drop, resulting in net economic losses. In contrast, non-metallic mineral plants often secure substantially higher concentrate prices due to eliminated iron contamination; the incremental product revenue far outweighs ceramic media’s higher purchase cost.
Ultimately, ceramic balls are not a universal substitute for steel balls, but a specialized grinding solution tailored to specific mineral characteristics and process flows. The core decision question is not whether to replace steel balls, but whether the plant’s ore, feed size, grinding stage and downstream separation requirements match ceramic media’s inherent grinding properties.
For complex polymetallic ores, simple on-site observation cannot accurately judge media compatibility. Systematic verification integrating process mineralogy testing, grinding kinetics analysis, particle size distribution detection, mineral liberation measurement and flotation indicator tracking is essential. This rigorous evaluation explains why ceramic ball application outcomes vary dramatically across different concentrators worldwide. Only through scientific pre-testing and full-process parameter adjustment can mineral processing plants select the optimal grinding media to stabilize production efficiency, reduce comprehensive costs and maximize long-term metallurgical benefits.
