To maximize the operational wear life of impact crusher wear parts, quarry operators and mining engineers must systematically align advanced alloy metallurgy—such as high-manganese steel, high-chrome cast iron, martensitic steel, and metal-matrix ceramic composites—with feed material hardness and impact energy, while implementing precise structural wear monitoring, timely blow bar rotation, and strict operating parameter controls.
Section | Summary |
Introduction and Overview | As a senior foundry metallurgist and site application engineer, I evaluate how proper material selection, rotor dynamics, and crushing mechanics drive cost efficiency and uptime in high-impact reduction environments. |
Fundamentals of Impact Crusher Wear Parts | Impact crushing relies on dynamic kinetic energy transfer via blow bars, impact aprons, and side frame liners, requiring distinct balances of mechanical toughness and surface hardness across primary and secondary crushing stages. |
Metallurgical Selection and Material Science | Matching feed characteristics to specialized alloys—such as work-hardening high-manganese steel (ZGMN13Cr2, ZGMN18Cr2), high-chrome irons, martensitic alloys, and ceramic-matrix composites—prevents catastrophic brittle fracture while minimizing abrasive wear rates. |
Key Impact Crusher Wear Parts and Their Functions | Key wear components including blow bars, breaker plates, frame side liners, and rotor protection caps perform specialized duties to maintain feed geometry, protect housing structures, and optimize aggregate gradation. |
Operational Factors Influencing Wear Life | Feed size distribution, moisture, silica/quartz content, closed-side settings, rotor tip speed, and feed rate directly dictate mechanical wear dynamics and heat generation across the impact crushing chamber. |
Maintenance Strategies for Wear Life Maximization | Implementing proactive maintenance routines—including scheduled blow bar rotations, gap calibration, thermal monitoring, dynamic balancing, and weld build-up procedures—substantially reduces downtime and cost per ton. |
Engineering Diagnostics and Wear Failure Analysis | Root-cause analysis of common wear failure modes such as gouging, fatigue spalling, casting wash, and premature cracking allows plant managers to adjust alloy chemistry and physical maintenance practices. |
European Market Preferences and Design Innovations | Modern European aggregate processing plants increasingly demand modular split-head blow bars, eco-friendly metal-ceramic composite inserts, and high-precision lost foam castings to maximize processing efficiency and safety. |
Conclusion and Best Practices | Long-term wear life optimization requires a holistic approach uniting certified metallurgical casting, tailored component selection, predictive maintenance tracking, and trusted manufacturing partnerships. |
Impact crusher wear parts are high-performance cast components engineered to absorb high-velocity impacts and severe abrasive forces inside horizontal and vertical shaft impactors, converting kinetic rotational energy into raw material reduction.
In heavy-duty crushing operations across mining, aggregate quarrying, and concrete recycling, horizontal shaft impactors (HSI) and vertical shaft impactors (VSI) rely on rapid mechanical impact rather than compressive force to fracture rock along natural cleavage lines. The incoming feed material enters the crushing chamber where it is struck by rapidly rotating blow bars mounted on a balanced rotor. The high-energy strike hurls the fractured material against adjustable impact aprons (breaker plates) and internal chamber liners for secondary and tertiary shattering before it exits through the discharge zone.
Because every impact transfers massive kinetic energy into both the ore and the machine components, these working interfaces suffer extreme mechanical stress. The primary wear mechanisms encountered in an impact crushing chamber are high-stress grinding abrasion, low-stress sliding erosion, and high-energy impact gouging. Without high-grade, precision-cast Crusher Wear Parts engineered for specific feed conditions, the rapid deterioration of internal geometry drastically lowers crushing efficiency, increases specific power consumption per ton, and leads to costly unscheduled plant shutdowns.
Understanding the interaction between physical rock mechanics and component wear is vital for process optimization. In primary crushing circuits processing large feed sizes, high impact energy dominates, requiring wear parts with exceptional fracture toughness. In secondary and tertiary circuits handling smaller, highly abrasive feeds like quartzite or granite, sliding abrasion becomes the dominant failure mechanism, shifting the metallurgical requirement toward extreme microstructural hardness.
Selecting the correct alloy chemistry requires evaluating the trade-off between impact toughness and abrasion resistance, utilizing tailored high-manganese steels, high-chrome irons, martensitic alloys, or ceramic composites.
To maximize component service life, metallurgical engineers formulate specific chemical compositions and heat treatment regimens tailored to exact operating parameters. The foundation of traditional high-impact crushing relies on Austenitic High-Manganese Steel, such as ZGMN13Cr2 and ZGMN18Cr2. High-manganese steel possesses a unique work-hardening capacity. Under repeated, high-energy impact loads, the surface austenitic matrix transforms into hard martensite, raising initial surface hardness from approximately 200–220 HB to over 500–550 HB while retaining a ductile, shatter-proof core. This makes manganese alloys the ideal choice for primary impact crushing containing uncrushable tramp iron or massive quarry feed.
For secondary and tertiary applications where impact energy is lower but silica-driven sliding abrasion is severe, High-Chromium Cast Irons (ranging from 15% to 26% Cr content) deliver far superior wear resistance. High-chrome alloys feature a microstructural matrix embedded with hard chromium carbides, achieving bulk hardness levels of 58 to 65 HRC. However, high-chrome alloys exhibit lower impact toughness than manganese steel, making them susceptible to brittle fracture if subjected to heavy impact or uncrushable metal objects.
When processing mixed materials such as asphalt, concrete recycling, or medium-hard rock with intermittent metal contamination, Martensitic Alloy Steel offers an ideal compromise. Martensitic alloys deliver initial through-hardness (48–55 HRC) combined with higher structural toughness than high-chrome iron. Modern foundries also manufacture Metal-Matrix Composite (MMC) wear parts, which combine martensitic steel or chrome iron matrices with embedded high-hardness ceramic particles (such as titanium carbide or alumina oxide) along critical wear zones, extending component service life up to 100% to 200% compared to standard alloys.
Alloy Material Grade | Typical Hardness Range | Impact Value (J/cm2) | Primary Failure Resistance | Ideal Crushing Application |
High Manganese Steel (ZGMN13Cr2) | 200–220 HB (Work-hardens to >500 HB) | ≥ 150 | Severe Impact / Fracture | Primary crushing, high-impact feed, large lump rock |
High Manganese Steel (ZGMN18Cr2) | 220–250 HB (Work-hardens to >550 HB) | ≥ 120 | High Impact & Moderate Gouging | Primary & secondary crushing of tough, medium-abrasive ore |
Martensitic Alloy Steel (Cr-Mo / Cr-Mo-V) | 48–55 HRC | ≥ 25 | Mixed Impact & Abrasion | Recycling, asphalt, medium-hard rock, tramp-iron risk |
High Chrome Cast Iron (Cr15–Cr20) | 55–60 HRC | ≥ 8 | High Sliding Abrasion | Secondary crushing, low-impact abrasive feeds |
High Chrome Cast Iron (Cr26 / BTMCR26) | 58–64 HRC | ≥ 5 | Extreme Abrasion | Tertiary fine crushing, gravel, sand, cement clinker |
Ceramic-Matrix Composite (MMC) | 60–68 HRC (Ceramic zone) | ≥ 15 | Ultra-High Combined Wear | High-abrasion rock with moderate impact loads |

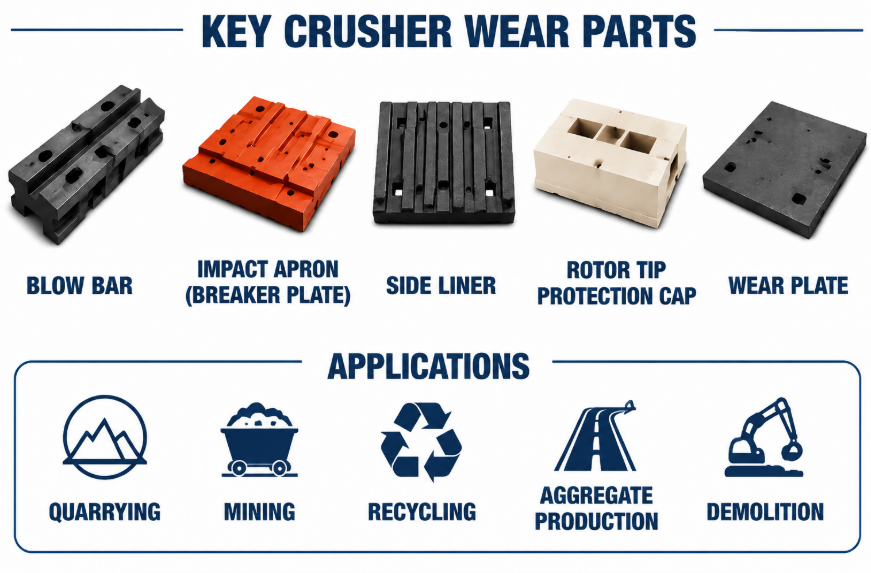

The internal wear shell of an impact crusher comprises blow bars, breaker plate liners, side frame liners, and rotor caps, each designed for specific protection duties within the reduction chamber.
Blow Bars (Hammers / Impeller Bars): Mounted directly into the rotor slots, blow bars are the primary impact elements. They deliver the high-velocity kinetic strike to incoming raw feed. As the primary wear interface, their structural geometry and material density directly influence hourly throughput capacity, energy consumption, and product particle shape.
Breaker Plate Liners (Impact Aprons / Curtain Liners): Suspended in the upper and lower zones of the crushing chamber, breaker plates absorb high-velocity impacts from rock thrown by the rotor. They define the closed-side setting and regulate secondary particle size reduction through precise gap management.
Frame Liners (Side Liners / Cheek Plates): Installed along the inner housing walls, cheek plates protect the structural frame of the crusher from erratic ricochets, fine-particle wash, and internal material turbulence.
Rotor Protection Caps and Wedge Sets: Precision-machined locking wedges and rotor protective caps secure blow bars into the rotor body, preventing rotor erosion and maintaining strict rotational balance during operation.
Component Name | Main Function | Standard Material Selection | Critical Maintenance Indicator |
Blow Bar (Impeller Bar) | Direct dynamic striking and energy transfer | High Chrome, Martensitic, MMC, Mn18Cr2 | 20%–30% weight loss, rounded striking profile, cracking |
Breaker Plate Liner | Material deflection, gap regulation | High Chrome (Secondary), High Manganese (Primary) | Deep groove formation, surface warping, uneven gaps |
Side Frame Liner | Shielding structural side casing | High Manganese Steel, Medium Alloy Steel | Thickness reduction >50%, material bypass leakage |
Rotor Protection Cap | Guarding rotor body against direct erosion | High-strength Alloy / Martensitic Steel | Fastener loosening, localized wash, mechanical distortion |
Operating Principle and Maintenance Warning: Blow Bar Rotor Lock Security: Always verify that blow bar locking wedges are torqued to factory specifications and checked with dynamic gauge bars after the first 8 hours of initial operation. Thermal expansion and high mechanical vibration can cause wedge relaxation. Loose blow bars lead to severe rotor slot deformation, catastrophic bar ejection, or irreversible rotor body destruction.
Operational wear rates are directly governed by rock petrography, feed size uniformity, moisture levels, rotor tip speed, and feed distribution across the crushing chamber.
The rate at which impact crusher parts wear is not determined solely by casting quality; operational parameters play a dominant role. Quartz and free silica content within the feedstock represents the most aggressive driver of abrasive wear. Materials with quartz contents exceeding 10% drastically accelerate microscopic cutting and scratching wear on high-chrome and martensitic surfaces. In such high-silica environments, even minor increases in rotor tip speed compound the rate of surface metal loss exponentially according to power-law kinetic dynamics.
Feed size distribution and moisture content also heavily dictate wear patterns. Oversized feed forces blow bars to perform excessive primary breaking work at the top edge, causing premature corner rounding and severe stress concentration at the blow bar mounting shoulder. Conversely, excessive fine material or high moisture in the feed causes material packing on breaker plates, leading to severe gouging wear, elevated operating temperatures, and higher energy consumption per ton produced. Maintaining a uniform, choked feed across the full width of the rotor prevents localized center-troughing wear on blow bars and ensures balanced mechanical loads.
Maximizing component longevity requires systematic blow bar rotation schedules, continuous wear-profile monitoring, precise gap adjustments, and dynamic rotor balancing.
Systematic Blow Bar Turning and Rotation: Horizontal impact crusher blow bars feature symmetrical geometries allowing them to be flipped and rotated. Implementing a scheduled rotation program before the striking face develops an excessive radius (rounding beyond 15–20 mm) restores sharp crushing edges, maintains optimal particle reduction ratios, and redistributes mechanical stress across four usable corners.
Precision Gap Calibration: Regularly inspect and calibrate the clearance gap between blow bar tips and breaker plate liners. As parts wear, this gap widens, reducing impact efficiency and increasing circulating loads. Re-adjusting hydraulic aprons to maintain correct closed-side settings preserves consistent product gradation and prevents localized material accumulation.
Dynamic Balance and Rotor Alignment: Never replace single worn blow bars in isolation. Always replace or turn blow bars as complete, weight-matched diametrical sets. Unbalanced blow bar installation introduces harmonic rotor vibration, leading to accelerated bearing wear, frame structural fatigue, and uneven liner deterioration.
Proactive Inspection and Ultrasonic Thickness Testing: Utilizing non-destructive ultrasonic thickness gauges and 3D laser scanners during scheduled maintenance shutdowns allows operators to profile wear rates accurately. Identifying localized wear trends early enables plant managers to optimize feed chute baffles before internal liners wear through to the primary frame casing.
Maintenance Task | Recommended Frequency | Operational Objective | Key Tools / Procedures |
Blow Bar Inspection & Rotation | Every 50–100 Operating Hours | Maintain sharp striking profile, balance wear across edges | Overhead crane, wedge gauge, weight-matching scale |
Apron Gap Calibration | Daily / Weekly | Restore closed-side setting, control final product sizing | Hydraulic adjustment shims, mechanical tip gauge |
Side Liner Ultrasonic Inspection | Monthly / Shutdown Cycles | Prevent structural frame wash and casing penetration | Ultrasonic thickness gauge, magnetic profile markers |
Rotor Dynamic Balancing Check | At Every Part Replacement | Prevent bearing failure and high-frequency vibration | Electronic vibration analyzer, weight-balanced bar sets |
Optimization Tip: Preventative Re-facing and Hardfacing: When utilizing martensitic or high-manganese Crusher Wear Parts in medium-impact processing, applying periodic hardfacing weld overlays (using high-chromium carbide welding wire) to high-wear edges before severe rounding occurs can extend total component service life by 30% to 50% between full casting replacements.
Systematic failure mode analysis enables plant engineers to diagnose gouging, fatigue spalling, matrix wash, and thermal cracking, guiding structural and metallurgical adjustments.
Diagnosing how a wear component fails provides valuable insight for optimizing foundry casting specifications. Premature failure of impact wear parts typically manifests in four primary modes: micro-spalling from mechanical fatigue, severe gouging from tramp iron impact, matrix wash due to micro-cutting, and brittle fracture along casting stress lines.
Fatigue spalling occurs when repeated impact forces generate subsurface micro-cracks that propagate parallel to the surface, eventually causing macro-chunks of alloy to break away. This indicates that the selected material lacks sufficient fracture toughness for the application's impact energy. Conversely, rapid linear surface abrasion—where blow bars lose mass without work-hardening—signals that the operating material is too soft or that manganese steel is failing to reach its work-hardening threshold due to insufficient impact energy.
In high-abrasion environments where feed contains fine sand or clay, matrix wash frequently damages the backing support structures of liner plates. When fine abrasive slurries or high-velocity dust bypass primary liners through unsealed bolt holes, frame erosion accelerates rapidly. Implementing high-density rubber backing seals and precision lost foam cast Crusher Wear Parts with tight dimensional tolerances eliminates installation gaps, mitigating inner frame washing and structural housing degradation.
Why do we design our wear components with reinforced internal ribs and composite inserts? From an industrial application perspective, modern B2B clients consistently prioritize operational reliability over low initial purchase costs. Our advanced engineering teams reinforce high-stress mounting bases with structural ductile matrices while embedding ultra-hard ceramic matrices along high-wear impact zones. This hybrid design ensures that even if severe tramp iron enters the chamber, the structural base absorbs the energy without catastrophic cracking, protecting the rotor core and surrounding plant infrastructure.
European quarry and recycling operators prioritize split-head modular designs, ceramic-matrix composite inserts, and high-precision casting methodologies to minimize total cost per ton.
In European aggregate processing and urban recycling markets, strict environmental regulations, high labor costs, and tight production margins drive the adoption of innovative wear part designs. European plant managers strongly prefer split-head and modular blow bar configurations over massive monolithic castings. In split-head designs, only the high-wear striking tip is detached and replaced when worn, while the structural holder remains mounted to the rotor. This design innovation reduces scrap metal weight by up to 40%, slashes crane lifting requirements, and reduces maintenance downtime during change-outs.
Furthermore, European plants processing mixed construction and demolition (C&D) waste favor metal-matrix ceramic composites (MMC) and specialized air-hardened martensitic steels. Because recycling feed often contains unpredictable steel rebar, tramp iron, and embedded concrete fixtures, traditional high-chrome irons risk catastrophic breakage, while standard manganese steel wears down too rapidly under abrasive sand conditions. Ceramic-reinforced martensitic blow bars provide the ideal balance: ceramic inserts resist sand and quartz abrasion, while the tough martensitic core safely withstands impacts from rebar without cracking.
To meet these rigorous operational standards, modern foundries utilize automated lost foam casting and vacuum-assisted molding processes. Lost foam casting eliminates traditional sand mold parting lines, casting flash, and internal gas porosities, achieving exact dimensional tolerances. For European operators utilizing automated gap setting systems, high-precision casting guarantees that replacement wear parts fit seamlessly into OEM crushers, eliminating vibration and post-installation grinding.
Optimizing impact crusher wear life demands a comprehensive engineering strategy that combines advanced metallurgy, precise application matching, proactive rotation schedules, and certified casting manufacturing.
Extending the service life of impact crusher wear components requires moving beyond basic replacement part purchasing toward comprehensive wear management. By analyzing raw feed petrography, impact energy dynamics, and specific chamber wear patterns, aggregate producers and mining operators can select the optimal alloy chemistry—whether work-hardening manganese steel, high-hardness chrome iron, resilient martensitic alloy, or advanced ceramic composites.
Systematic operational practices—such as complete set blow bar rotation, tight apron gap control, dynamic balancing, and non-destructive thickness monitoring—further safeguard equipment availability. Partnering with experienced, ISO 9001 certified foundries ensures that every cast component delivers consistent metallurgical integrity, accurate dimensional tolerances, and maximum operational return on investment.
Match Metallurgy to Feed Mechanics: Utilize high-manganese steel for heavy-impact primary reduction, high-chrome iron for secondary sliding abrasion, martensitic steel for mixed recycling, and ceramic composites for extreme quartz environments.
Implement Strict Rotation Schedules: Flip and rotate blow bars before edge rounding exceeds 15–20 mm to maintain crushing efficiency and balance wear distribution.
Always Replace in Weight-Matched Sets: Never mix new and worn blow bars on the same rotor; always install balanced sets to protect rotor bearings and shafts.
Control Feed Uniformity: Ensure choked, full-width feed distribution across the rotor to prevent center-troughing wear and uneven plate deterioration.
Monitor and Calibrate Apron Clearance: Perform daily inspections of blow bar tip-to-curtain clearances to maintain target product sizing and avoid material packing.
Enforce Precision Quality Standards: Source replacement wear parts manufactured under certified ISO 9001 and GB/T 19001 processes to ensure defect-free castings and accurate fitment.
