Ball Mills, Liners, and Grinding Balls: The Art of Synergistic Comminution

Ball Mills, Liners, and Grinding Balls: The Art of Synergistic Comminution

Ball mills: the final stages of comminution are performed in tumbling mills using steel balls as the grinding medium and so designated ball mills. Since balls have a greater surface area per unit weight than rods, they are better suited for fine finishing.

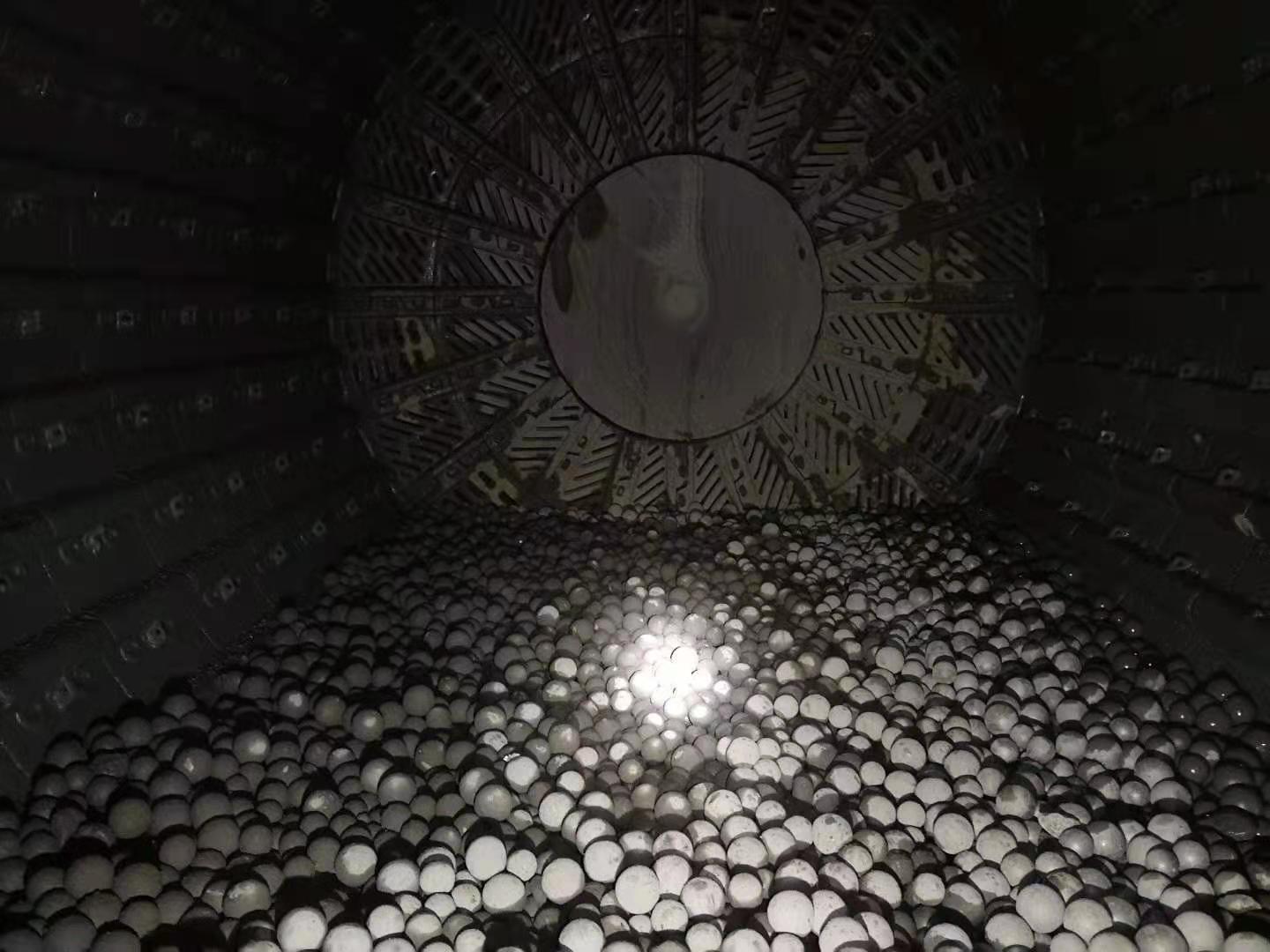

The crushing efficiency of a ball mill hinges on the intricate synergy between the liners and the grinding media. These three components form a dynamic comminution system.

Relationship: The liners serve not only to protect the mill cylinder but also, through their raised profiles, lift the balls and material, imparting sufficient potential and impact force to the balls. This is the prerequisite for effective grinding. The steel balls act as the direct working media, breaking down material through impact when they cascade down and via abrasion when they slide.

Configuration: The ratio and configuration of both are crucial.

• Grinding Ball Ratio: This involves a proportional mix of large and small balls. Large balls are primarily responsible for the impact crushing of large particles, while small balls fill the voids and handle fine grinding. A properly graded charge maximizes efficiency by balancing impact force and grinding surface area.

• Liner and Ball Pairing: The shape of the liners directly affects the lifting height and motion trajectory of the balls.      For instance, step liners with strong lifting capability are suited for larger balls to enhance impact, while wave liners are better for smaller balls performing finer grinding.

Therefore, based on the characteristics of the material, scientifically matching the liner type with the ball size distribution is key to optimizing ball mill performance and reducing energy consumption.
