Cement production demands precision and efficiency, and impact crusher wear parts play a crucial role. But what exactly are these wear parts, and why are they so important? In this post, you'll learn about their significance in the cement industry. We'll explore their functions and types, ensuring you choose the right components for optimal performance.
Impact crusher wear parts are the replaceable components inside an impact crusher that directly engage with the material being crushed. They absorb the force and abrasion during crushing, protecting the crusher’s core components. The primary wear parts include:
Blow Bars in Impact crusher wear parts: Attached to the rotor, they strike and throw material against impact plates.
Impact Plates in Impact crusher wear parts: Mounted on the crusher housing, they receive the material thrown by blow bars and cause secondary crushing.
Side Liners in Impact crusher wear parts: Protect the crusher housing sides from wear.
These parts are designed to be sacrificial, meaning they wear down over time and need replacement to keep the crusher functioning efficiently.
Wear parts play a critical role in the crushing process by:
Reducing Material Size: Blow bars strike the feed material at high speed, breaking it into smaller pieces. The material then hits the impact plates, which further fractures it.
Protecting the Crusher: By taking the brunt of abrasion and impact, wear parts shield expensive components like the rotor and housing from damage.
Ensuring Efficiency: Properly maintained wear parts maintain consistent crushing performance and product size.
Without these parts functioning correctly, the crusher would suffer rapid damage, increased downtime, and higher maintenance costs.
Wear parts vary based on material composition and design to suit different crushing needs:
Blow Bars in Impact crusher wear parts: Made from alloys such as martensitic steel, high-chromium iron, or hybrid materials with ceramic inlays. Each type balances wear resistance and impact toughness for specific applications.
Impact Plates in Impact crusher wear parts: Usually cast from high-chrome alloys to resist abrasion from material impact.
Side Liners: Designed to protect the housing and are made from durable materials capable of withstanding continuous wear.
Each wear part's design and material composition impact its lifespan and performance under different operating conditions.
Tip: Regularly inspect wear parts for uneven wear to adjust crusher settings and extend component life.
When it comes to impact crusher wear parts, quality makes all the difference. High-quality parts last longer, crush better, and save money by reducing downtime. Here are the key features to look for:
Wear resistance is the most important feature. Parts with high wear resistance resist abrasion caused by hard, rough materials like rock, concrete, or asphalt. This means they stay effective longer before needing replacement. Materials such as high-chromium iron alloys or ceramic composites provide excellent wear resistance. The harder the surface, the slower it wears down during crushing.
Wear parts must handle repeated high-energy impacts without cracking or breaking. This toughness balances hardness to resist wear and flexibility to absorb shocks. Martensitic steel is known for good impact toughness. Without this balance, parts might wear well but become brittle and fail suddenly, causing costly downtime.
Choosing the right material composition is crucial. Different alloys suit different crushing needs:
Martensitic Steel: Offers excellent impact resistance, ideal for recycling concrete and demolition waste where shock loads are common.
High-Chromium Iron: Provides superior abrasion resistance, perfect for crushing abrasive natural rock or asphalt.
Ceramic Inlays: Often combined with steel or high-chrome alloys, ceramic inlays boost wear resistance in critical areas.
Manufacturers engineer wear parts to match specific applications by adjusting alloy elements and heat treatments. This customization extends part life and improves crusher performance.
Wear parts must fit perfectly in the crusher. Precise dimensions ensure even wear, prevent damage to the crusher, and maintain consistent product size. Poorly fitting parts cause uneven wear, reduce efficiency, and increase maintenance costs.
The shape and weight of parts like blow bars influence crushing efficiency and product gradation. Well-designed blow bars maximize impact energy transfer, improving throughput and reducing fines. Manufacturers continuously innovate designs to boost crusher productivity and wear life.

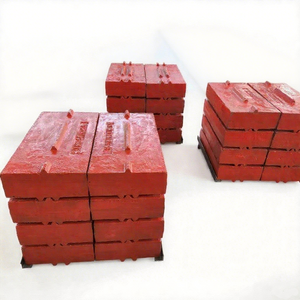

Impact crusher blow bars, also called hammers, are the key wear parts in horizontal shaft impact crushers. They strike incoming material and throw it against impact plates, causing the material to fracture. Selecting the right blow bar type is crucial for maximizing wear life and crusher efficiency. Here are the main types and their typical uses:
Martensitic blow bars are cast from martensitic steel, known for excellent impact toughness. When combined with ceramic inlays, these bars gain enhanced abrasion resistance. This hybrid design suits applications involving concrete recycling and primary crushing where shock loads and abrasive wear occur simultaneously.
Impact Resistance: High, thanks to martensitic steel.
Abrasion Resistance: Improved by ceramic inlays.
Ideal Use: Concrete demolition, recycled concrete, and primary crushing tasks.
Advantages: Good balance of toughness and wear resistance, reducing breakage risk.
High chrome blow bars are made from high-chromium iron alloys, offering superior abrasion resistance. They perform best in crushing abrasive materials such as natural rock and asphalt. However, these bars tend to be more brittle than martensitic types and can crack if they hit uncrushable contaminants like rebar or metal.
Wear Resistance: Very high due to chromium content.
Impact Toughness: Lower than martensitic bars; risk of cracking.
Ideal Use: Abrasive rock, asphalt crushing.
Limitations: Must avoid large tramp metal or oversized feed to prevent damage.
These blow bars combine high chrome alloys with ceramic inlays, further boosting wear life. They share similar brittleness to standard high chrome bars but last longer in highly abrasive environments. They are often used in secondary and tertiary crushing stages, including asphalt applications.
Wear Resistance: Excellent, ceramic inlays extend life.
Impact Toughness: Moderate; vulnerable to tramp metal.
Ideal Use: Secondary/tertiary crushing, asphalt, hard abrasive materials.
Advantages: Longer wear life than pure high chrome bars.
| Blow Bar Type | Impact Toughness | Abrasion Resistance | Typical Applications | Notes |
|---|---|---|---|---|
| Martensitic with Ceramic Inlays | High | High | Concrete recycling, primary crushing | Balanced toughness and wear resistance |
| High Chrome | Moderate | Very High | Abrasive rock, asphalt | Risk of cracking on uncrushables |
| High Chrome with Ceramic Inlays | Moderate | Very High | Secondary/tertiary crushing, asphalt | Extended wear life, brittle |
Tip: Match blow bar type to your feed material and crushing stage to balance wear life and impact resistance, avoiding costly breakage or premature wear.
The wear life of impact crusher parts depends on several key factors. Understanding these can help you optimize crusher performance and extend the lifespan of your wear parts.
Feed Size: Larger feed sizes require blow bars with higher impact resistance to break down material effectively. For example, martensitic blow bars with ceramic inlays handle bigger, tougher feed well.
Abrasiveness: Materials like quartzite, sandstone, and asphalt are highly abrasive. They cause faster wear on parts. High-chrome alloys or ceramic inlays provide better resistance here.
Fines Content: Excess fines act like sandpaper inside the crusher, accelerating wear. Managing fines before crushing helps protect parts.
Moisture Level: Wet materials increase wear due to slurry-like conditions. Using water to control dust is helpful but excessive moisture raises wear rates.
Crusher Geometry and Closed Side Setting (CSS): Proper settings ensure even wear and efficient crushing. Incorrect CSS leads to uneven wear, reducing part life.
Rotor Speed: Faster rotor speed increases impact frequency, causing more wear but producing finer material. Slower speeds reduce wear but may leave oversized material.
| Rotor Speed | Wear Level | Fines Produced | Oversize Material |
|---|---|---|---|
| Low | Less | Less | More |
| High | More | More | Less |
Number and Type of Blow Bars: For example, running four tall blow bars suits tertiary crushing with small feed, while two tall and two short bars work better for mixed feed sizes.
Fines Management: High fines content inside the crusher is like constant sandblasting. Use pre-screening or scalping screens to remove fines before crushing.
Rock-on-Rock Crushing: Achieving rock-on-rock impact extends wear life. Maintain steady, even feed flow and an even feed pad to avoid uneven hammer wear.
Material Preparation: Removing tramp metal and uncrushables like rebar reduces risk of breakage and excessive wear. Sorting feed piles before crushing is highly beneficial.
Feeding Method: Using an excavator to feed material evenly reduces side wear on blow bars.
By controlling these factors, you can significantly increase your wear parts’ service life and reduce maintenance costs.
Impact crusher wear parts must match the material you process. One size does not fit all. Custom solutions improve wear life, reduce costs, and boost crusher efficiency.
Materials like sandstone, quartzite, or hard rock wear parts quickly. For these, parts made from high-chromium iron alloys work best. These alloys resist abrasion well, extending the life of blow bars and liners.
Material: High-chromium iron with ceramic inlays.
Benefits: Exceptional wear resistance.
Applications: Mining hard rock, quarrying sandstone, asphalt crushing.
Considerations: These parts can be brittle, so avoid tramp metal.
Recycling concrete, demolition waste, or other mixed materials demands toughness. Martensitic steel blow bars absorb shocks from uncrushable debris like rebar or metal fragments.
Material: Martensitic steel with or without ceramic inlays.
Benefits: High impact toughness prevents cracking.
Applications: Concrete recycling, demolition sites, primary crushing.
Considerations: Slightly less abrasion resistance than high chrome but much tougher.
If feed material varies or includes a mix of abrasive and impact-heavy components, a balanced solution is best. Hybrid alloys or custom blends combine wear resistance and toughness.
Material: High chrome-martensitic hybrids or ceramic-reinforced alloys.
Benefits: Good balance of durability and impact strength.
Applications: Mixed aggregate, general construction waste.
Considerations: Tailored design based on your feed and output needs.
Custom manufacturing lets you describe your feed size, abrasiveness, moisture, and production goals. Experts then engineer blow bars and liners optimized for your crusher and application.
Example: A plant crushing quartzite with occasional concrete debris might choose a high chrome blow bar with ceramic inlays for abrasion resistance plus martensitic liners for shock absorption.
Selecting the right supplier for impact crusher wear parts is a critical decision. It affects your crusher’s performance, maintenance costs, and overall operation efficiency. Here’s what to look for when choosing a supplier:
A reputable supplier brings years of industry experience and a deep understanding of crusher wear parts. They know how to design and manufacture parts that last longer and perform better. Look for suppliers who:
Have a strong track record in the cement or aggregate industries.
Use advanced metallurgy and manufacturing processes.
Conduct rigorous quality control testing.
Offer parts compatible with major crusher brands like Sandvik, Metso, or Kleemann.
Quality parts reduce downtime and maintenance costs. They fit perfectly, resist wear, and withstand impact. Suppliers with proven expertise can also advise on the best wear parts for your specific materials and crushing conditions.
Every crushing operation has unique needs. A good supplier offers a wide range of wear parts, including blow bars, impact plates, and side liners. More importantly, they provide customization options such as:
Different alloy compositions (martensitic steel, high chrome, ceramic inlays).
Tailored designs for specific feed materials and crusher models.
Sizes and shapes to optimize crusher performance and wear life.
Customization ensures you get wear parts that match your feed size, abrasiveness, moisture, and production goals. This tailored approach maximizes efficiency and minimizes part replacement frequency.
Price is always a consideration, but it should never come at the expense of quality. The right supplier balances cost and value by:
Offering competitive prices on high-quality parts.
Helping you reduce overall cost per ton crushed through longer wear life.
Minimizing downtime by providing reliable parts and fast delivery.
Supporting you with technical expertise to optimize crusher operation.
Superior value means you pay less over time, not just upfront. Investing in quality parts and a trusted supplier pays off through improved productivity and lower maintenance expenses.
Tip: Choose a supplier who offers technical support and customization to get wear parts tailored to your crusher and material, ensuring maximum lifespan and performance.
Impact crusher wear parts are essential for efficient crushing, reducing material size, and protecting crusher components. Key parts include blow bars, impact plates, and side liners. High-quality wear parts offer high wear resistance, impact toughness, and precise engineering. Choosing the right material and design for specific applications extends wear life. For optimal crusher performance, select a reputable supplier like HUIHE that provides customized solutions and superior value, ensuring long-lasting and efficient crusher operations.
A: Impact Crusher Wear Parts are replaceable components inside an impact crusher that engage with the material being crushed, including blow bars, impact plates, and side liners.
A: Properly maintained Impact Crusher Wear Parts ensure consistent crushing performance, protect core components, and reduce downtime, enhancing overall efficiency.
A: Material composition affects the wear resistance and impact toughness of Impact Crusher Wear Parts, influencing their lifespan and performance under different conditions.
A: The cost of Impact Crusher Wear Parts varies based on material type, customization, and supplier, but investing in high-quality parts reduces long-term maintenance expenses.
A: Regularly inspect wear parts for uneven wear, adjust crusher settings as needed, and ensure proper feed material management to troubleshoot and extend their lifespan.
