Ever wondered what keeps jaw crushers efficient and long-lasting? The secret lies in their wear parts. Understanding these vital components is crucial for maintaining optimal performance and preventing costly downtime. In this post, you'll learn about the key elements of jaw crusher wear parts, their functions, and how they enhance crusher efficiency. We'll also explore common issues, maintenance tips, and the latest innovations in wear part technology.
Understanding the key parts of jaw crusher wear parts helps you keep the machine running smoothly and efficiently. Each part plays a specific role in crushing materials like rocks, ore, or concrete. Here's a breakdown of the main components you’ll find in a jaw crusher:

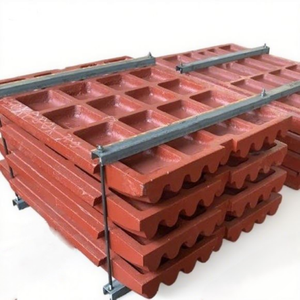

The jaw plates are the heart of the crusher. There are two types:
Fixed Jaw Plate: This plate stays still and forms one side of the crushing chamber.
Moving Jaw Plate: This plate moves back and forth against the fixed plate, crushing material between them.
Both plates are usually made from high-manganese steel, which resists wear and tear. The moving jaw plate’s motion crushes the material by squeezing it against the fixed plate. Over time, these plates wear down and need replacement to maintain crushing efficiency.
The eccentric shaft drives the moving jaw’s motion. Connected to the flywheel, it converts rotary motion into the oscillating movement of the moving jaw. This shaft must be strong and well-lubricated to handle the stress and avoid wear. It’s typically made from alloy steel for durability.
Toggle plates connect the moving jaw to the eccentric shaft. They serve two main purposes:
Transmit crushing force.
Act as a safety device by breaking or releasing when the crusher faces an uncrushable object, protecting other parts from damage.
They also help adjust the discharge opening, controlling the size of crushed material leaving the crusher.
Bearings support the eccentric shaft and pitman assembly, enabling smooth rotation and reducing friction. They are critical for the crusher’s smooth operation and longevity. Poor lubrication or overload can cause bearing failure, leading to downtime.
The pitman connects the eccentric shaft to the moving jaw. It transmits the shaft’s motion to the jaw, causing it to move and crush material. The pitman must be robust to handle the forces during crushing. Its proper function is essential for efficient crushing.
Frame: The frame forms the crusher’s structural backbone. Made from high-strength steel, it supports all components and absorbs crushing forces.
Flywheel: The flywheel stores energy from the motor and releases it during the crushing stroke. This balances the motion, reduces energy consumption, and stabilizes the crusher’s operation.
Together, the frame and flywheel ensure the crusher runs steadily and handles heavy loads.
Jaw plates are the main crushing surfaces in a jaw crusher. The moving jaw plate moves back and forth, pressing material against the fixed jaw plate. This action crushes the material by compressing it into smaller pieces. The plates must resist abrasion and impact since they bear the brunt of the crushing force. When jaw plates wear down, crushing efficiency drops, causing uneven product size and reduced output. Replacing worn plates keeps the crusher working effectively.
The eccentric shaft is the engine behind the moving jaw’s motion. It converts rotary motion from the flywheel into the oscillating movement needed for crushing. This shaft handles heavy loads and must be strong and well-lubricated to avoid wear or failure. If the shaft seizes or misaligns, the jaw stops moving properly, halting the crushing process. Proper maintenance of the eccentric shaft ensures smooth, continuous operation.
Toggle plates have a dual role. They transfer the crushing force from the eccentric shaft to the moving jaw. They also act as a safety mechanism. If uncrushable material enters the crusher, toggle plates can break or release, preventing damage to more critical parts. Additionally, toggle plates help adjust the crusher’s discharge opening, controlling the size of crushed material exiting the machine. This adjustment is vital for meeting specific output requirements.
Bearings support rotating parts like the eccentric shaft and pitman assembly. They reduce friction and enable smooth motion. Without properly functioning bearings, the crusher would experience excessive wear, overheating, and potentially catastrophic failure. Bearings need regular lubrication and inspection. Overloaded or poorly lubricated bearings wear out quickly, causing costly downtime. High-quality bearings extend the crusher’s service life and maintain steady performance.
Choosing the right materials for jaw crusher wear parts is crucial. These parts face constant impact, friction, and pressure during operation. Using durable materials ensures longer service life and better performance.
Jaw plates are the main crushing surfaces. They endure heavy abrasion and impact, so they must be tough and wear-resistant. High-manganese steel is the top choice here. It contains about 12-14% manganese, which gives it excellent hardness and toughness.
This steel type hardens under impact, making it ideal for jaw plates. It resists cracking and wear, extending the time between replacements. Some manufacturers use variations like Hadfield steel or proprietary manganese alloys to improve durability further.
The eccentric shaft drives the moving jaw’s motion. It must handle high stress and bending forces. Alloy steel is commonly used for this shaft because of its high tensile strength and toughness.
Bearings support rotating parts like the eccentric shaft and pitman. They must reduce friction and carry heavy loads. Bearings are often made from alloy steel or similar high-strength materials to withstand wear and heat.
Proper material choice for these parts ensures smooth operation and reduces the risk of failure under heavy loads.
The pitman transmits motion from the eccentric shaft to the moving jaw. It needs to be strong and resilient. Cast steel or forged steel is typically used here for strength and durability.
The crusher frame supports all components and absorbs crushing forces. Frames are made from high-strength steel or cast iron. These materials provide structural integrity and resist deformation during operation.
Using quality materials in the pitman and frame prevents premature wear and maintains crusher stability.
Tip: Selecting wear parts made from high-quality manganese and alloy steels significantly improves jaw crusher lifespan and reduces downtime caused by part failure.
Jaw crushers are tough machines, but their wear parts face many challenges during operation. Knowing common problems helps you spot issues early and avoid costly downtime. Here are the main issues that affect jaw crusher wear parts:
Jaw plates take the brunt of crushing force. Over time, the fixed and moving jaw plates wear down from constant impact and abrasion. This wear is usually worst in the middle and lower parts of the plates where crushing pressure is highest. Worn plates reduce crushing efficiency, cause uneven product size, and increase power consumption. If plates get too thin or cracked, they risk breaking, which can damage other parts.
To extend plate life, manufacturers use high-manganese steel or similar tough materials. Some designs allow you to flip plates to use both sides before replacement. However, regular inspection and timely replacement are essential to keep the crusher running well.
The eccentric shaft drives the moving jaw's motion. Misalignment happens when the shaft shifts from its proper position due to wear, poor installation, or bearing failure. This misalignment causes uneven jaw movement, increased vibration, and stress on connected parts. If unchecked, it can lead to shaft bending or breakage, halting the crusher.
Maintaining proper lubrication and checking shaft alignment during routine maintenance prevents this problem. Also, ensuring bearings are in good condition supports correct shaft positioning.
Bearings support rotating parts like the eccentric shaft and pitman. They reduce friction and allow smooth motion. Bearings wear out due to high loads, poor lubrication, contamination, or misalignment. When bearings fail, they cause overheating, noise, and can seize, stopping the crusher.
Regular lubrication using the correct grease type and schedule is critical. Inspect bearings for wear or damage and replace them before failure. Using high-quality bearings designed for heavy loads extends service life.
Vibration is natural in crushers but excessive vibration signals trouble. Causes include:
Loose or damaged flywheels
Incorrect flywheel alignment
Worn or loose jaw plates
Eccentric shaft issues
Improper counterweight installation
Operating at wrong speeds
Excessive vibration leads to faster wear, structural damage, and operator discomfort. To fix it, tighten flywheels and bolts, realign components, replace worn parts, and operate at recommended speeds.
Maintaining jaw crusher wear parts is key to keeping your crusher running smoothly and avoiding costly downtime. Proper care helps extend the life of components and ensures efficient crushing. Here are essential maintenance tips to follow:
Frequent inspections help catch wear or damage early. Check jaw plates, toggle plates, bearings, and the eccentric shaft for cracks, excessive wear, or misalignment. Replace jaw plates as soon as they show signs of thinning or cracking to maintain crushing efficiency. Toggle plates should be examined for wear or deformation and replaced if damaged. Bearings need visual inspection for signs of overheating or wear. Timely replacement prevents breakdowns and costly repairs.
Lubrication is vital for moving parts like bearings, the eccentric shaft, and toggle seats. Use the manufacturer’s recommended grease or oil and follow the lubrication schedule strictly. Over-lubrication can cause seals to fail, while under-lubrication leads to friction and overheating. Clean grease fittings before applying lubricant to avoid contamination. Proper lubrication reduces wear, prevents overheating, and ensures smooth operation.
Keep an eye on the crusher’s discharge opening. Changes in discharge size can indicate worn jaw plates or toggle plates, affecting product size and crushing efficiency. Adjust the toggle plate or jaw plate settings as needed to maintain the desired output size. Regular monitoring helps optimize crusher performance and prevents overloading.
Jaw crushers require periodic adjustments to maintain peak performance. Tighten loose bolts and check the alignment of the eccentric shaft and jaw plates. Adjust tension springs and toggle plates to ensure the moving jaw operates smoothly and safely. Proper adjustment reduces vibration, prevents premature wear, and improves crushing output.
Tip: Establish a scheduled maintenance program including inspections, lubrication, and adjustments to maximize jaw crusher wear part lifespan and minimize downtime.
Jaw crusher wear parts have come a long way, thanks to ongoing innovations and upgrades. These improvements aim to boost durability, efficiency, and overall performance while reducing downtime and operational costs. Let’s explore some of the key advancements transforming jaw crusher wear parts today.
One major innovation is the use of advanced wear-resistant coatings on jaw plates and other critical parts. These coatings enhance surface hardness and reduce abrasion, extending the life of wear parts significantly. Common coating materials include tungsten carbide, chromium carbide, and ceramic composites.
Applying such coatings can cut maintenance frequency and lower replacement costs. For example, a manganese steel jaw plate coated with tungsten carbide can last up to 30% longer than an uncoated one under similar working conditions. These coatings also improve resistance to corrosion and impact, making crushers more reliable in harsh environments.
Modern jaw crushers are increasingly incorporating smart technology to optimize wear part performance and maintenance. Sensors and IoT devices monitor parameters like temperature, vibration, and wear levels in real time. This data helps predict wear part failure before it happens, allowing for proactive maintenance.
Smart systems can alert operators when jaw plates or bearings need replacement, minimizing unexpected downtime. Some crushers even adjust operating settings automatically based on wear data to maintain optimal crushing efficiency. This technology not only improves safety but also reduces operational costs by maximizing wear part lifespan.
Energy efficiency is another focus area in jaw crusher wear part upgrades. New designs aim to reduce power consumption without sacrificing crushing capacity. For instance, optimized jaw plate profiles improve material flow and reduce unnecessary friction.
Flywheels and eccentric shafts are being engineered for better energy storage and transfer, smoothing out crushing cycles. Lightweight yet durable materials help reduce the overall machine weight, further lowering energy use. These design improvements contribute to greener operations and lower total cost of ownership.
Tip: When upgrading your jaw crusher wear parts, consider solutions with wear-resistant coatings and smart monitoring features to enhance durability and reduce maintenance costs.
Jaw crusher wear parts, including jaw plates, eccentric shafts, toggle plates, bearings, and frames, are crucial for efficient crushing. Regular maintenance ensures longevity and optimal performance, preventing unexpected failures. Future trends focus on wear-resistant coatings, smart technology integration, and energy-efficient designs. These advancements enhance durability and reduce operational costs. HUIHE offers high-quality jaw crusher wear parts that provide exceptional value, ensuring reliable performance and extended service life.
A: Jaw Crusher Wear Parts are components designed to withstand the impact and abrasion involved in crushing materials. They include jaw plates, eccentric shafts, toggle plates, bearings, pitman assemblies, and frames.
A: Jaw Crusher Wear Parts function by crushing materials between moving and fixed jaw plates, driven by the eccentric shaft. Toggle plates transfer forces and act as safety devices, while bearings ensure smooth operation.
A: High-manganese steel jaw plates are preferred for their toughness and wear resistance, which extend the crusher's lifespan and maintain efficiency under heavy abrasion and impact.
A: Common issues include wear and tear of jaw plates, eccentric shaft misalignment, bearing failures, and excessive vibration, leading to reduced efficiency and potential breakdowns.
A: Regular inspections, proper lubrication, monitoring discharge size, and routine adjustments are essential for maintaining Jaw Crusher Wear Parts and maximizing their lifespan.
