Ever wondered what makes cement ball mills tick? These massive machines grind materials into fine powder, but without mill liners, they'd wear out fast. Mill liners are crucial in protecting the mill's shell and enhancing grinding efficiency. In this post, you'll learn about the role of mill liners in cement ball mills and why understanding them is important for optimal performance and cost savings.
Mill liners are protective layers installed inside cement ball mills. They prevent the mill shell from damage caused by the constant impact and abrasion of grinding media and materials. Besides protection, mill liners help improve grinding efficiency by influencing the movement of grinding media inside the mill. They also reduce noise and vibration during operation, contributing to a safer and quieter work environment.

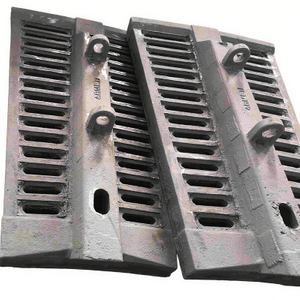

Mill liners come in various materials, each tailored for specific grinding conditions:
High Manganese Steel Mill Liners : Known for excellent impact resistance and durability, ideal for heavy-duty grinding of abrasive materials.
Rubber Mill Liners: Offers shock absorption and noise reduction, suitable for mills handling softer materials or where noise control is critical.
Composite Materials of Mill Liners: Combine metal and rubber properties to balance wear resistance and energy efficiency.
Material choice depends on factors like the hardness of the material being ground, mill speed, and desired liner lifespan.
Several types of mill liners exist, designed to optimize grinding performance and protect the mill:
Wave Mill Liners: Feature a wavy profile to promote cascading motion of grinding media, enhancing grinding efficiency.
Step Mill Liners: Have a stepped design that facilitates smooth media motion, reducing wear and improving output.

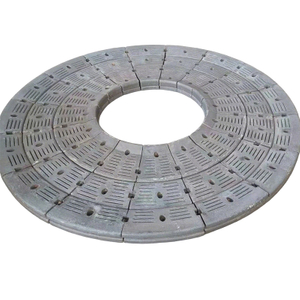

Segmented Mill Liners: Made of multiple pieces, allowing easier replacement and customization to specific grinding requirements.
Flat-Bottom Mill Liners: Provide a smooth surface for fine grinding applications.
Ribbed or Small Ribbed Liners: Incorporate ribs to lift grinding media, increasing grinding impact, often used in coal milling.
Selecting the right liner type depends on the mill’s operational parameters and the nature of the material processed.
Mill liners serve as the first line of defense for cement ball mills. Inside the mill, grinding media like steel balls continuously collide with the materials being processed. Without liners, the mill shell would suffer constant damage from these impacts and abrasive forces. Liners absorb this wear, protecting the structural integrity of the mill and preventing costly repairs or downtime. Over time, liners wear out but are much easier and cheaper to replace than the mill shell itself.
Mill liners do more than just protect; they actively improve grinding efficiency. Their design influences how grinding media move inside the mill. For example, liners with specific profiles—like wave or step liners—help lift and cascade the grinding balls, increasing the impact force applied to the material. This optimized movement helps break down particles more effectively, boosting throughput and producing a finer, more consistent product. Choosing the right liner type and material can lead to significant gains in productivity and energy savings.
Operating a cement ball mill can be noisy due to the constant collisions inside the mill. Mill liners, especially those made from rubber or composite materials, help reduce noise levels. By absorbing vibrations and cushioning impacts, these liners create a quieter work environment. This noise reduction not only improves worker comfort but also aligns with safety regulations and reduces the risk of hearing damage in industrial settings.

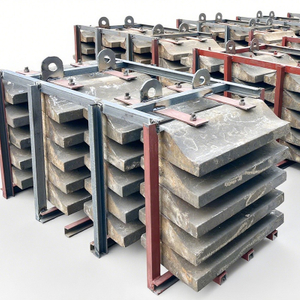

High manganese steel liners stand out for their exceptional durability and impact resistance. They are the go-to choice for heavy-duty cement ball mills processing abrasive or hard materials. This steel type work-hardens during operation, which means it becomes tougher as it wears, extending liner life. Its toughness helps absorb the constant impact from grinding media, reducing the risk of cracks and breakage. These liners are usually designed in wave or step profiles to promote efficient grinding by lifting the balls effectively.
Rubber liners are gaining popularity due to their noise reduction and shock absorption qualities. They suit mills processing softer materials or where quieter operation is essential. Rubber liners reduce vibration, protecting the mill structure and improving operator comfort. They also lower the mill’s energy consumption slightly by reducing friction. However, rubber liners wear faster than steel, so they’re best for mills with lower abrasive loads or where frequent liner changes are manageable.
Composite liners combine metal and rubber components to balance wear resistance and energy efficiency. They provide the toughness of steel with the cushioning of rubber, reducing noise and vibration while maintaining durability. These liners are versatile and fit various mill sizes and grinding conditions. Their modular design allows easier maintenance and replacement of worn sections, minimizing downtime. Composite liners often improve grinding efficiency by optimizing the motion of grinding media.
Selecting the ideal liner depends on several factors:
Material Hardness: Harder materials require durable liners like high manganese steel.
Mill Speed and Load: Higher speeds and loads benefit from liners that can withstand intense impact.
Noise Concerns: Rubber or composite liners help reduce noise in sensitive environments.
Maintenance Schedule: Frequent liner replacement favors easier-to-install types like segmented or composite liners.
Cost Considerations: Initial cost versus long-term benefits such as energy savings and liner lifespan.
Consulting with liner manufacturers or experts can help tailor liner choice to your mill’s specific needs, ensuring optimal protection and grinding performance.
Tip: Regularly assess your mill’s operating conditions and material characteristics to select liners that maximize lifespan and grinding efficiency, reducing costly downtime.
Replacing mill liners at the right time is crucial to avoid unexpected downtime and costly repairs. Liners wear gradually due to constant impact and abrasion inside the mill. Monitoring wear indicators helps decide when to replace them. Common signs include:
Visible thinning or cracking on liner surfaces.
Uneven wear patterns that affect grinding efficiency.
Decreased grinding output or inconsistent product quality.
Increased vibration or noise during operation.
Regular inspections, including visual checks and non-destructive testing (like ultrasonic thickness measurements), help detect wear before it becomes critical. Scheduling liner replacement during planned maintenance can minimize production disruption.
Choosing the right liner material impacts durability, grinding efficiency, and operational costs. Consider these factors:
Material hardness and abrasiveness: Hard, abrasive materials require tougher liners like high manganese steel.
Mill speed and load: Higher speeds and heavier loads demand liners with excellent impact resistance.
Noise and vibration control: Rubber or composite liners help reduce noise and cushion impacts.
Corrosion resistance: Some materials may need liners resistant to chemical wear depending on the feed material.
Selecting a liner material tailored to your mill’s specific operating conditions extends liner life and improves grinding performance.
Mill liner design influences grinding media motion, wear distribution, and ease of maintenance. Key design considerations include:
Profile shape: Wave or step liners promote effective grinding by lifting balls properly.
Segmentation: Segmented liners allow easier replacement of worn parts without removing the entire liner.
Thickness and weight: Must balance protection with mill load limits.
Customization: Liners can be tailored to specific mill sizes, grinding requirements, and material characteristics.
Collaborating with experienced liner manufacturers ensures you get designs optimized for your mill’s operation, helping reduce energy consumption and maintenance costs.
Mill speed plays a crucial role in the wear rate of liners inside cement ball mills. If the speed is too low, grinding media won't lift properly, causing inefficient grinding and uneven liner wear. Conversely, excessive speed results in grinding media sticking to the mill walls, creating a centrifuge effect that reduces impact forces and increases liner abrasion.
Maintaining an optimal speed—usually around 65-75% of the mill's critical speed—ensures grinding media cascade effectively, maximizing impact and minimizing liner wear. Operators should monitor mill speed closely and adjust as needed to maintain peak grinding performance and extend liner life.
The load inside the mill, including grinding media and material, directly affects liner wear. Overloading increases internal pressure and friction, accelerating liner deterioration. Underloading, however, leads to inefficient grinding and uneven wear patterns.
Balancing the load means maintaining the right amount of grinding media and feed material to promote uniform grinding and liner protection. Regularly checking load levels helps prevent excessive wear and reduces energy consumption. Using automated monitoring systems can provide real-time data to optimize load balance and avoid unexpected liner failures.
Both mill speed and load influence grinding efficiency and liner wear simultaneously. When speed and load are optimized, grinding media impact the material effectively, producing finer particles faster. This reduces the grinding time and energy consumption.
Poorly managed speed or load causes uneven wear on liners, decreasing their lifespan and increasing maintenance costs. Additionally, inefficient grinding leads to inconsistent product quality, which can affect downstream processes.
Properly balancing these factors not only protects liners but also enhances overall mill productivity and energy efficiency.
Choosing mill liners involves weighing upfront expenses against future savings. High-quality liners, such as those made from high manganese steel or advanced composites, often cost more initially. However, their durability reduces the frequency of replacements and downtime, saving money over time. Cheaper liners might seem attractive but could wear out faster, leading to more frequent maintenance and production interruptions.
Investing in the right liners means fewer unplanned shutdowns and lower repair costs. For example, a liner with a longer lifespan can reduce labor costs for replacement and minimize mill downtime, which directly impacts productivity. Over the long haul, the total cost of ownership often favors premium liners despite their higher initial price.
Mill liners influence the energy consumption of cement ball mills. Liners designed to optimize grinding media motion enhance grinding efficiency, reducing the energy needed for the same output. For instance, wave or step liners help lift and cascade grinding balls effectively, increasing impact force and improving material breakage.
Rubber and composite liners also contribute by reducing friction and vibration inside the mill. Less friction means the mill motor works less hard, saving energy. Over time, these energy savings add up, lowering operational costs and reducing the plant’s carbon footprint.
Choosing a reliable supplier is key for securing high-performance mill liners and ongoing support. Reputable suppliers provide not only quality products but also expert guidance on liner selection, installation, and maintenance. They can customize liners to match specific mill conditions, enhancing performance and lifespan.
Good suppliers often offer after-sales services such as wear analysis, technical support, and training, helping plants optimize liner use and plan timely replacements. This partnership reduces risks of liner failure and maximizes mill uptime.
Tip: Invest in high-quality liners and trusted suppliers to balance upfront costs with long-term savings, energy efficiency, and reliable support for your cement ball mill operations.
Mill liners play a crucial role in cement ball mills, offering protection against wear, enhancing grinding efficiency, and reducing noise. Choosing the right material and design optimizes performance and lowers operational costs. As technology advances, future trends may include more durable and energy-efficient liners. Companies like HUIHE provide high-quality mill liners, ensuring long-term savings and reliable support, making them an invaluable partner in optimizing cement ball mill operations.
A: Mill liners are protective layers inside cement ball mills, crucial for preventing damage to the mill shell from grinding media. They enhance grinding efficiency and reduce noise and vibration, contributing to a safer work environment.
A: Mill liners influence the movement of grinding media, optimizing impact force and material breakdown. Profiles like wave or step liners lift and cascade grinding balls, boosting throughput and producing a finer product.
A: Mill liners are made from high manganese steel, rubber, and composite materials. Each offers specific benefits like impact resistance, noise reduction, and energy efficiency, tailored to grinding conditions.
A: Mill liners should be replaced based on wear indicators like visible thinning or cracking, decreased grinding output, and increased noise. Regular inspections help plan timely replacements during maintenance.
A: Yes, rubber liners are excellent for noise reduction and shock absorption. They suit mills processing softer materials or where quieter operation is essential, though they wear faster than steel liners.
